Overview

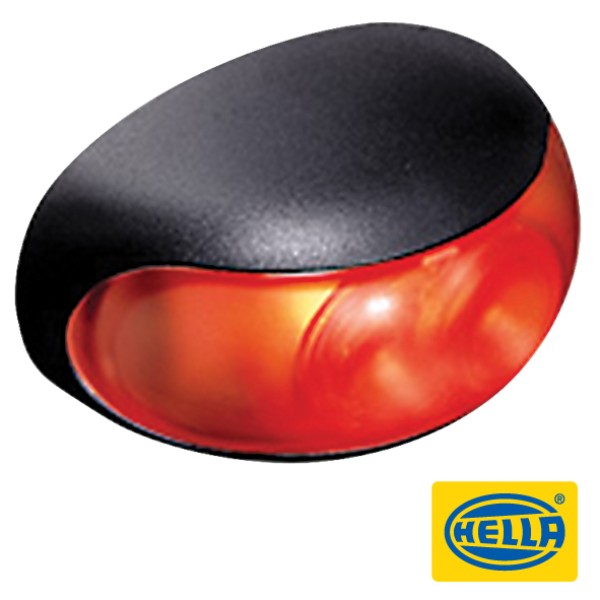

Hella DuraLED rear position lamp gives trailers and truck bodies a compact red LED marker for rear position or rear end outline lighting. It suits 12V and 24V electrical systems where a sealed surface mount lamp needs low current draw, clear rear identification and tough exterior protection.

Features

• Red LED rear position or rear end outline lamp for trailer and vehicle lighting.
• Multivolt operation supports 12V and 24V systems.
• Curved compact body helps reduce tie-down catch points and stone impact exposure.
• Sealed to IP6K6 and IP6K7, with reverse polarity protection.

Specifications and Materials

Product type: DuraLED rear position and rear end outline lamp.

Lens material: Grilamid.

Housing material: nylon.

Mounting: surface mount, suitable for horizontal mounting.

Voltage: Multivolt for 12V and 24V systems.

Power consumption: less than 1W.

Compliance: ADR 49/00.

Part number: 2307Bulk.

Use the Hella DuraLED rear position and end outline lamp technical page for lamp specifications and installation details

Compatibility and Fitment

Match this lamp to the vehicle voltage, rear lamp function and mounting position before ordering. Also check the cable entry path and mounting face, because the lamp needs a flat surface and clear rear visibility for the required position or outline function.

For installation, mount the housing securely, protect the wiring connection and confirm polarity before final testing. Then test the Hella DuraLED rear position lamp through the rear position or outline circuit before returning the trailer to service.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2XA 959 560-477, 2XA959560477, ELH2307BULK

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Disconnect power before fitting or rewiring the lamp. After installation, inspect the cable entry, seal the electrical joins, protect the circuit with the correct fuse and confirm the lamp remains visible from the required viewing angles.

Trailer Applications

Trailers, truck bodies and commercial vehicle fit-outs use the Hella DuraLED rear position lamp for red rear position or rear end outline lighting. Because the optic appears clear until illuminated, it suits clean lighting layouts where the lens should stay discreet during the day.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
