Description

Overview

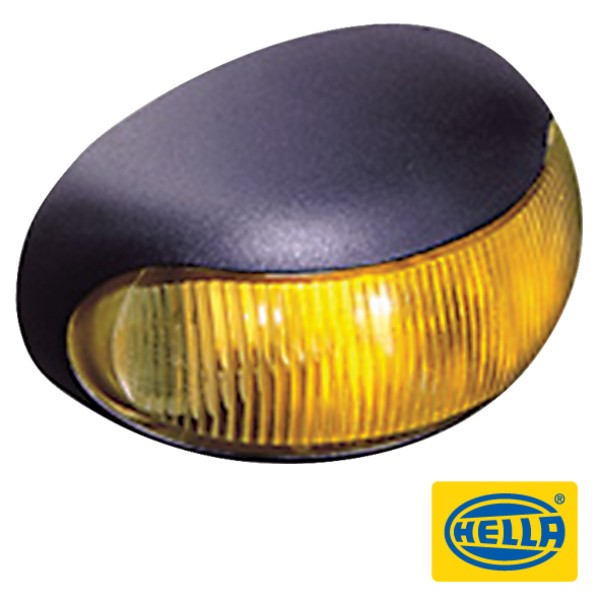

Hella DuraLED cab marker lamp gives trailers and truck bodies a compact amber LED lamp for cab marker or supplementary side direction indicator functions. It suits 12V and 24V electrical systems where a sealed surface mount lamp needs low current draw, clear amber output and exterior protection.

Features

• Amber LED cab marker or supplementary side direction indicator lamp.
• Multivolt operation supports 12V and 24V systems.
• Curved compact body helps reduce tie-down catch points and stone impact exposure.
• Sealed to IP6K6 and IP6K7, with reverse polarity protection.

Specifications and Materials

Product type: DuraLED cab marker and supplementary side direction indicator lamp.

Lens material: acrylic.

Mounting: surface mount.

Voltage: Multivolt for 12V and 24V systems.

Power consumption: less than 1W.

Cable length: pre-wired with 0.5m sheathed multi-core cable.

Compliance: ADR 6/00 Cat 5 and ADR 45/01.

Part number: 2026Bulk.

Use the Hella DuraLED cab marker and supplementary side indicator technical page for lamp specifications and installation details

Compatibility and Fitment

Match this lamp to the vehicle voltage, indicator function and mounting position before ordering. Also check the cable route and mounting face, because the lamp needs secure surface mounting and clear side visibility for the required function.

For installation, mount the housing firmly, protect the wiring joins and confirm polarity before final testing. Then test the Hella DuraLED cab marker lamp through the marker or supplementary side indicator circuit before the trailer returns to service.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2026, 2BP 959 660-301, 2BP959660301, ELH2026

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Disconnect power before fitting or rewiring the lamp. After installation, inspect the cable entry, seal the electrical joins, protect the circuit with the correct fuse and confirm the lamp remains visible from the required viewing angles.

Trailer Applications

Trailers, truck bodies and commercial vehicle fit-outs use the Hella DuraLED cab marker lamp for amber cab marker or supplementary side direction indicator lighting. Because the optic appears clear until illuminated, it suits clean lighting layouts where the lens should stay discreet during the day.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match marker lamps, side indicators and wiring accessories to the lighting layout already fitted to the trailer or truck body. See more parts in ICS Trailers LED lights
