Description

Overview

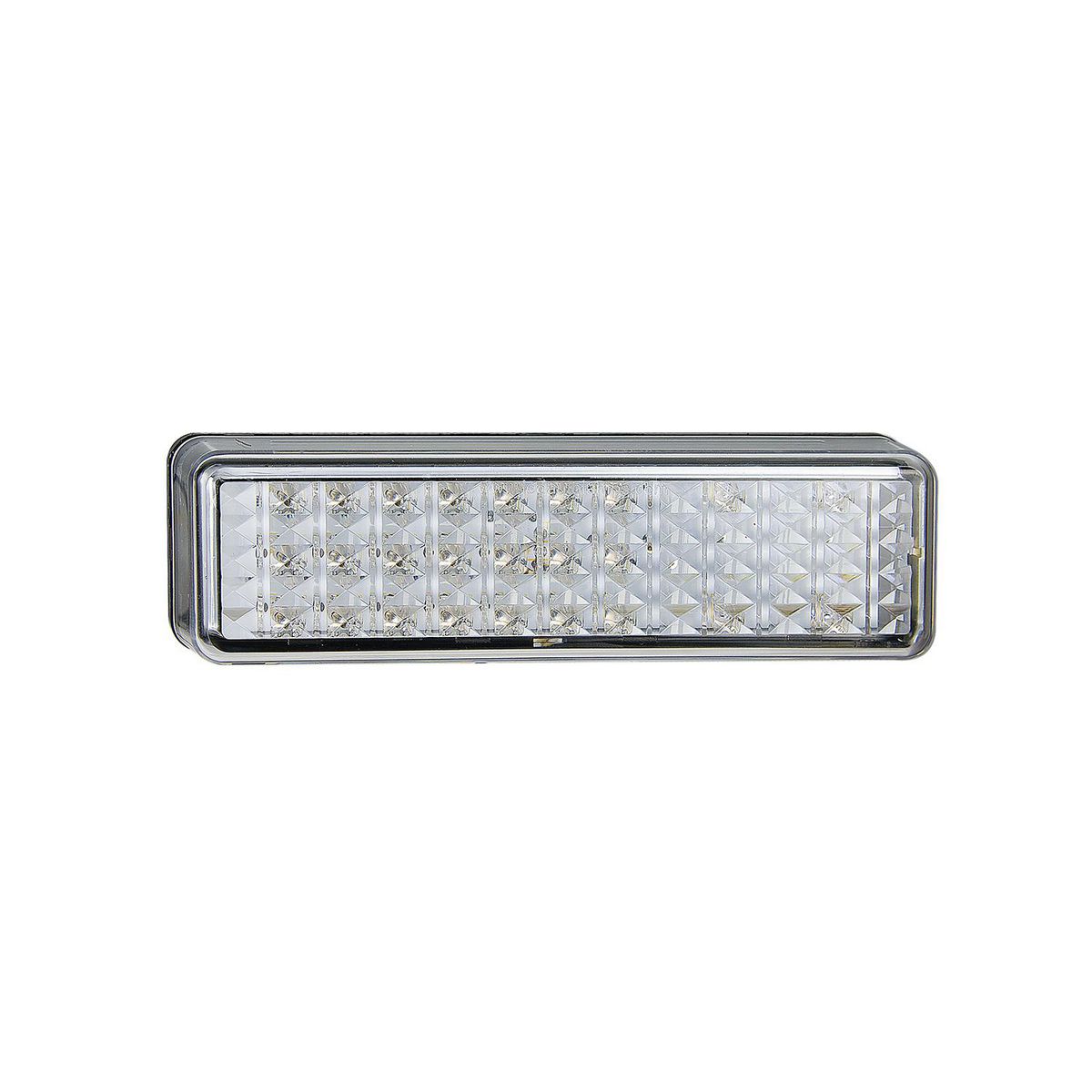

Front indicator position lamp combines amber indicator and white front marker functions in one clear lens bullbar lamp. It suits front lighting repairs where the vehicle needs a clean 12V LED lamp with both signal and position output.

The compact rectangular body suits common 4×4 bullbar openings, so it works well when replacing older globe style lamps or tidying up a front bar fitout.

Features

• Dual front indicator and marker lamp function.

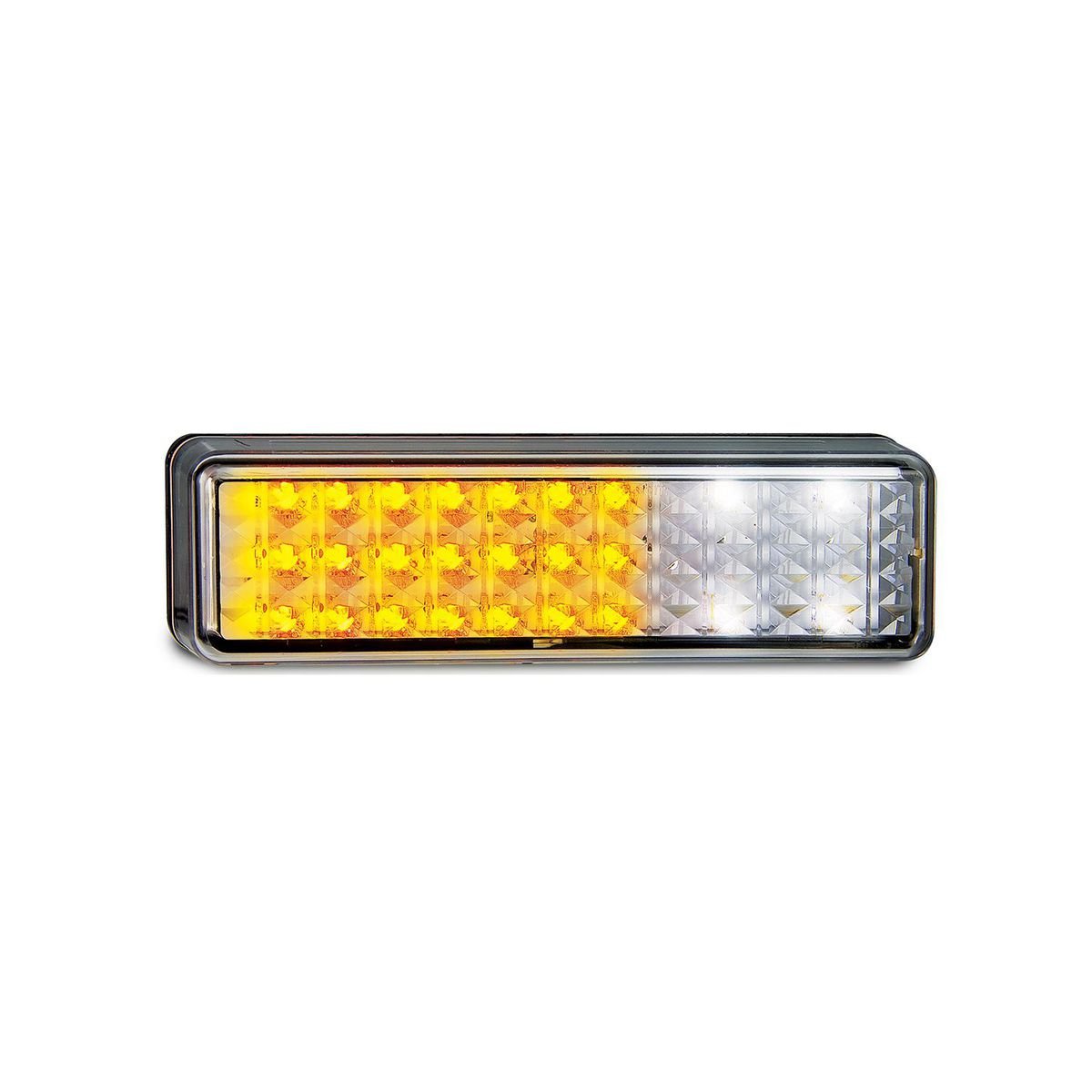

• Clear lens face with amber and white output when active.
• 12V operation with 25 LEDs and 40cm cable.
• Hardened acrylic lens with ABS base.

Specifications and Materials

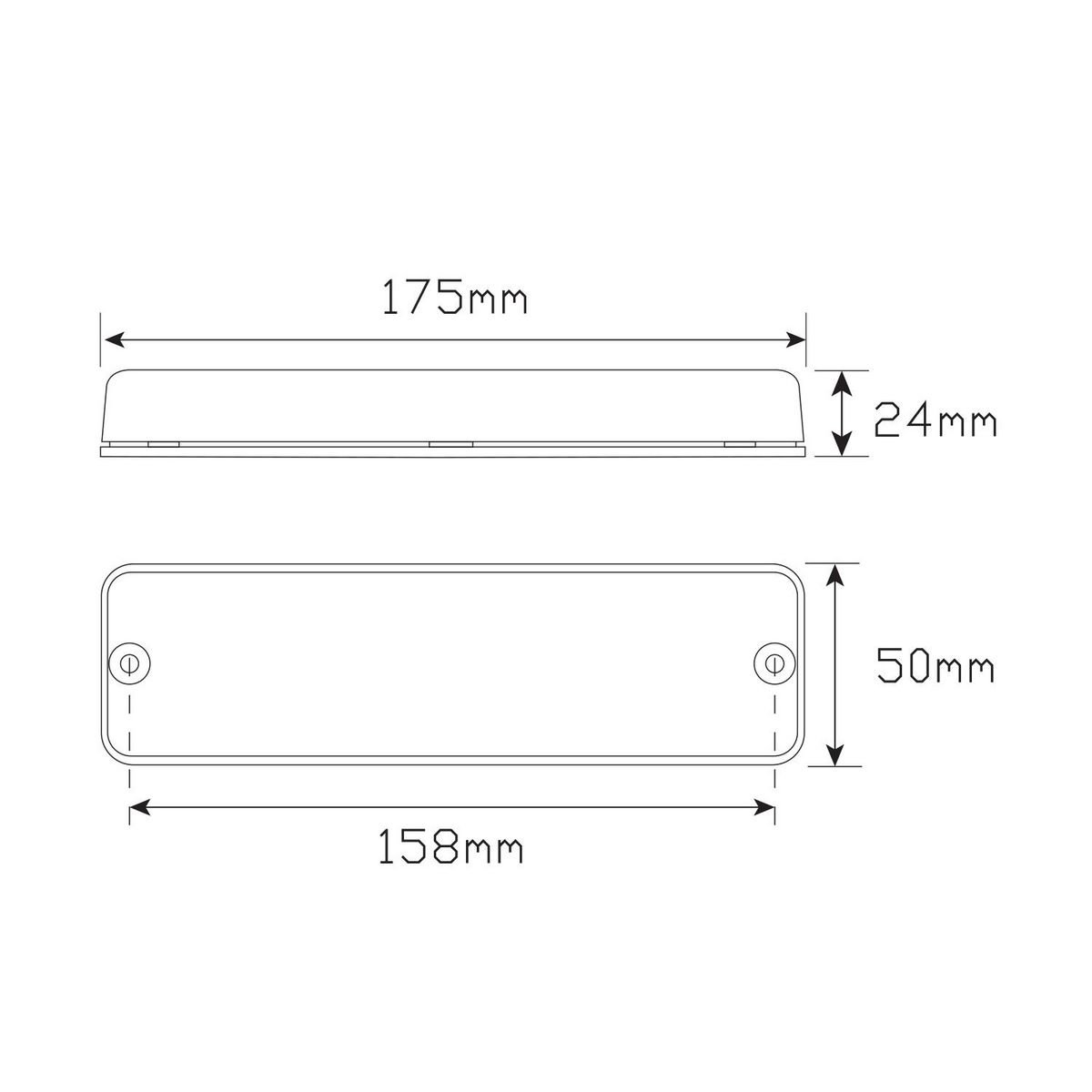

This front indicator position lamp measures 175mm x 50mm x 24mm, with 158mm mounting centres shown on the fitting drawing. At 13.8V, the indicator draws 0.32A and the position function draws 0.03A.

Part number: 175AW/2.

The lamp carries ADR approval for indicator and position functions, plus CTA approval for the combined application.

Use the manufacturer technical guide for series specifications and approvals.

Compatibility and Fitment

Check the bullbar opening, screw spacing and cable path before ordering. Also confirm the vehicle runs a 12V lighting system, because this front indicator position lamp does not suit 24V installs.

During fitment, remove the black base plate, fix the base to the mounting face, run the wiring through the base plate hole, then clip the lamp body firmly back into place.

Compliance and Safety

After fitting, test both the indicator and white marker functions from the vehicle switchgear. If either side flickers, check the earth, join quality and plug condition before replacing extra lighting parts.

For road use, mount the lamp where the front indicator remains visible and the white position function does not sit blocked by bar work, number plates or accessories.

Trailer Applications

Workshops fit this style of front lamp on bullbars, tray vehicles, service bodies and 4×4 support vehicles. It also suits fleet repairs where a clear lens front indicator position lamp keeps the front lighting neat and ADR aligned.

Why Choose ICS Trailers

ICS Trailers supplies LED lighting for trailer, truck body, workshop and fleet repair jobs where the lamp needs to match the wiring and mounting position cleanly.
