Description

Overview

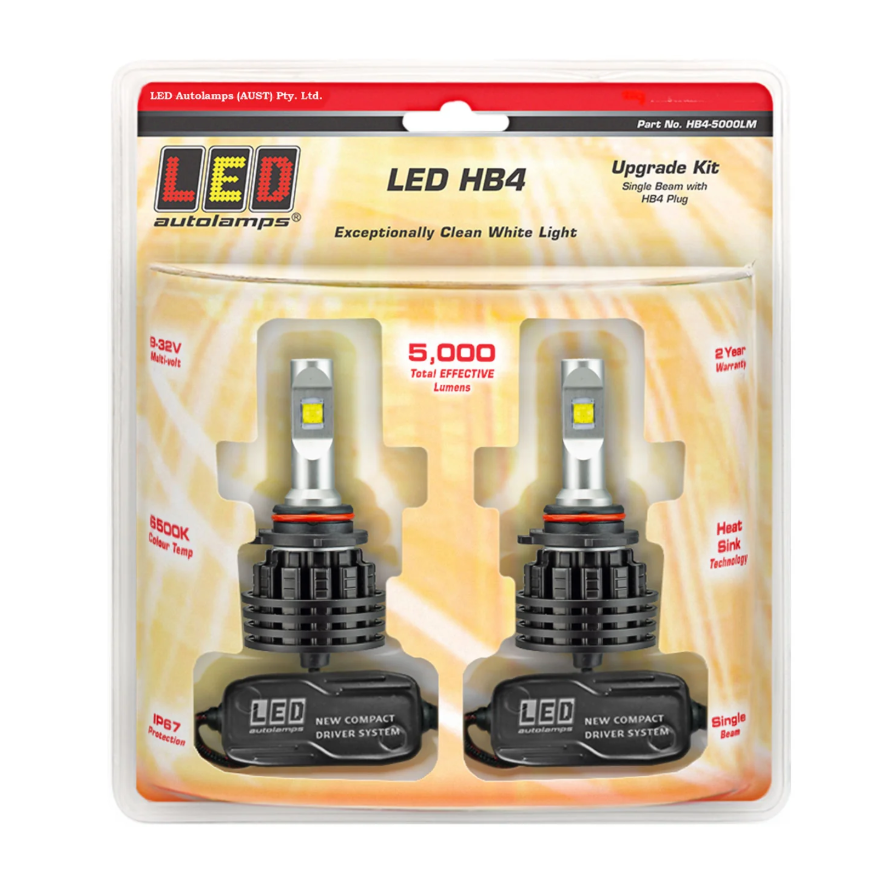

HB4 LED headlight upgrade kit delivers a cool white single beam replacement for HB4 globe applications that need brighter off-road lighting. The twin blister pack suits workshop fitouts, 4WD setups and service vehicles where a plug-matched HB4 LED lamp keeps the install tidy.

Features

• 5000lm effective output across the pair.
• 6500K cool white light with high brightness COB LEDs.
• Multivolt 9-32V input for 12V and 24V vehicle electrical systems.
• Fixed 200mm cable with driver and HB4 plug.

Specifications and Materials

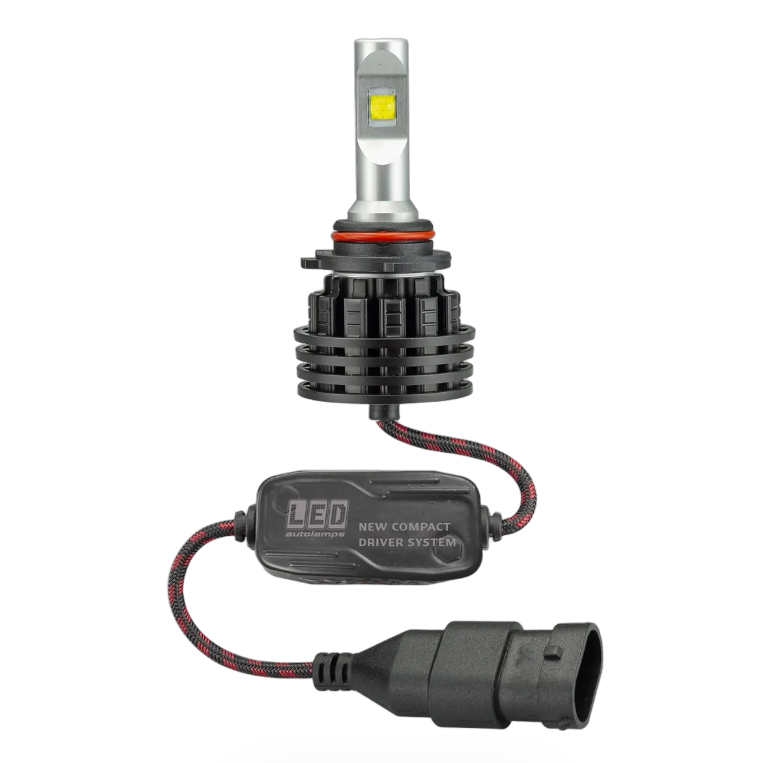

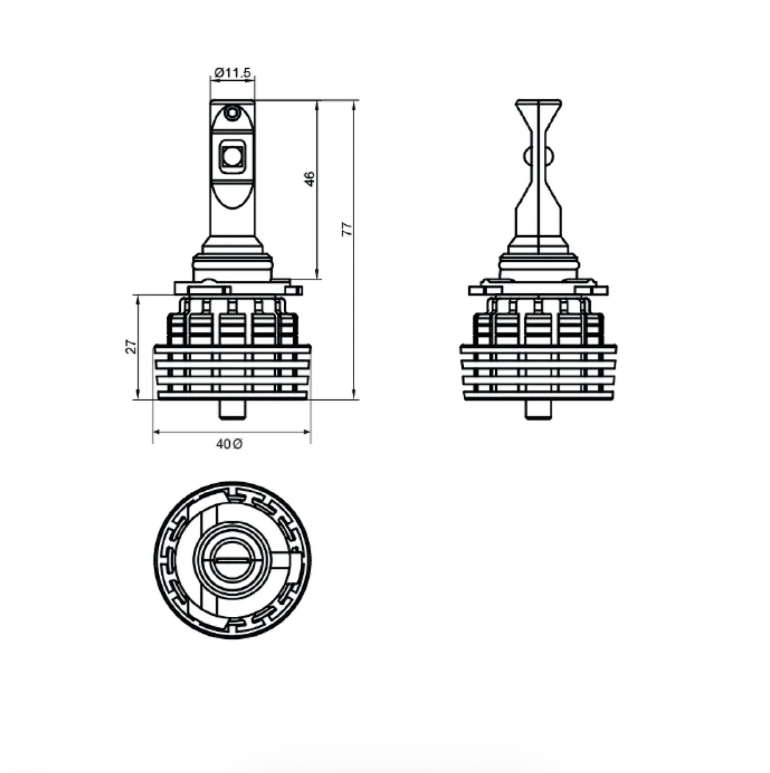

This HB4 LED headlight upgrade kit uses 9x3W COB LED clusters and an aluminium base. Each lamp measures 77mm x 40mm, runs a single beam function and draws 1.6A at 13.8V.

Part number: HB4-5000LM.

The lamp pair carries IP67 protection and a 2 year warranty.

Use the manufacturer technical guide when matching size, draw and plug details before installation.

Compatibility and Fitment

Check the vehicle uses an HB4 headlight base before ordering. Also compare the rear housing space, cable route and dust cover clearance, because the driver and cooling body need room behind the lamp.

During fitment, insert the lamp into the socket, rotate it into position, then connect the HB4 plug to the existing vehicle connector.

Compliance and Safety

This kit carries a Non-ADR rating, so use it only where non ADR headlight upgrades suit the vehicle application and local road rules. Do not fit it as a road-use replacement where ADR compliant exterior lighting applies.

After fitting, test both sides, check beam behaviour and confirm the wiring sits clear of heat, moving parts and sharp edges.

Trailer Applications

Workshops use this style of HB4 LED headlight upgrade kit around tow vehicles, service utes, 4WD support vehicles and yard equipment where a multivolt HB4 LED upgrade suits the job.

Why Choose ICS Trailers

ICS Trailers supplies LED lighting for trailer, tow vehicle, workshop and fleet repair jobs where voltage range, plug type and fitment space matter.
