LED Stop Tail Indicator Lamp 200mm 12/24V
LED Stop Tail Indicator Lamp 200mm 12/24V
$57.00

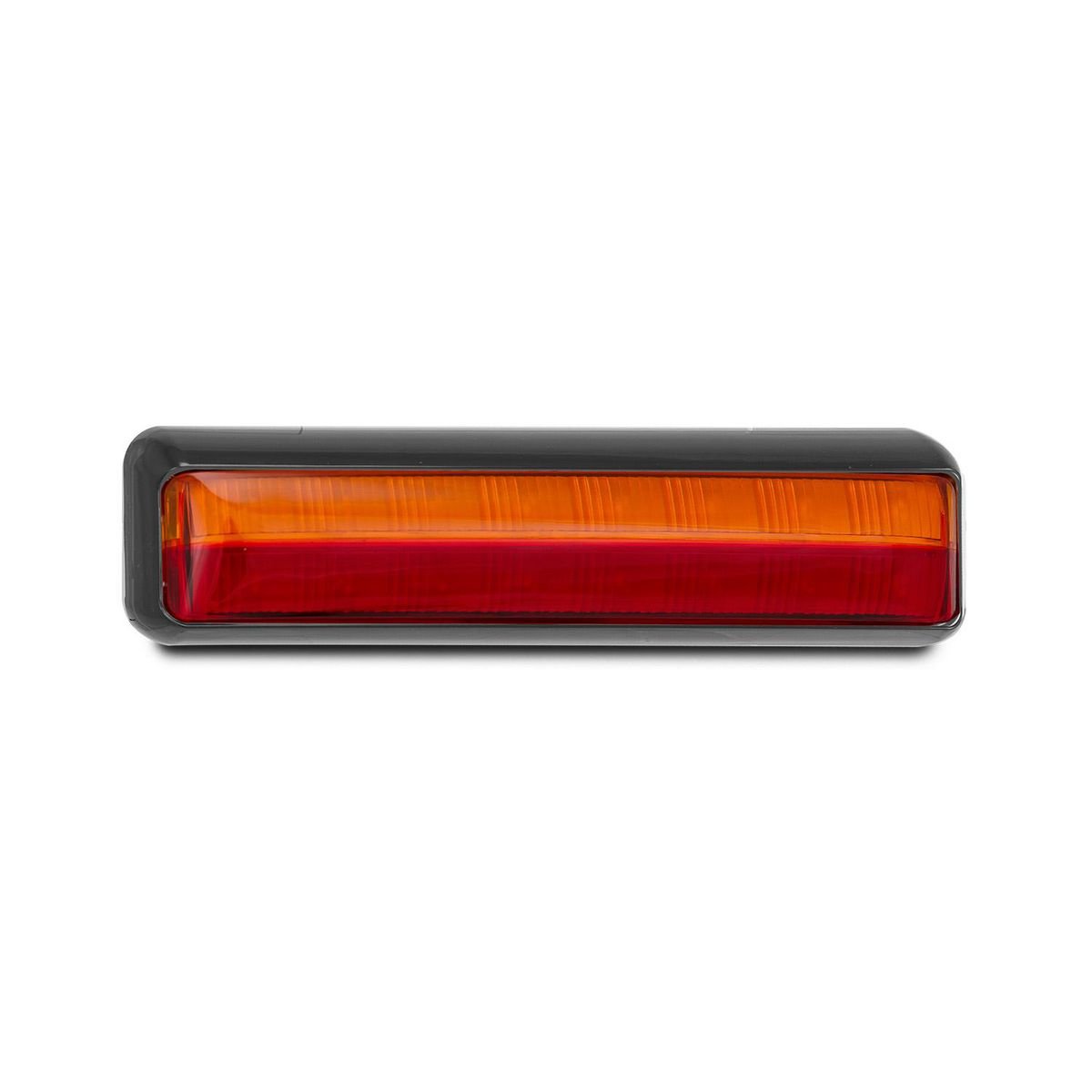

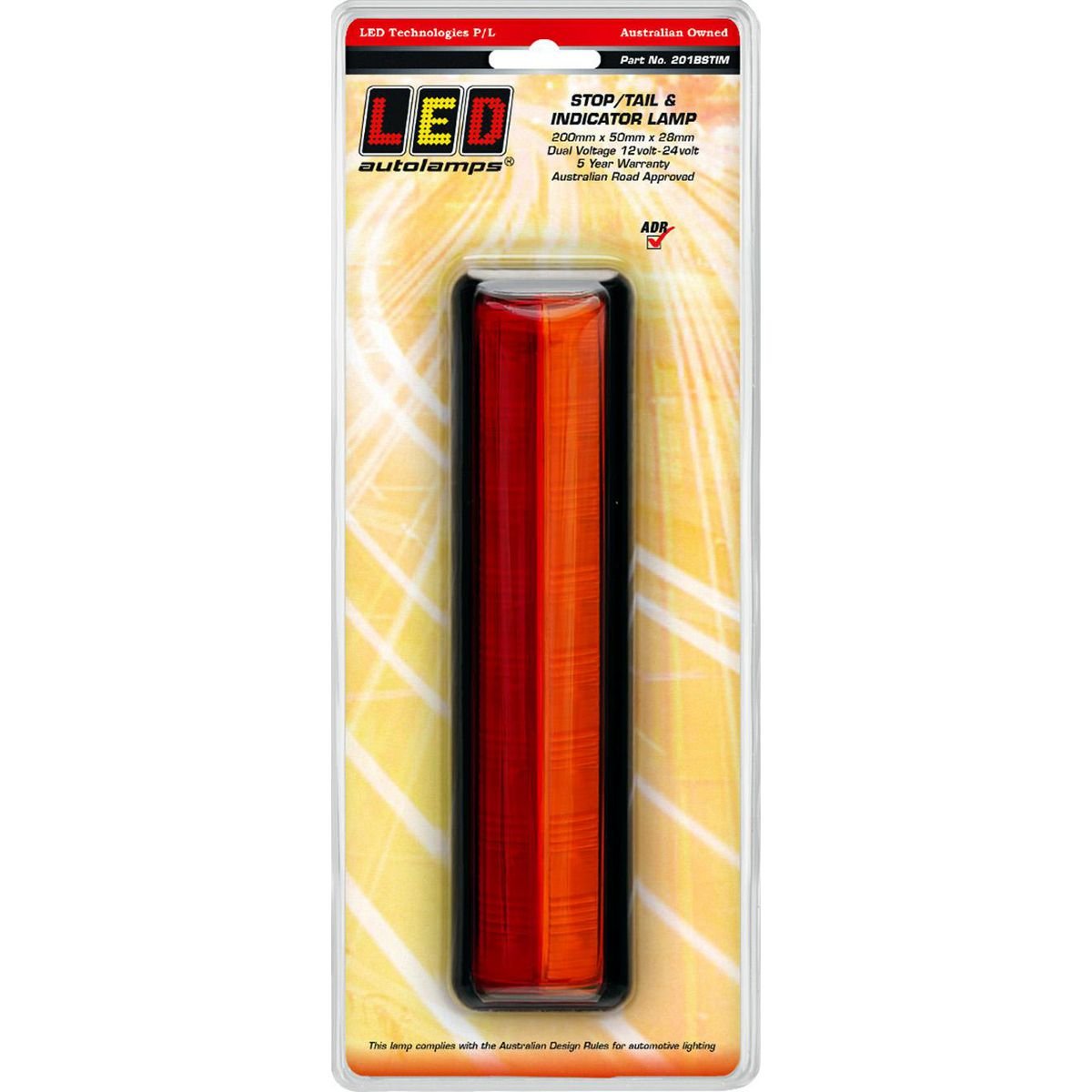

LED stop tail indicator lamp for trailers and service bodies, with 12/24V operation, 16 LEDs, black surface mount bracket, clip in lens, 40cm cable and 200mm x 50mm x 28mm body for compact rear lighting fitment.
Part number 201BSTIM.
Description
Overview
LED stop tail indicator lamp handles three rear lighting functions in one compact rectangular unit for trailer, ute body and service vehicle applications. The slim 200mm body suits flat surface mounting where rear lamp space is tight, while the black bracket gives the lamp a clean, protected mounting base.
Features
- Stop, tail and indicator functions in one rear combination lamp.
- 16 LED layout with a horizontal light array.
- Clip in replaceable lens for simpler service access.
- IP67 rated body with 12/24V multivolt operation.
Specifications and Materials

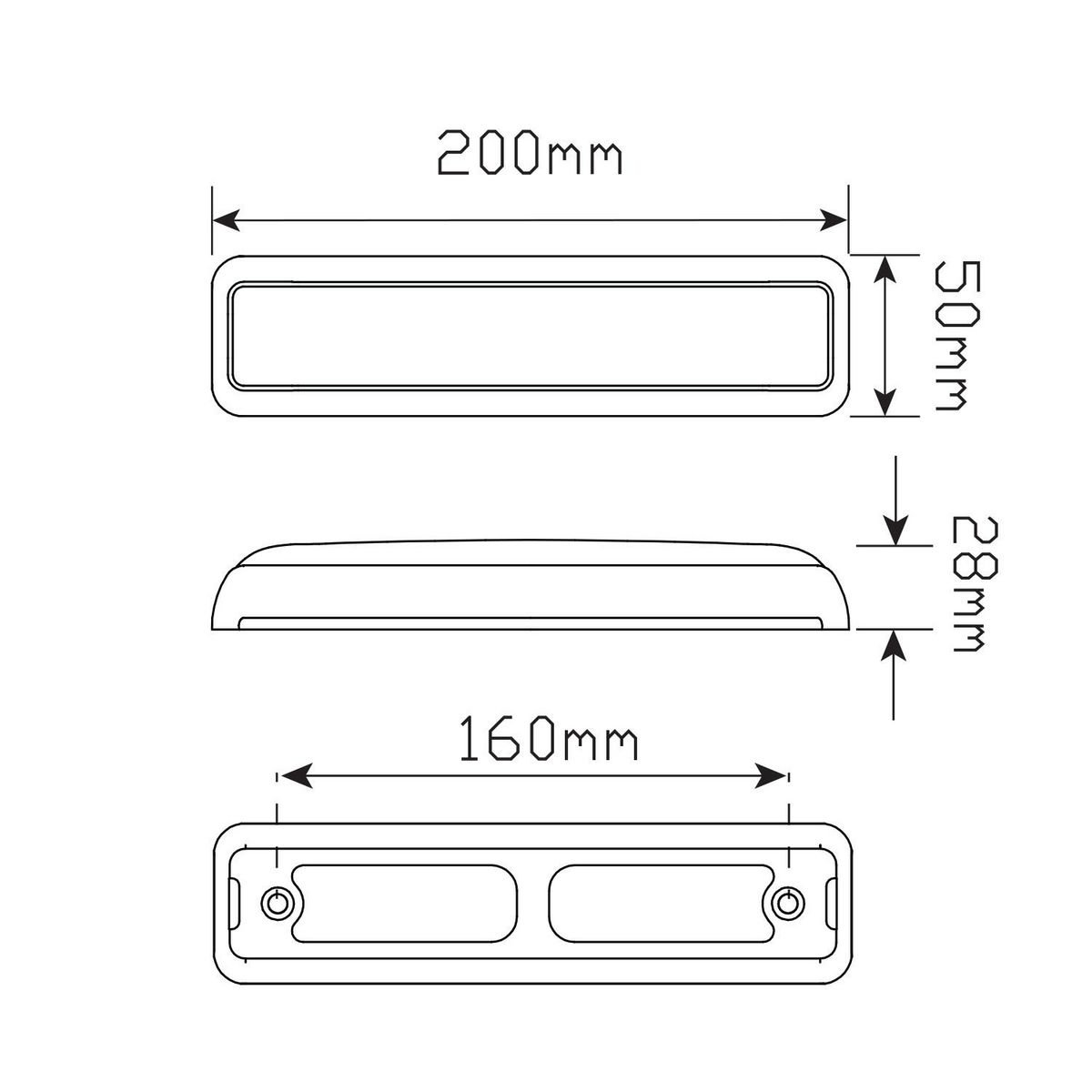

This LED stop tail indicator lamp measures 200mm x 50mm x 28mm and uses a 40cm cable. Current draw at 13.8V measures 0.13A for stop, 0.02A for tail and 0.13A for indicator.
Part number: 201BSTIM.
The lamp carries ADR approval for stop, tail and indicator functions and has CTA approval for stop, tail and indicator use.
Use the manufacturer technical guide when checking dimensions, function ratings and mounting details.
Compatibility and Fitment
Match the lamp size, function set and mounting face before ordering. For installation, mount the bracket horizontally on a flat surface, run the wiring through the rear and then clip the lens into place.
Also check rear clearance, wire path and bracket condition, because a damaged bracket or poor cable route can shorten the service life of the lamp.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement bracket | 200B1B | Black single bracket |
| Optional bracket | 200B1C | Chrome single bracket |
Compliance and Safety
Confirm the lamp orientation, wiring and mounting position before road use. If replacing a failed rear lamp, test the stop, tail and indicator functions after fitting so the trailer remains visible from the rear and side angles.
Trailer Applications
Trailers, trays, service bodies and fleet repair jobs use this LED stop tail indicator lamp where a low profile rear combination lamp keeps the lighting compact. It suits 12V and 24V electrical systems, so workshops can cover light trailer and heavier vehicle setups with one lamp type.
Why Choose ICS Trailers
ICS Trailers supplies rear lighting, marker lighting and electrical parts for trailer repairs, fleet maintenance and body builder fitouts.
