Description

Overview

Rear combination lamp combines stop, tail, indicator, reverse and reflector functions in one compact trailer lighting unit. It suits rear lighting repairs or body builds where the trailer needs one lamp to handle the main rear signal functions.

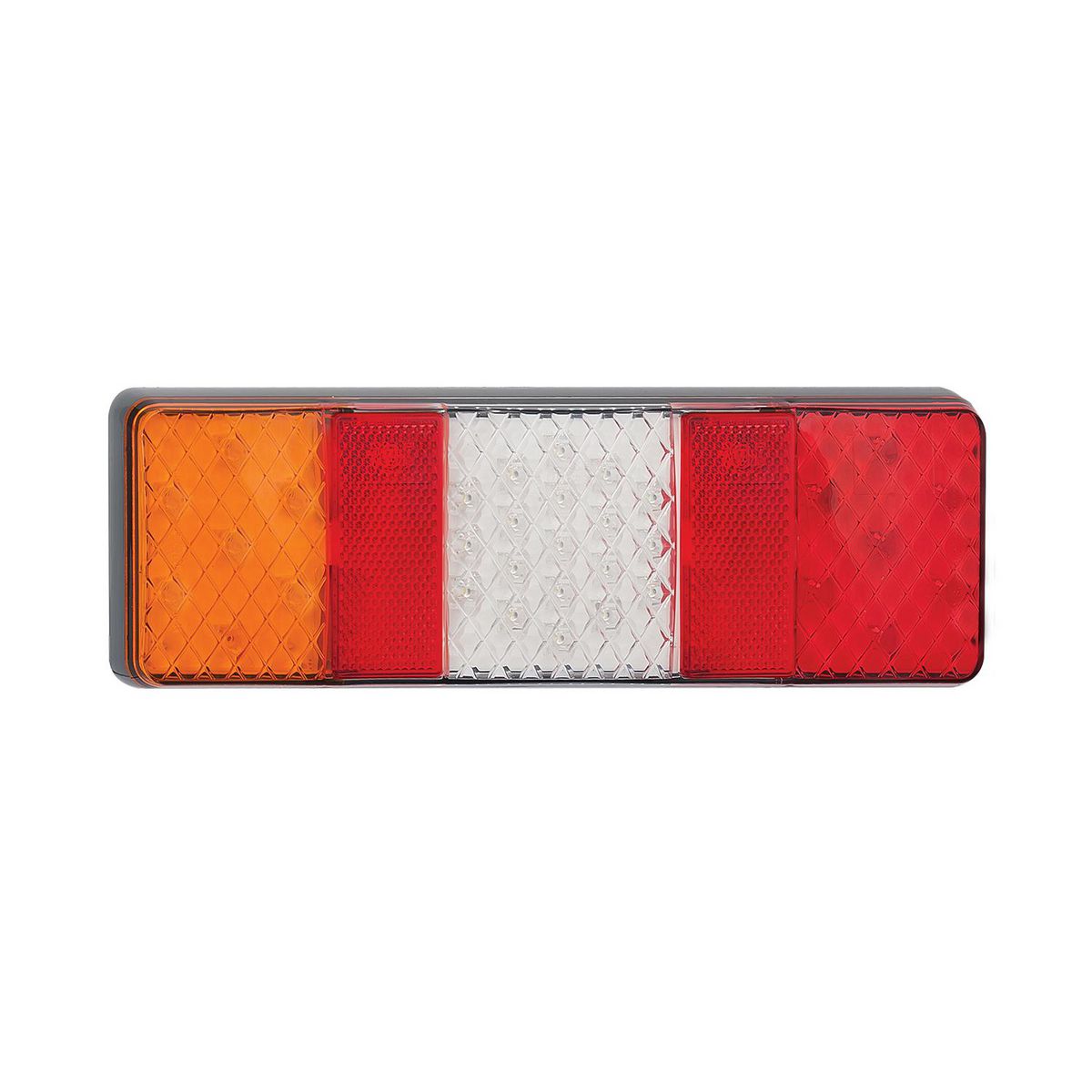

The diamond lens pattern keeps the lamp face clear and easy to identify, while the slim body suits trays, trailers and small truck bodies with limited rear panel space.

Features

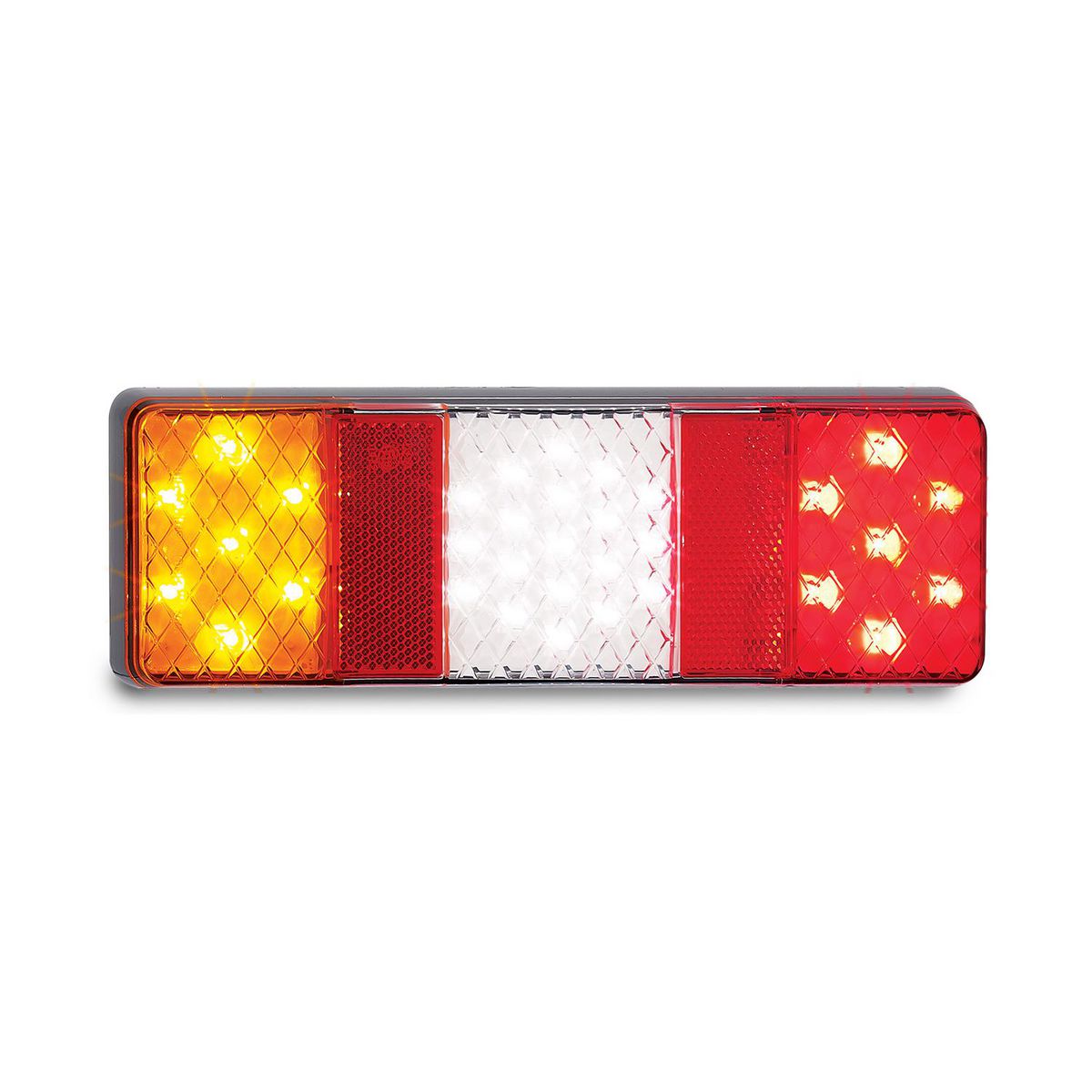

• Stop, tail, indicator, reverse and reflector functions in one lamp.
• Diamond lens pattern with inbuilt red reflector sections.
• 12/24V multivolt operation for trailer and vehicle electrical systems.
• Surface mounts horizontally or vertically using rear mounting bolts.

Specifications and Materials

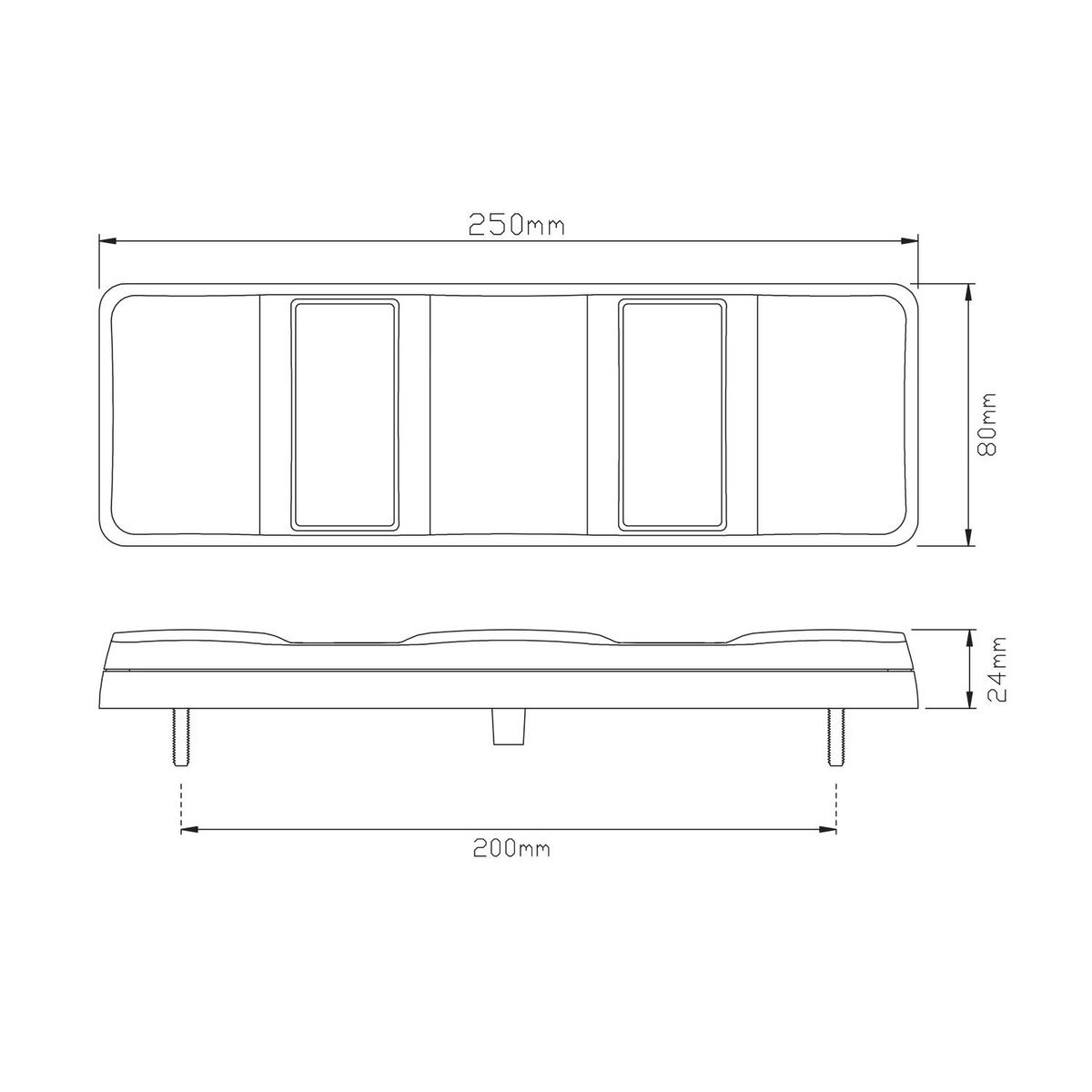

This rear combination lamp measures 250mm x 80mm x 24mm and uses 33 LEDs with a 40cm cable. The wire and plug run through a 10mm hole in the fixing surface, so check the panel before drilling or replacing an existing lamp.

Part number: 250ARWM.

The lamp carries ECE approvals for stop, tail, indicator, reverse and reflector functions, with CTA approval for the combined lamp.

Use the manufacturer technical guide when checking series level specifications

Compatibility and Fitment

Match the trailer’s rear panel space, cable path and function requirements before ordering. Also compare the existing lamp footprint, because the 250 Series body suits compact rear layouts where a full combination lamp needs to fit in a narrow space.

Rear combination lamp fitment works best when the mounting face sits flat and the wiring path stays protected from rubbing, water traps and sharp panel edges.

Compliance and Safety

After installation, test stop, tail, indicator and reverse functions from the tow vehicle. If the lamp flickers or one function drops out, check the earth, cable joins and plug condition before replacing other lighting parts.

For road use, mount the lamp so each function remains visible and check the final position against the trailer’s lighting layout.

Trailer Applications

Trailers use this style of lamp on rear boards, tray backs, service bodies and small truck bodies. Workshops also fit it when replacing separate rear lighting parts with one compact LED combination lamp.

Choose this lamp when the job needs multivolt operation, a built in reflector and a low profile rear light body.
