Description

Overview

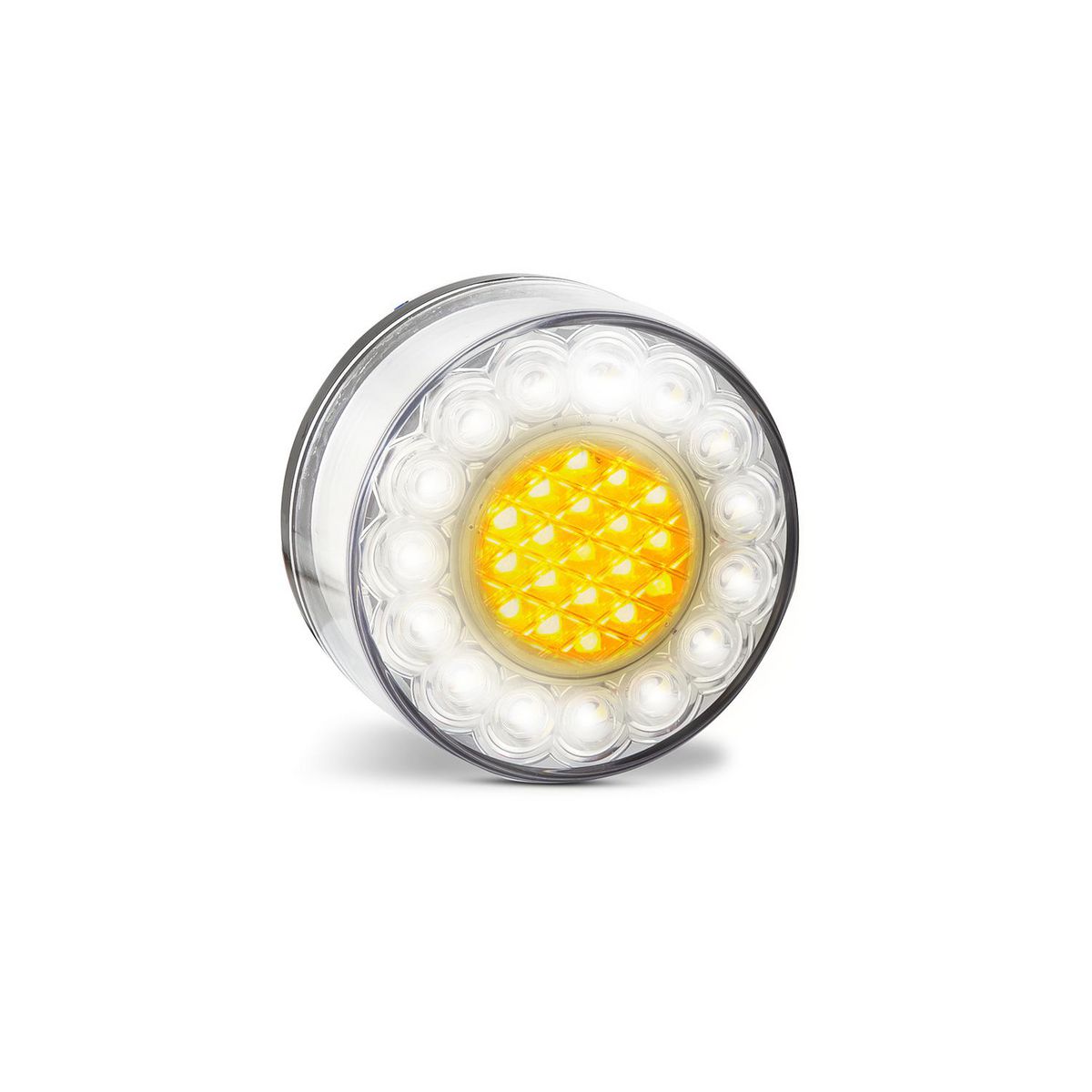

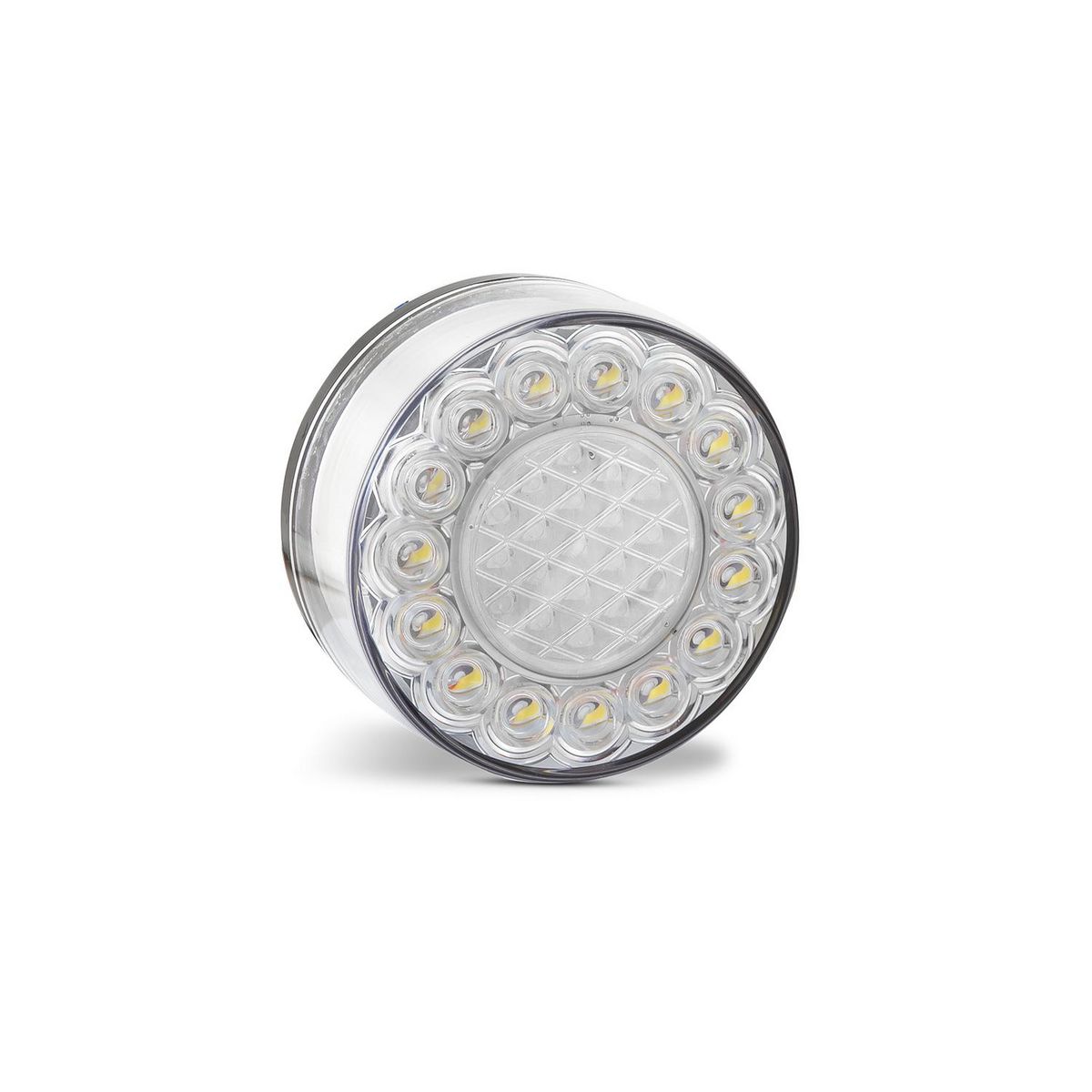

12V front indicator marker lamp supports amber front indicator and front marker functions on bullbar, trailer and body lighting setups. The 80mm round body suits front lighting positions that need a compact lamp with indicator, marker and optional daytime running lamp capability.

Features

• Front indicator and front marker functions in one 80mm round lamp.
• 34 LED layout suits clear front signalling and marker visibility.
• IP67 protection helps seal the lamp against dust and water entry.
• Optional DRL function requires the matching DRL module.

Specifications and Materials

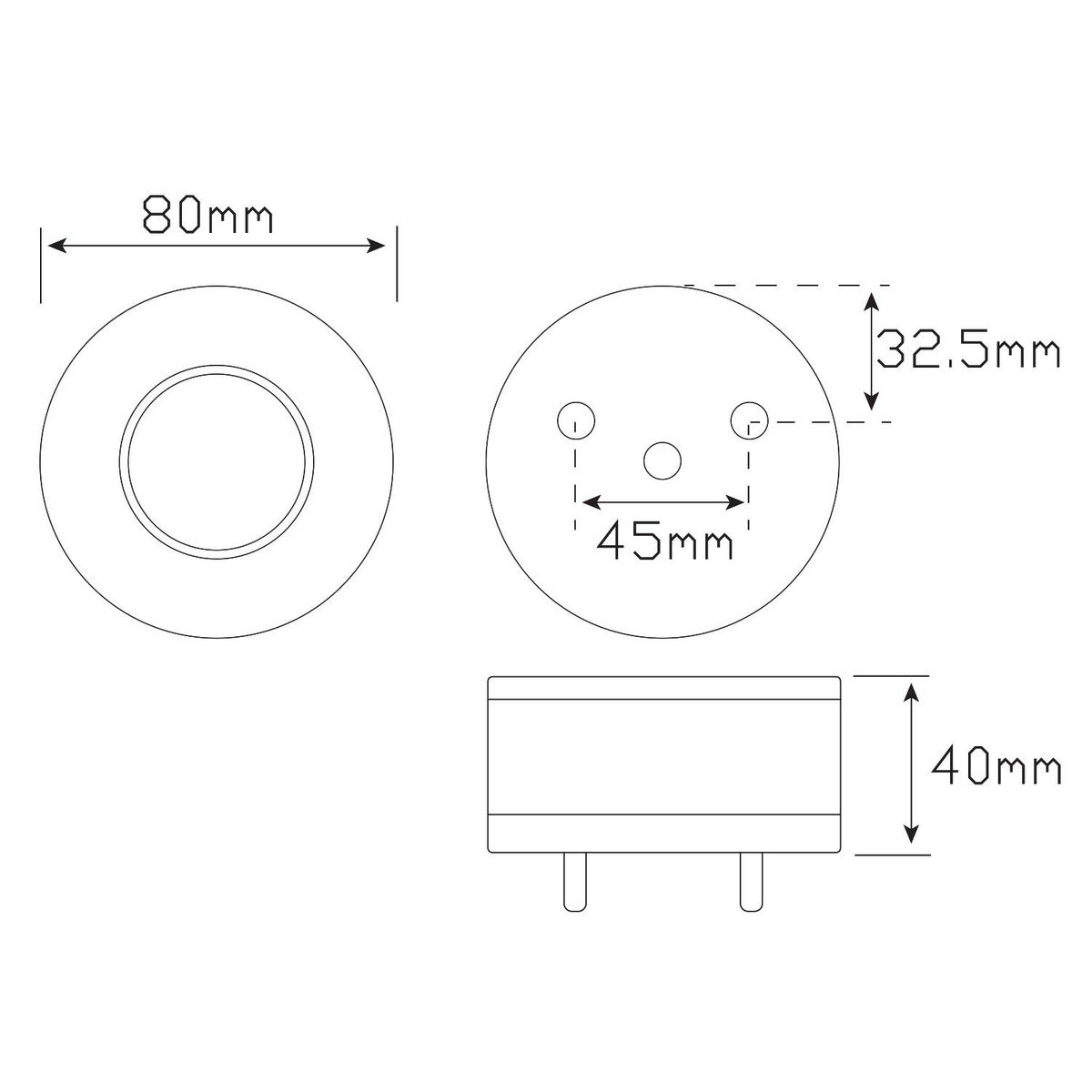

This 12V front indicator marker lamp measures 80mm round x 40mm and uses a 34 LED layout. It includes a 340mm cable, with brown for position, yellow for indicator, white for earth and blue/red for DRL function when wired with the matching module.

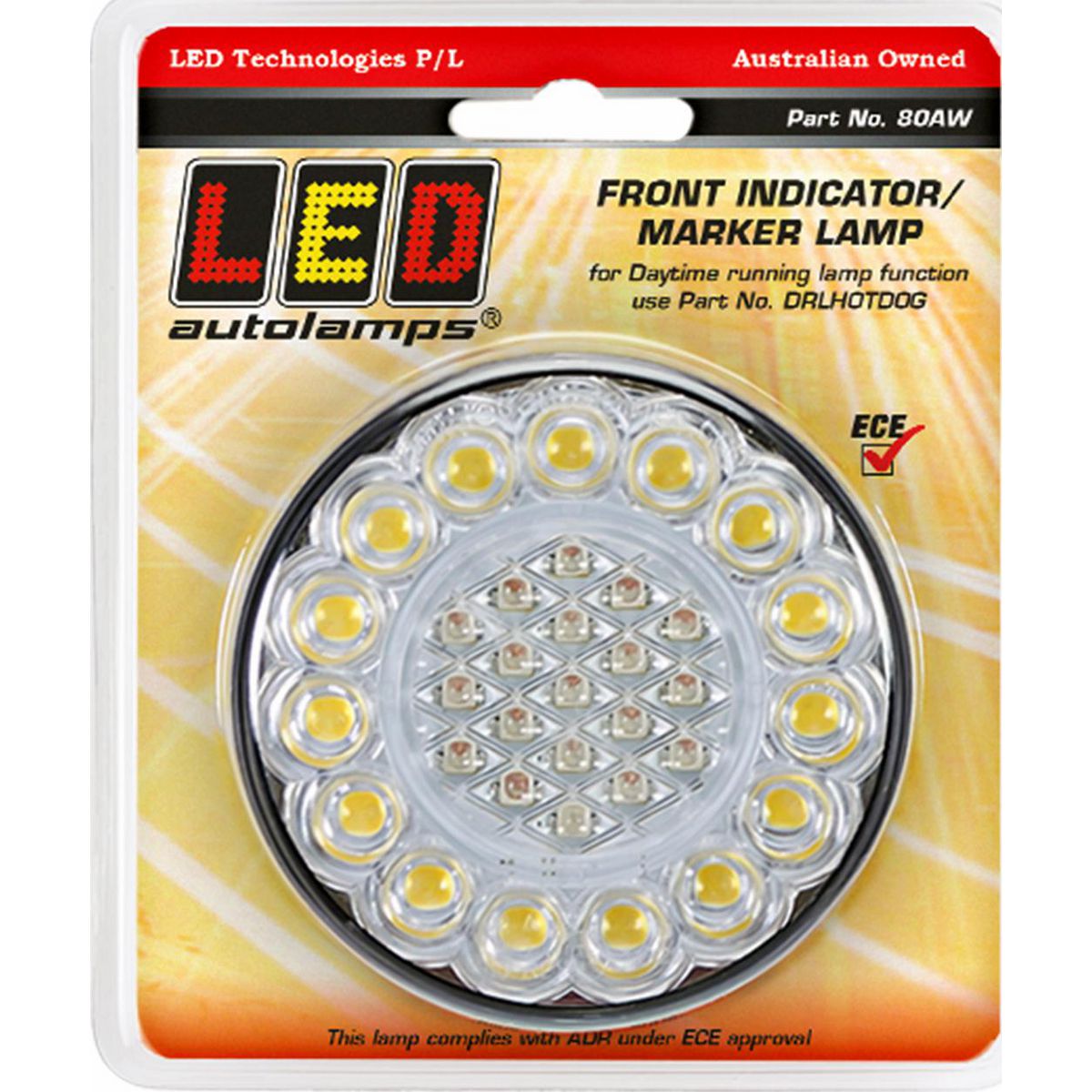

Part number: 80AW.

See the official 80 Series technical guide

Compatibility and Fitment

Match this lamp to a 12V front indicator and marker circuit before ordering. Also check the 80mm round body size, 40mm depth, cable clearance and front mounting position, because this lamp suits existing bullbar-style applications and similar round front lighting cutouts.

The 12V front indicator marker lamp can also support daytime running lamp function when wired with the correct DRL module. If the trailer or vehicle does not require DRL operation, wire only the indicator, marker and earth circuits required for the setup.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This lamp carries ECE approvals for front indicator, marker and DRL functions, with CTA Indicator/Marker/DRL approval CTA-060217. Follow ADR 13/00 mounting guidance, then test the indicator, marker and earth circuits before returning the trailer or vehicle to service.

Trailer Applications

Workshops fit this style of 12V front indicator marker lamp on bullbar-style front lighting repairs, ute trays, service bodies and trailer builds that need compact round front signalling. Because it combines indicator and marker functions, it suits front panels where separate lamps would take extra room.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repairs, body builds and workshop fit-outs. Before replacing a front indicator marker lamp, check voltage, lamp size, wire colours, mounting position and DRL module requirements against the existing setup. See more trailer lighting parts in LED Lights
