Description

Overview

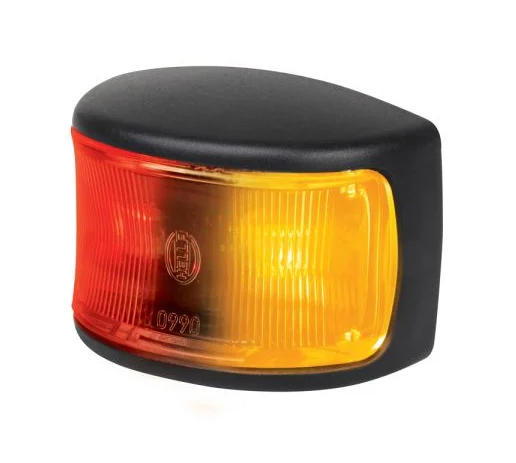

DuraLED side marker lamp red amber supports side marker visibility on trailer and heavy vehicle body lighting setups. The clear optic illuminates red and amber, so one surface mount lamp can suit the correct side marker orientation when installed with the red side facing rearward.

Features

• Red and amber LED side marker lamp with clear optic when unlit.
• Integrated DT connector moulded into the base for protected electrical connection.
• Grilamid nylon lens and nylon housing resist impact, UV, chemical exposure and stress.
• Multivolt operation suits 12V and 24V vehicle systems.

Specifications and Materials

This DuraLED side marker lamp red amber uses LED technology with a horizontal surface mount body. It draws less than 1W and suits flat mounting surfaces with two fixing holes at 35mm centres.

Part number: 2073.

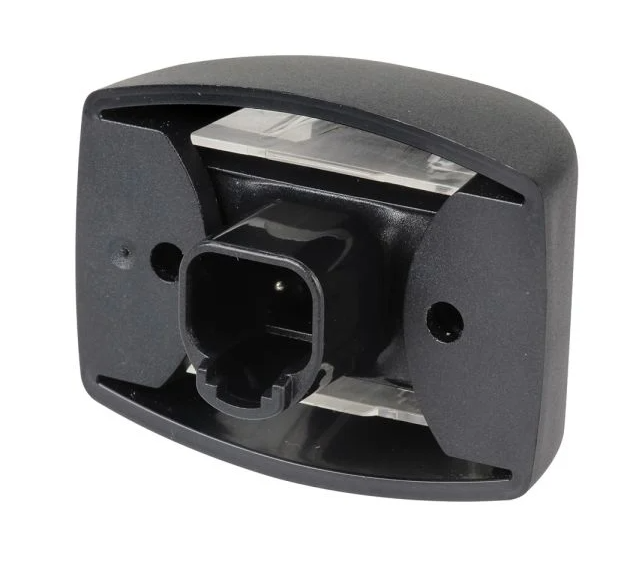

The lamp uses pin 1 for positive and pin 2 for earth. A 22.5mm clearance hole suits the Deutsch 2-way socket in the backplate, while Ø4mm screws or bolts with low head height suit the housing.

For official product and technical details, see the manufacturer DuraLED side marker lamp guide

Compatibility and Fitment

Check the lamp orientation, mounting surface, DT connector setup and vehicle voltage before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2PS 980 990-001, 2PS980990001, 2PS 980.990-0xx, 2PS9809900xx, 980.990-0xx, 9809900xx

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp on a flat surface with the reference axis horizontal. Also keep the red LED side facing rearward, then protect the connector and wiring from damage caused by tie-downs, body hardware and sharp edges.

Trailer Applications

Workshops fit this DuraLED side marker lamp red amber to trailers, heavy vehicle bodies and service vehicles that need a sealed DT connector side marker lamp. The red and amber output helps suit side marker placement where the lamp must show the correct colour direction.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
