Description

Overview

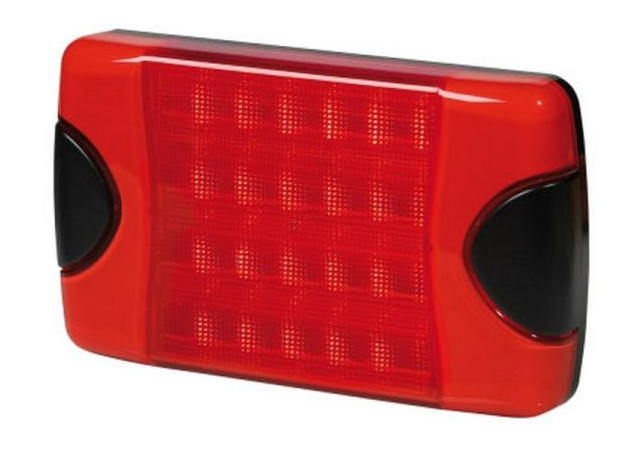

DuraLED stop rear position lamp with night light supports stop, rear position and low-level night illumination on trailer and heavy vehicle rear lighting setups. The horizontal mount body suits rear panels where a sealed LED lamp, 2.5m cable and wide side visibility matter during replacement work.

Features

• Single red LED stop and rear position lamp with night light function.
• Night light lets the rear position lamp illuminate independently from other marker lamps.
• Multivolt 9-33V operation suits 12V and 24V vehicle systems.
• Two hole surface mount design includes mounting bushes.

Specifications and Materials

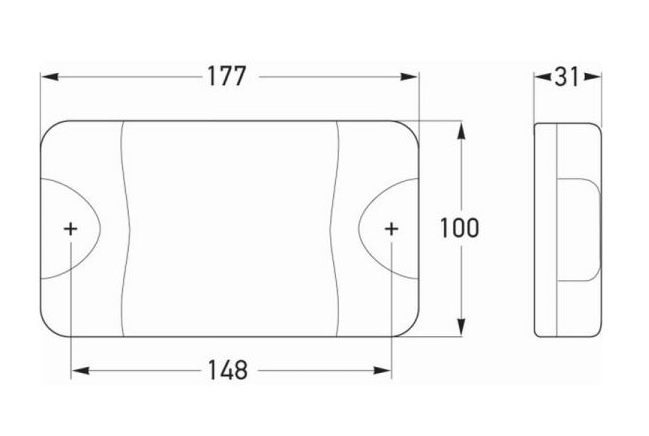

This DuraLED stop rear position lamp uses Enhanced Definition Technology for the stop signal and HELLA Ultra Wide Visibility Optics for improved side visibility. The lamp measures 177mm × 100mm × 31mm and carries a pre-wired 2.5m sheathed multi-core cable.

Part number: 2330-H.

Power consumption is 6W stop, 2.5W rear position and 2.5W night light. Protection includes reverse polarity protection, 5000W transient voltage suppression, IP6K6 dust and high-pressure water jet protection, and IP6K7 temporary water immersion protection.

For official product range details, see the manufacturer DuraLED rear lamps guide

Compatibility and Fitment

Check the lamp orientation, mounting hole layout, cable route and vehicle voltage before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2SB 959 060-351, 2SB959060351, 2SB 017 007-001, 2SB017007001

Compliance and Safety

Fit the lamp to a clean, flat mounting surface, then protect the cable from sharp edges and heat. Also confirm the trailer has the required rear reflector setup, because this lamp handles stop, rear position and night light functions only.

Trailer Applications

Workshops fit this DuraLED stop rear position lamp to trailers, caravans, buses and heavy vehicle bodies that need a horizontal rear LED lamp. It suits replacement work where the rear lamp must retain a separate night light function and ADR 49/00 stop and rear position compliance.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies practical trailer lighting for repairers, fleets and operators who need parts that match real workshop replacement jobs. This DuraLED stop rear position lamp gives buyers a sealed LED option for rear body lighting service work.

For more trailer lighting options, browse LED Lights
