Description

Overview

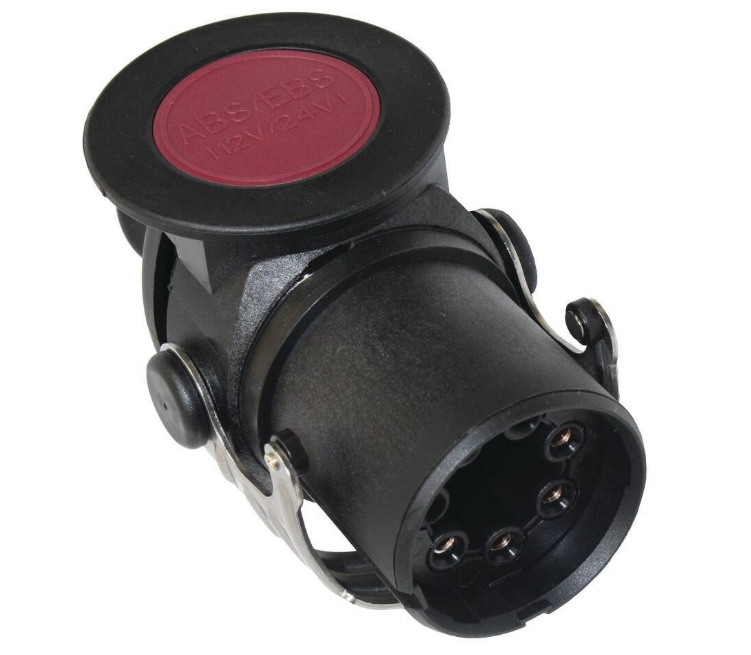

ABS/EBS plug 7 pin Multivolt connects trailer braking electronics through a 7 pole plug for 12V and 24V ABS/EBS connection systems. It suits mixed fleet workshop use where a screw contact plug needs to handle ISO 7638-1 and ISO 7638-2 setups. Because the plug includes a cover, rubber seals and a high strength cable gland, it suits exposed trailer leads and heavy vehicle electrical repairs.

Features

• 7 pin Multivolt ABS/EBS plug with screw contact termination.
• Includes cover and rubber seals for added plug protection.
• Reinforced composite housing with high strength cable gland.
• Accepts 11 to 18mm cable for heavier ABS/EBS lead setups.

Specifications and Materials

This ABS/EBS plug 7 pin Multivolt uses screw contacts for service replacement wiring and accepts 11 to 18mm cable. The reinforced composite housing supports 7 pin ABS/EBS trailer connections across 12V and 24V systems, but the operator must confirm prime mover and trailer voltage compatibility before use.

Part number: 8JA227440091.

Use the HELLA ABS/EBS truck and trailer wiring catalogue when matching Multivolt plug details

Compatibility and Fitment

Check the vehicle voltage, socket type, pin layout, cable diameter and trailer braking system before ordering. The ABS/EBS plug 7 pin Multivolt suits 12V and 24V ABS/EBS connection systems, but it does not remove the need to match voltage compatibility between the prime mover and trailer. Also confirm that the cable sheath suits the 11 to 18mm cable gland before terminating the contacts.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the trailer and prime mover voltage before coupling, because mixed 12V and 24V ABS/EBS systems still need correct voltage matching. Tighten the cable gland correctly, keep sealing faces clean and inspect the plug pins for corrosion or damage. If the cable has cracked insulation or heat damage, repair the affected lead as well as the plug.

Trailer Applications

Workshops fit this plug to ABS/EBS trailer leads, suzi coil repairs and commercial transport equipment where the fleet runs both 12V and 24V connection systems. It suits repair work where the existing plug body, cover, seals, contacts or cable outlet no longer handles normal coupling use.
