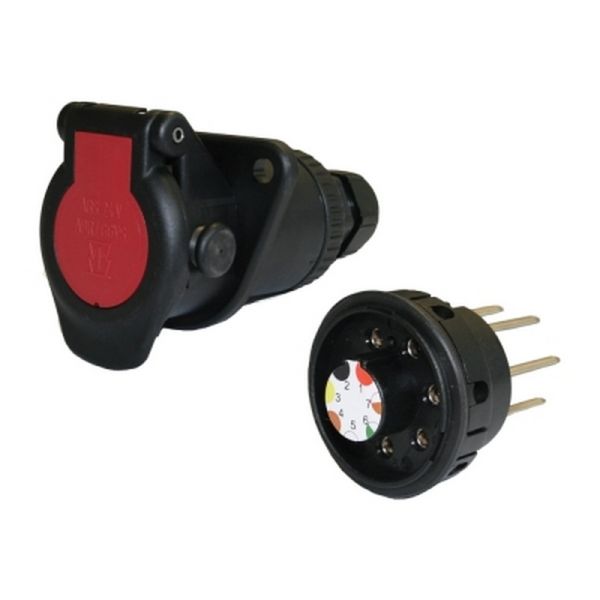

ABS/EBS Socket 7 Pin 24V Screw Contact
ABS/EBS Socket 7 Pin 24V Screw Contact
$52.00
ABS/EBS socket 7 pin 24V with screw contacts for heavy vehicle trailer braking wiring, using bolted mounting, reinforced composite housing, cover, rubber seals and 9 to 16mm cable entry for clean workshop replacement.
Part number 8JB227440021.
Description
Overview
ABS/EBS socket 7 pin 24V connects heavy vehicle trailer braking wiring through a bolted ISO 7638-1 socket. It suits 24V ABS and EBS trailer connection systems where a sealed screw contact socket is required. Because the socket includes a cover, rubber seals and a high strength cable gland, it suits exposed rear vehicle and trailer connection points.
Features
- 7 pin 24V ABS/EBS socket with screw contact termination.
- Includes cover and rubber seals for the socket face.
- Reinforced composite housing with bolted mounting.
- High strength cable gland supports 9 to 16mm cable entry.
Specifications and Materials
This ABS/EBS socket 7 pin 24V uses screw contacts for service replacement wiring and accepts 9 to 16mm cable. The reinforced composite housing includes colour coded wiring positions, while the socket follows ISO 7638-1 for 24V ABS/EBS trailer braking connections.
Part number: 8JB227440021.
Use the HELLA ABS/EBS truck and trailer wiring catalogue when matching ISO 7638 plug and socket details
Compatibility and Fitment
Check the vehicle voltage, socket type, pin layout, cable diameter and mounting position before ordering. The ABS/EBS socket 7 pin 24V suits ISO 7638-1 24V ABS/EBS trailer wiring, not 12V ISO 7638-2 systems. Also confirm that the matching plug latches securely and that the cable sheath suits the 9 to 16mm cable gland.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Used with | 8JA 227 440-041 | 7 pin 24V ABS/EBS plug |
| Used with | 8KA 227 440-061 | 24V ABS/EBS suzi coil |
| Service tool | 8PD 004 508-031 | ISO 7638-1 socket tester |
| Related version | 8JB 227 440-011 | 7 pin 12V ABS/EBS socket |
| Related version | 8JA 227 440-091 | Multivolt ABS/EBS plug |
Compliance and Safety
Confirm 24V compatibility before fitting, because ABS/EBS socket and plug systems must match the trailer wiring standard. Tighten the cable gland correctly, keep the cover and seal faces clean, and inspect the contacts for corrosion before returning the vehicle to service. If the cable insulation has cracked or overheated, repair the cable as well as the socket.
Trailer Applications
Workshops fit this socket to heavy trailers, prime movers, semi-trailers and commercial transport equipment with 24V ABS/EBS braking connections. It suits repair work where the existing socket body, cover, terminals, seals or cable outlet no longer handles normal fleet use.
Why Choose ICS Trailers
ICS Trailers can help match trailer electrical parts by socket type, voltage, wiring standard and cable setup. Browse more trailer plugs, sockets and wiring parts in our Electrical
