Description

Overview

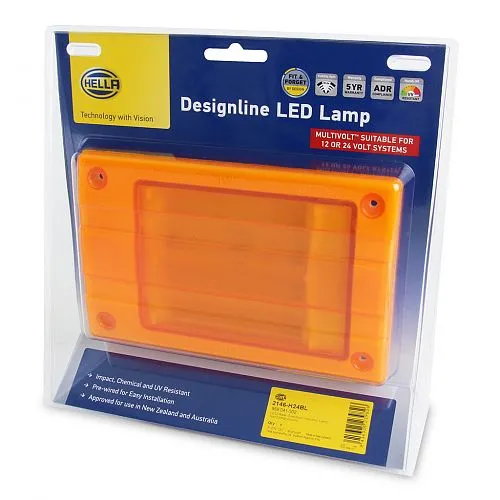

Designline LED rear indicator module updates existing globe type Jumbo or Designline rear lamps with a horizontal amber LED indicator module. This module suits rear direction indicator replacement where the trailer already uses the matching HELLA Designline recess mount format. Because it runs on 9-33V multivolt power, it covers both 12V and 24V trailer electrical systems.

Features

• Horizontal rear direction indicator module for Designline lamp assemblies
• 9-33V multivolt operation for 12V and 24V vehicle systems
• HELLA Ultra Wide Visibility Optics improve side visibility
• Pre-wired with 200mm of cable for installation

Specifications and Materials

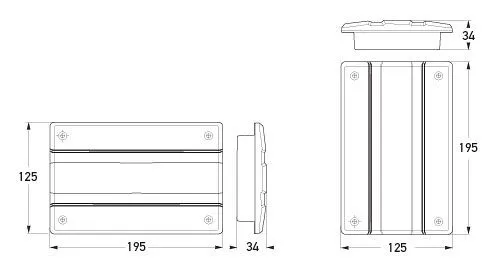

This Designline LED rear indicator module uses a four point recess mount and amber rear indicator function. It measures 195mm × 125mm × 34mm, draws 6W and includes reverse polarity protection with a 5000 watt transient voltage suppressor. Part number: 2146H24BL.

Use the manufacturer Designline LED catalogue for module identification

Compatibility and Fitment

Match the horizontal orientation, recess mount body and existing lamp family before ordering. This module updates globe type Jumbo or Designline lamps, but it must match the lamp housing style already fitted to the trailer. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2BA 959 041-502, 2BA959041502

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This module carries ADR 6/00 Cat 2a compliance for rear direction indicator use. However, ISO 13207-1 applies only to the HCS variants, so do not treat the blister pack module as an HCS failure control version. Confirm indicator monitoring requirements before fitting it to trucks with body controllers or lamp failure systems.

Trailer Applications

Trailer workshops fit this module when updating or repairing HELLA Jumbo and Designline rear lamp assemblies. Fleet maintenance teams also use the Designline LED rear indicator module when replacing older globe type rear direction indicator sections with a multivolt LED module.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
