Description

Overview

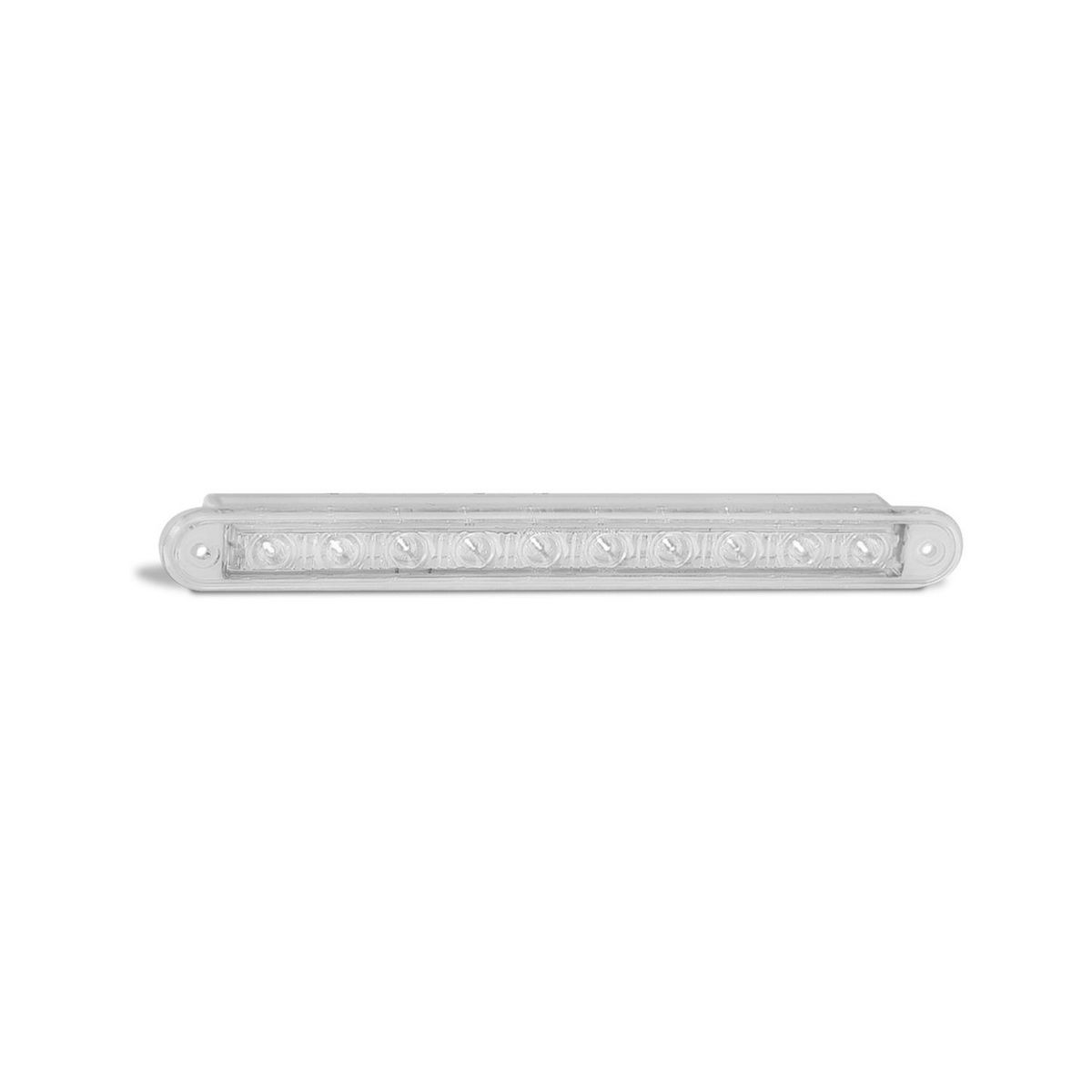

Clear lens stop tail lamp handles rear brake and tail lighting on trailers, truck bodies and commercial vehicle panels. The slim 235 Series body sits low in the panel, so it suits rear lighting layouts where a narrow lamp needs a clean recessed finish.

Features

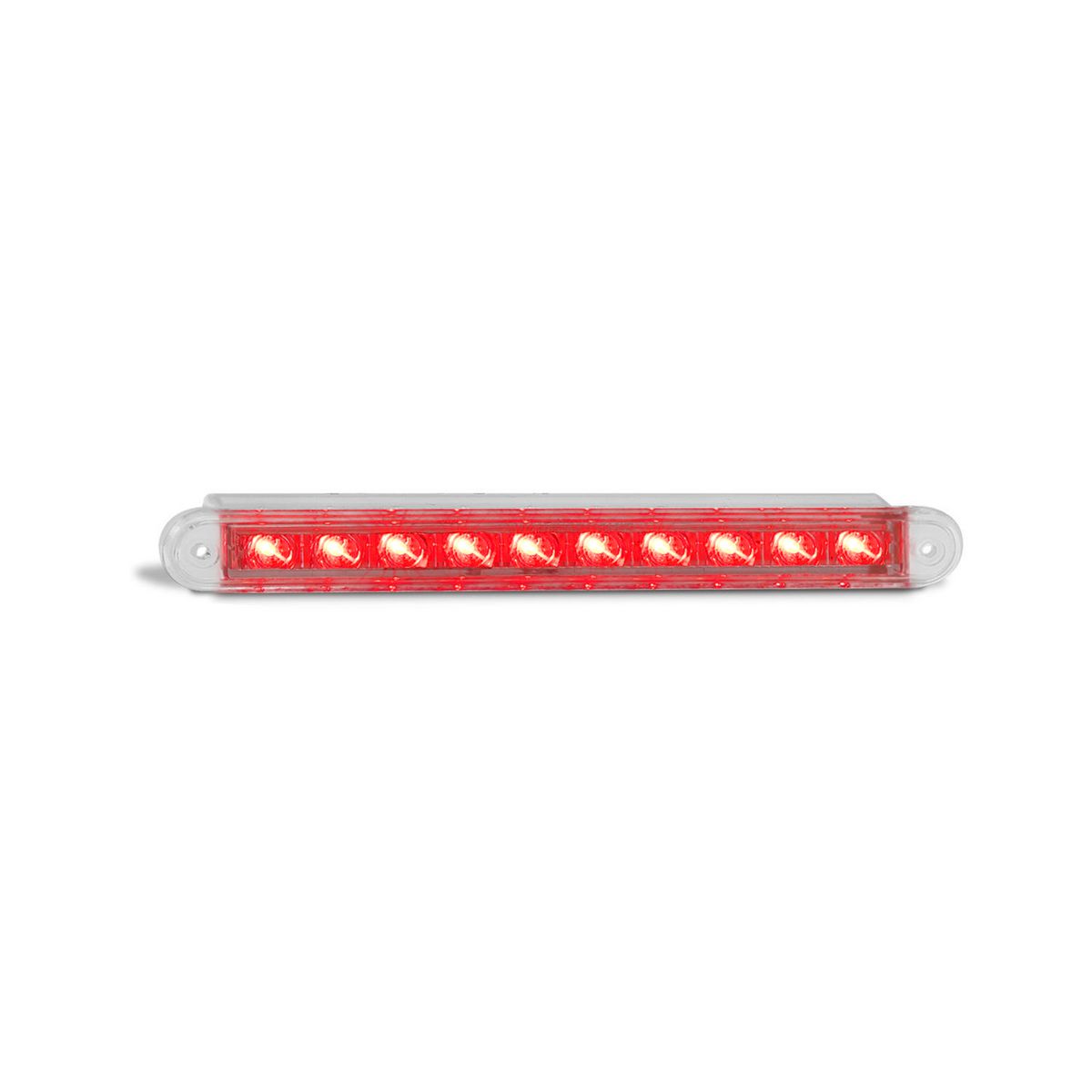

• Red LED stop/tail function behind a clear lens.
• 12V recessed mount lamp supplied without a surface bracket.
• 10 LED layout with 40cm cable for rear lamp wiring.
• IP67 rating supports exposed trailer and vehicle lighting positions.

Specifications and Materials

Part number: 235CR12.

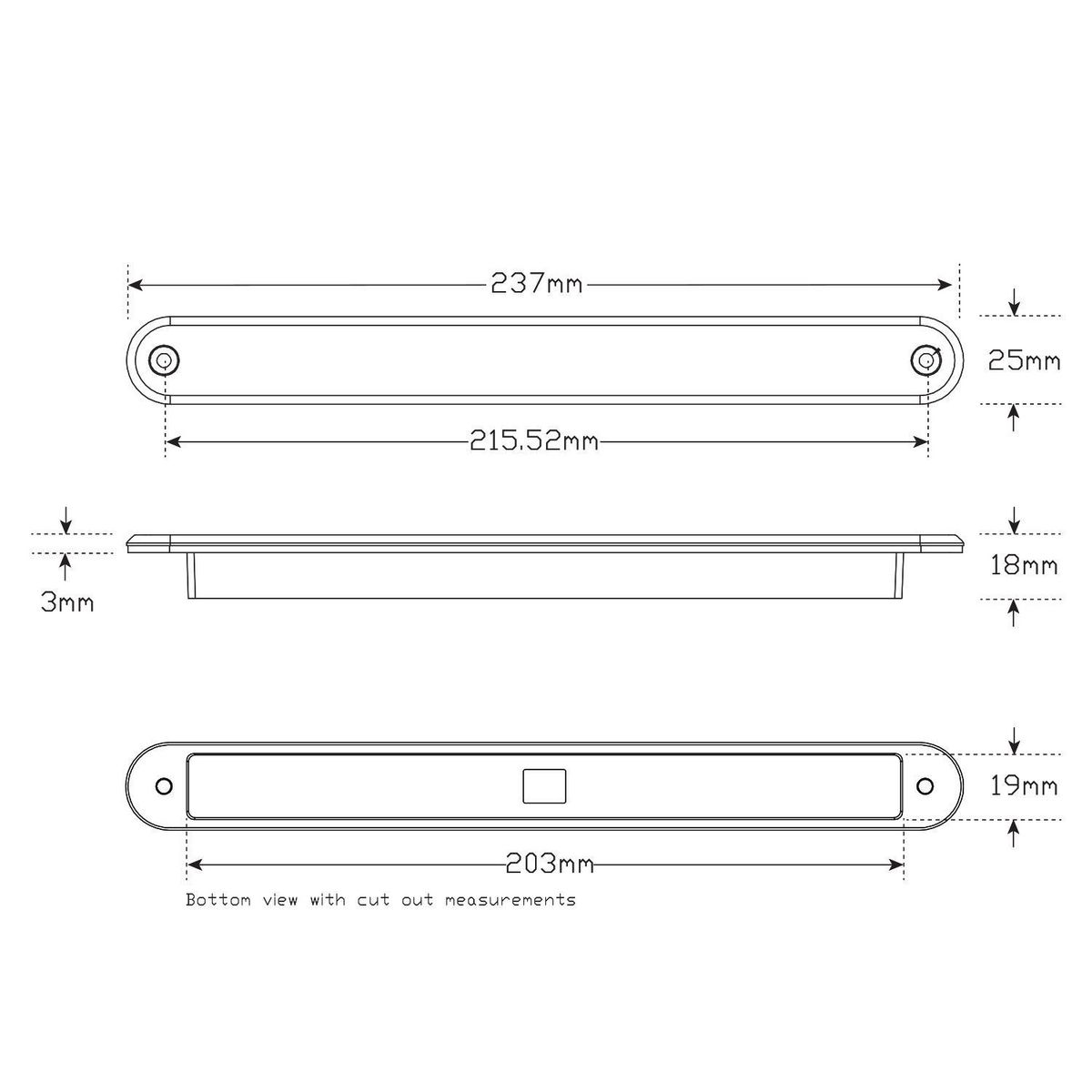

The clear lens stop tail lamp measures 237mm x 25mm across the face and uses a 203mm x 19mm cut-out for recessed fitting. Stop draw is 0.14A at 13.8V, while tail draw is 0.04A at 13.8V. It carries ADR clear stop/tail approval under category 49/00.

LED Autolamps 235 Series technical page

Compatibility and Fitment

Match this clear lens stop tail lamp to a 12V rear stop/tail circuit, 237mm x 25mm lamp face and 203mm x 19mm panel cut-out before ordering. Mount it horizontally, run the cable through the rear of the panel, then seat the lamp and grommet cleanly into the opening.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check stop, tail and earth wiring before returning the trailer to service. Also inspect the cut-out and cable path, because sharp panel edges or overtightened screws can damage the lamp body or wiring.

Trailer Applications

Workshops fit this clear lens stop tail lamp to rear trailer panels, ute trays, truck bodies and commercial vehicle lighting assemblies. It suits slim brake and tail light positions where a flush-style lamp gives a cleaner finish than a bulky surface lamp.
