Description

Overview

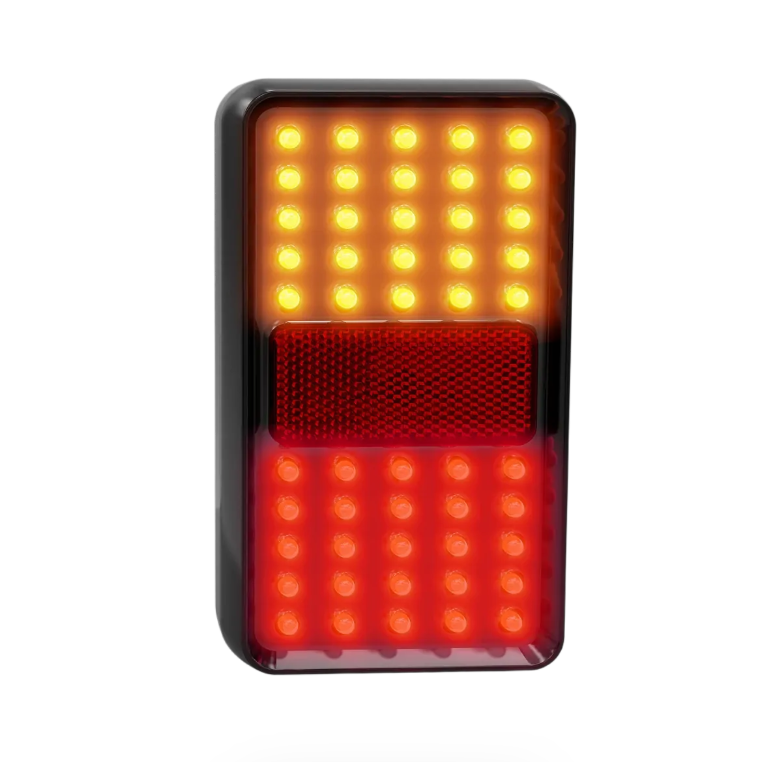

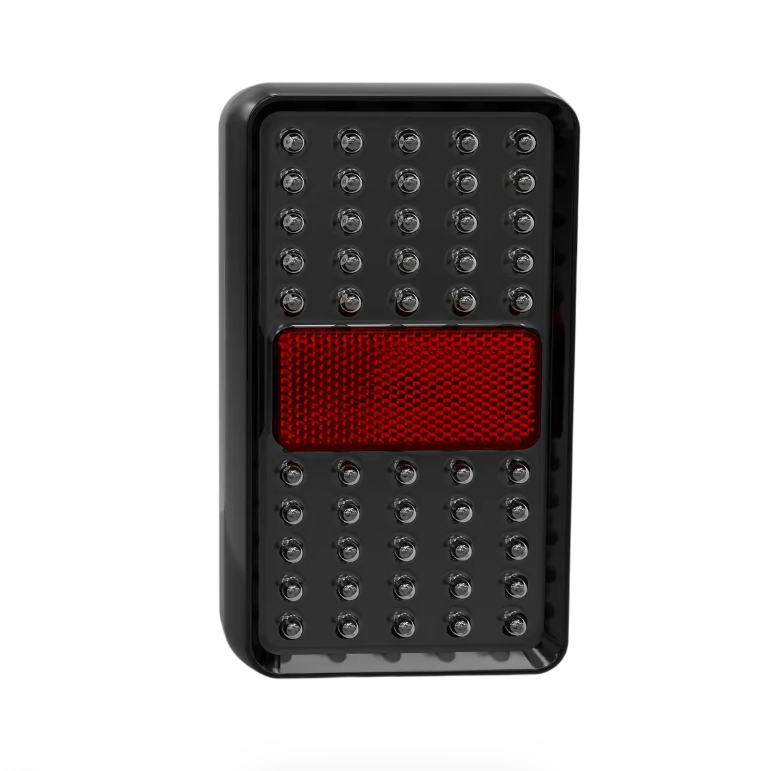

Rear trailer combination lamp handles stop, tail, indicator and reflector functions in one compact rear lamp. The lens-free 212 Series body suits boat trailers, caravans and general trailer rear lighting where water exposure and a low-profile surface mount matter.

Features

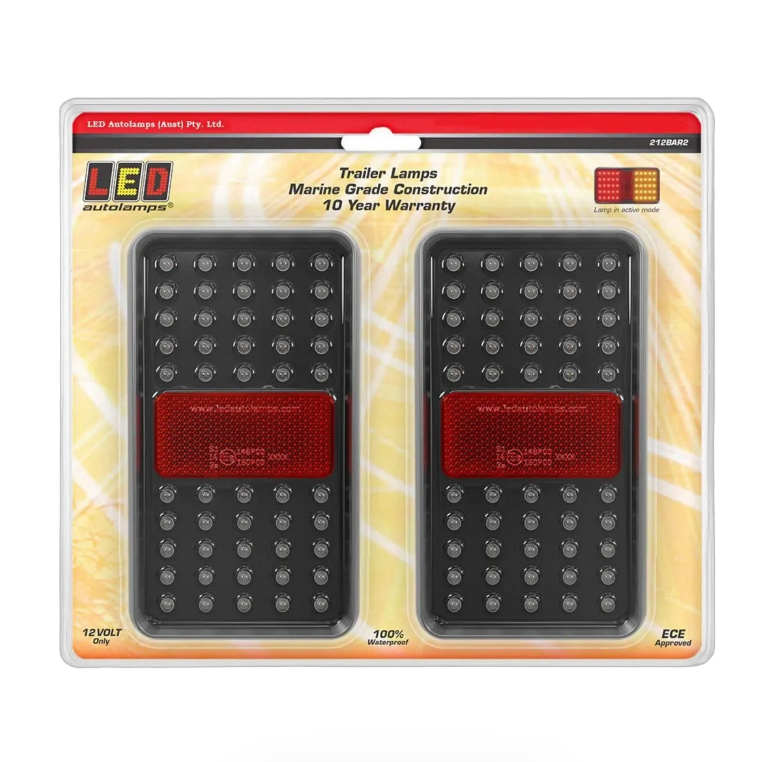

• Twin blister pack supplies left and right rear combination lamps.
• Stop, tail, indicator and reflex reflector functions in each lamp.
• IP68 rating and fully submersible construction suit exposed trailer use.
• 12V operation with 400mm cable and stainless steel mounting fittings.

Specifications and Materials

Part number: 212BAR2.

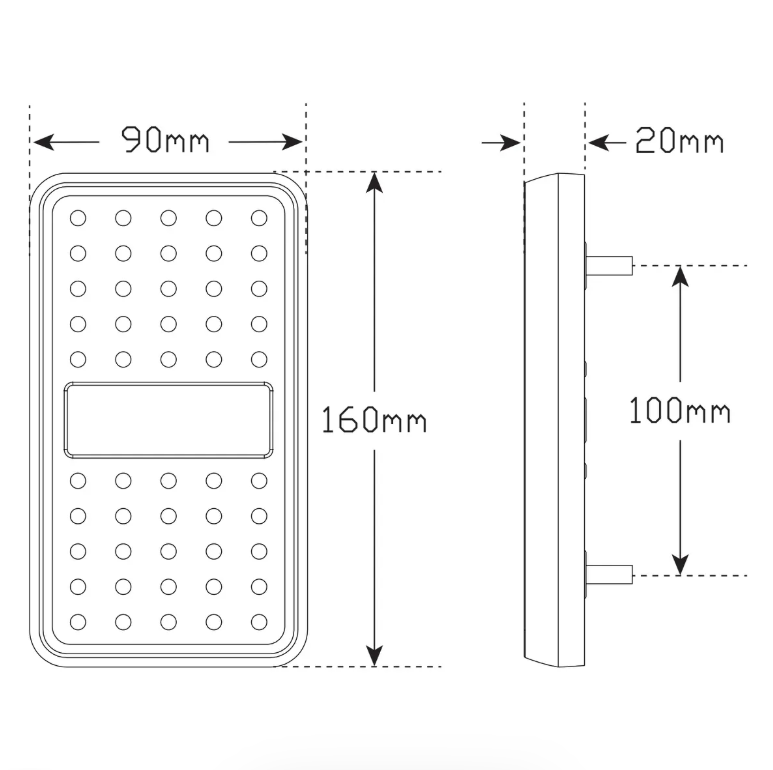

The rear trailer combination lamp measures 160mm x 90mm x 20mm and uses 25 stop/tail LEDs plus 25 indicator LEDs. It carries ECE and CTA approval for rear stop, tail, indicator and reflector functions, with a polycarbonate base and 10 year warranty.

LED Autolamps 212 Series technical page

Compatibility and Fitment

Match this rear trailer combination lamp to a 12V trailer circuit, rear stop/tail/indicator layout and flat mounting surface before ordering. Surface mount the lamp horizontally with the stainless steel bolts supplied, then run the cable through a 12mm hole behind the lamp.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check stop, tail, indicator and earth wiring before the trailer returns to service. Also confirm the lamp orientation and reflector position, because rear lamp layout affects road visibility and inspection outcomes.

Trailer Applications

Trailer builders and repairers fit this rear trailer combination lamp to boat trailers, box trailers, caravans, camper trailers and light commercial trailers. The twin pack suits paired rear lighting repairs where both sides need matching lamps.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts with practical fitment details for repairers, operators and body builders. Shop more trailer lighting parts in our LED Lights category
