Description

Overview

Cat 6 Side Direction Indicator carries clear, compact side signalling for repeater positions where space is tight and a bulky lamp will not suit the panel. The low-profile body keeps the install neat, while the clear lens suits modern builds that want a cleaner finish without losing approved side-direction function. It also helps on replacement jobs where a slim lamp makes the side of the trailer or bodywork look less cluttered.

Features

• Category 6 side direction function for approved side repeater use.
• 9-32V operation with low current draw across 12V and 24V systems.
• Polycarbonate lens and base with IP67 sealing for exposed side positions.
• 30cm cable, 3M tape and serrated plug for quick flat-surface mounting.

Specifications and Materials

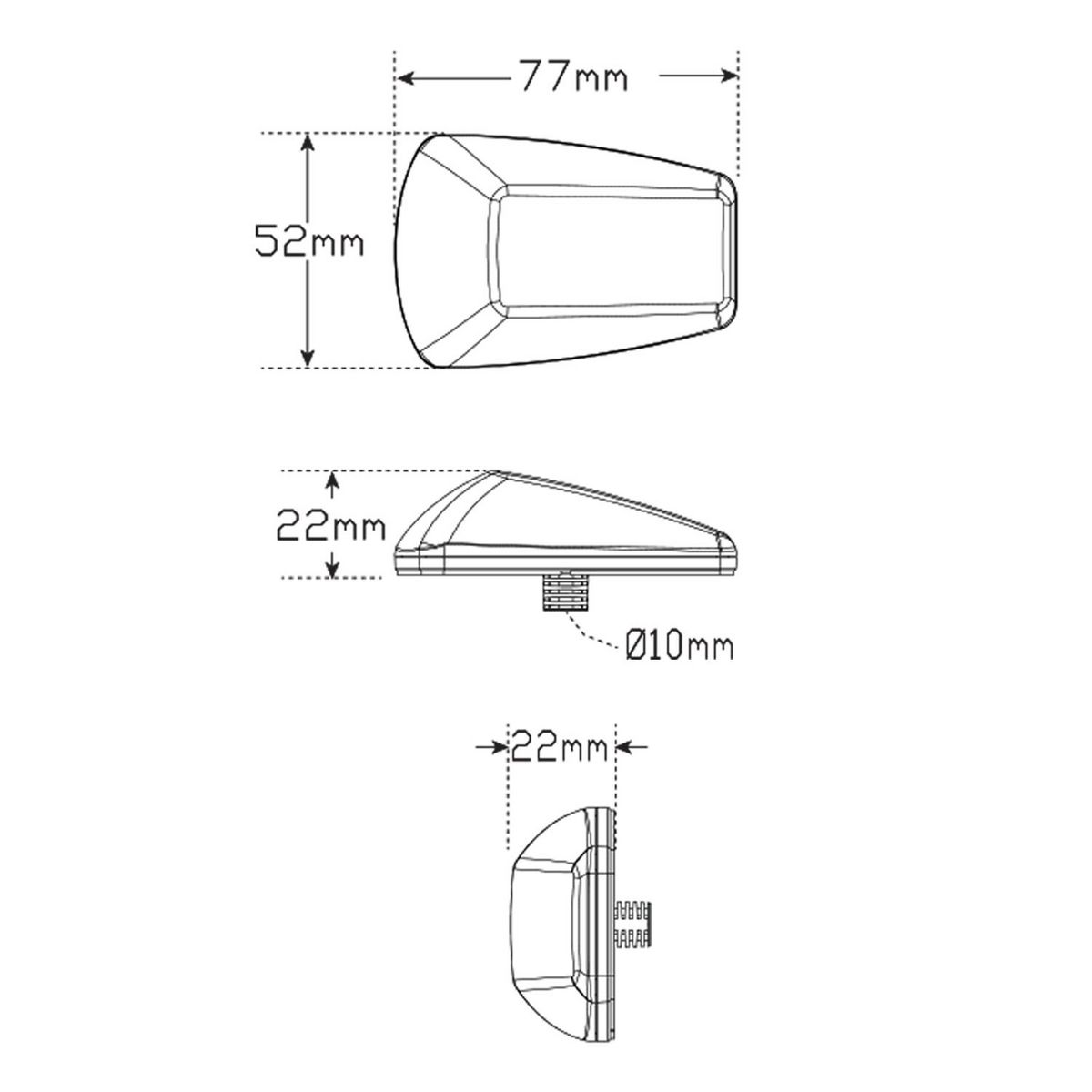

This lamp measures 77mm x 52mm x 22mm and runs a 30cm cable for side indicator wiring. The lens and base are polycarbonate, so the unit stays compact and suits exposed body-side mounting points. Part number: 77ACM2.

The official datasheet covers dimensions, current draw and mounting details for the 77 Series

Compatibility and Fitment

Check the Cat 6 Side Direction Indicator against a flat mounting area, a 10mm cable hole and the required horizontal orientation before ordering. Also confirm the LEDs will face the rear of the vehicle or trailer body and that the circuit suits a 9-32V side-direction lamp. If you are replacing a larger repeater, this lamp keeps the fit-out tidy because the housing stays compact and the mounting method avoids a separate bracket.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp horizontally, keep the surface clean so the 3M pad bonds properly, and make sure the serrated plug seats fully in the drilled hole. After wiring, test flash operation and side visibility before the vehicle goes back into service. Recheck lamp position if the panel shape or guard line could angle the light away from the correct viewing direction.

Trailer Applications

Workshops fit this Cat 6 Side Direction Indicator on trailer body sides, service bodies and GVM-upgrade builds where a slim repeater lamp helps keep the side profile neat. It also suits body repairs and replacement work when the mounting point already allows tape-and-plug installation and a compact lamp makes more sense than a protruding housing.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for repair work and fresh fit-outs, so you can match compact side indicators with the rest of the trailer lighting setup.
