Description

Overview

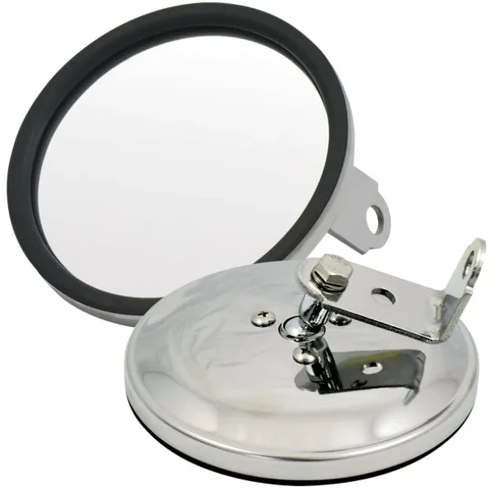

125mm Round Spotter Mirror expands blind-spot coverage on West Coast style truck mirror setups, while the compact round head keeps the added sightline close to the main mirror assembly. The bolt-on format suits replacement work and fresh fit-outs where a smaller auxiliary mirror is easier to position than a full mirror head. It also gives drivers a clearer view during tight yard work, reversing and close trailer manoeuvres.

Features

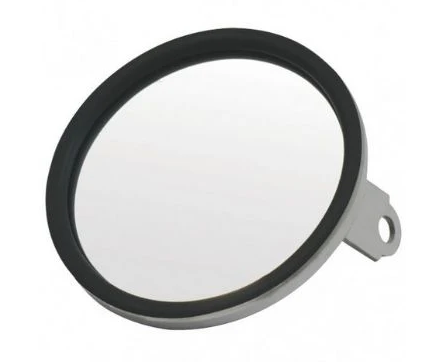

• 125mm round convex mirror with R400 glass for close-range visibility.

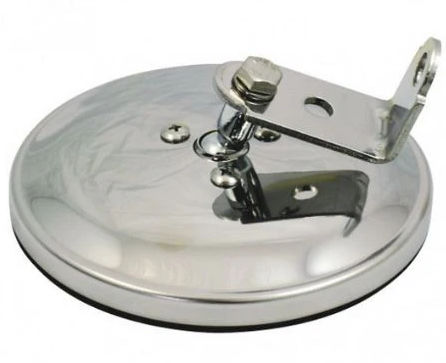

• Stainless steel housing and bracket suit exposed external mounting positions.
• Bolt-on mirror comes with bracket and clamp arm for tubular-mount fitment.
• Compact 80mm depth helps keep the mirror setup neat and controlled.

Specifications and Materials

This mirror carries a 125mm diameter face, an 80mm depth and a stainless steel housing with matching bracket hardware. The convex glass uses an R400 radius, so the mirror gives a wider short-range view than a flat mirror. Bracket and clamp arm come with the assembly, which helps keep fitment straightforward when replacing a damaged spotter or building a fresh mirror setup.

Part number: 1441031BR.

See the manufacturer technical guide for the Britax stainless steel spotter mirror family

Compatibility and Fitment

Check the mounting arm position, clamp reach and intended viewing angle before ordering, because this 125mm Round Spotter Mirror mounts with the supplied bracket and clamp arm rather than an adhesive pad. It suits West Coast style mirror arrangements and other tubular mirror setups where a compact bolt-on spotter is the better fit. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. CA5190

Compliance and Safety

Secure the clamp and bracket firmly, then confirm the mirror does not foul the main head, cab bodywork or door movement through the full adjustment range. After fitting, set the convex view so it supports the driver without obscuring the primary mirror. Inspect the housing, bracket and glass after impact or vibration damage, because a loose spotter mirror can shift the viewing angle when it matters most.

Trailer Applications

Workshops fit this 125mm Round Spotter Mirror on prime movers, rigid trucks and towing vehicles where side visibility matters during docking, reversing and low-speed trailer work. It also suits fleet replacements when the existing mirror layout already uses a West Coast style arm or another tubular mounting point. That makes it a practical match for heavy-vehicle visibility setups that need a compact bolt-on convex mirror rather than a larger head.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
