Description

Overview

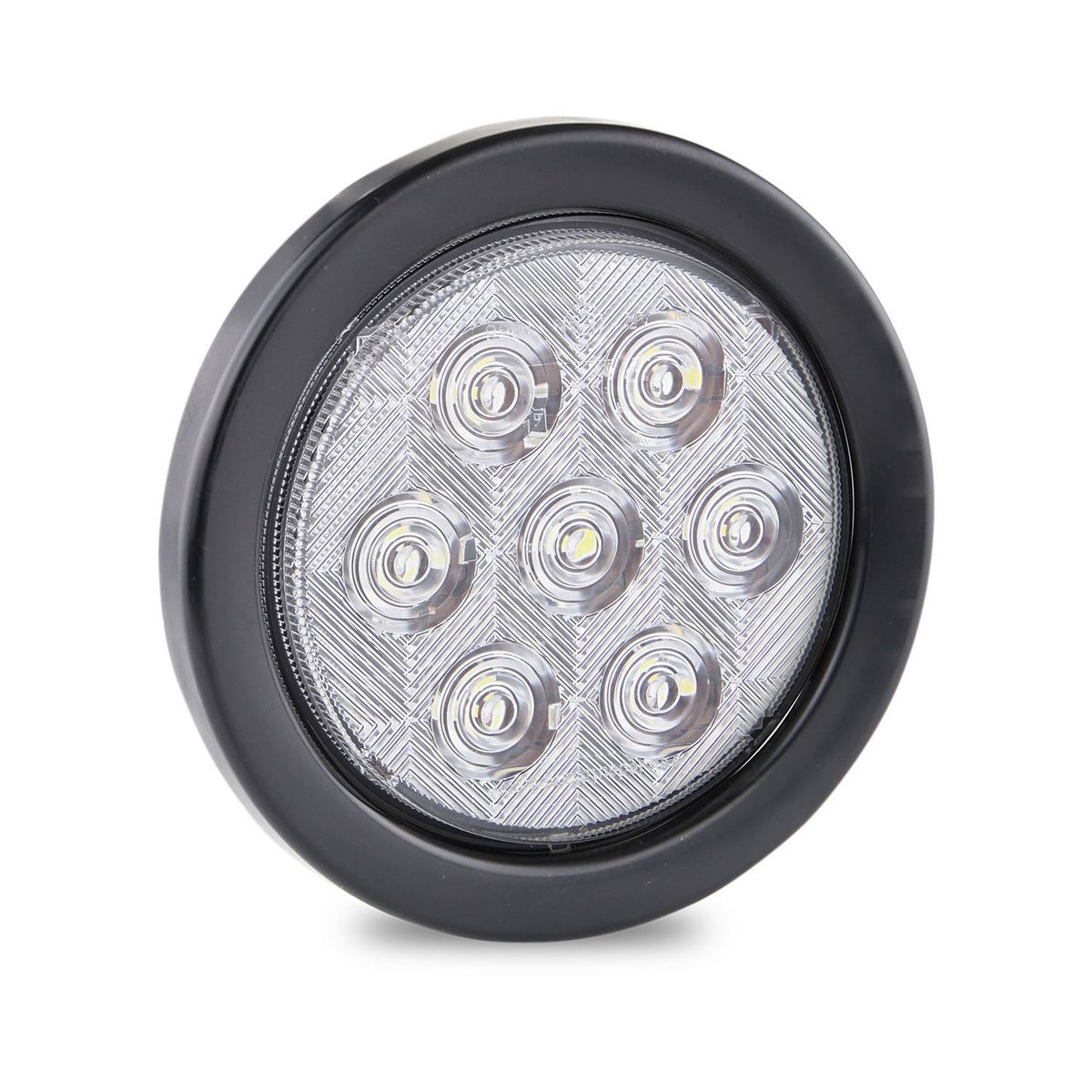

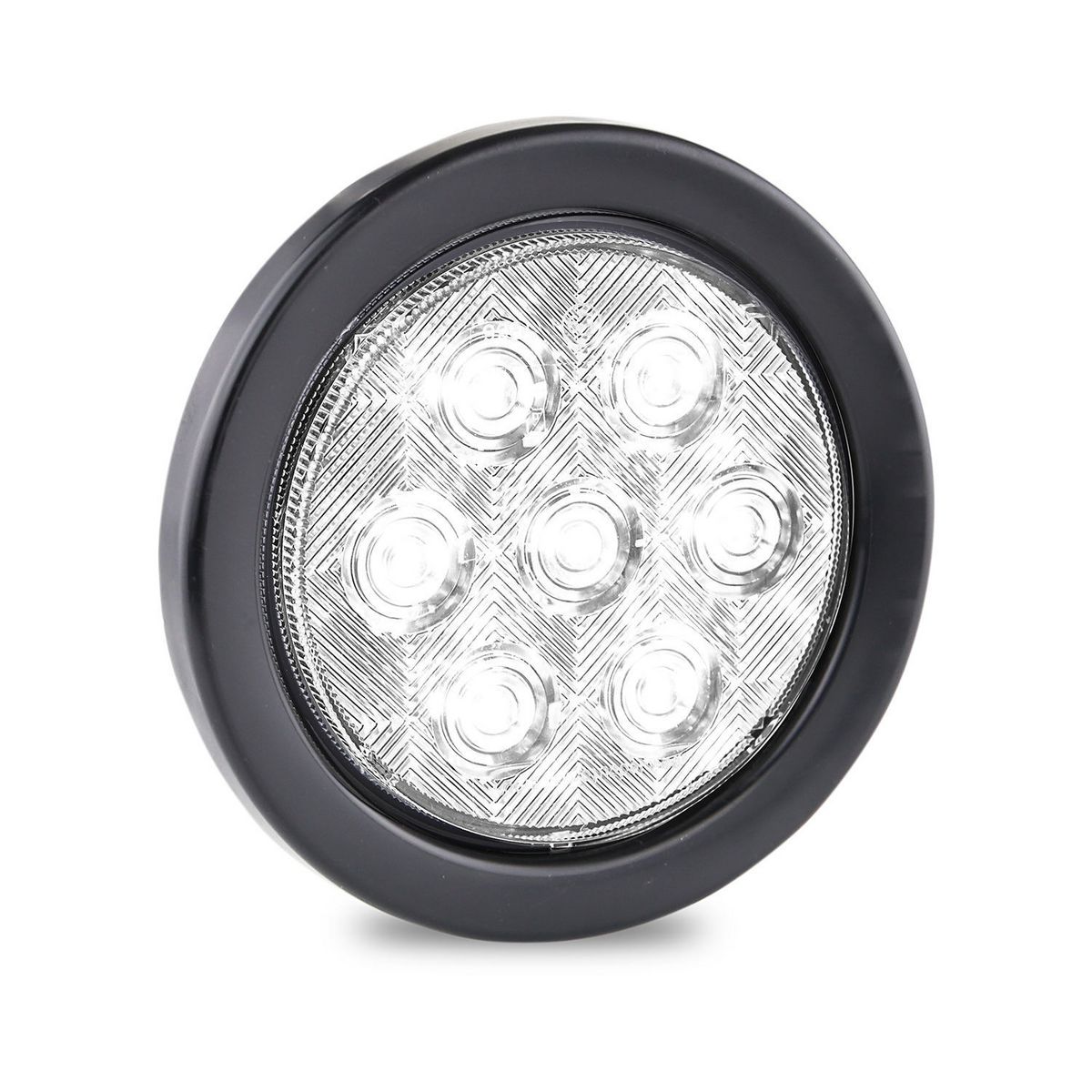

Round LED Reverse Lamp delivers bright rear manoeuvring light for trailers and heavy vehicles, while the recessed fit keeps the lamp face low and protected. The white lens and 20 LED layout suit replacement work where you want a compact reverse light with clean flush mounting and dual-voltage compatibility. It also suits rear bars, crossmembers and body panels where a low-profile lamp matters.

Features

• 20 LED reverse function with white lens for clear rear light output.
• Dual-voltage 12/24V operation suits common trailer and truck electrical systems.
• IP67 sealed housing with a hardened acrylic lens.

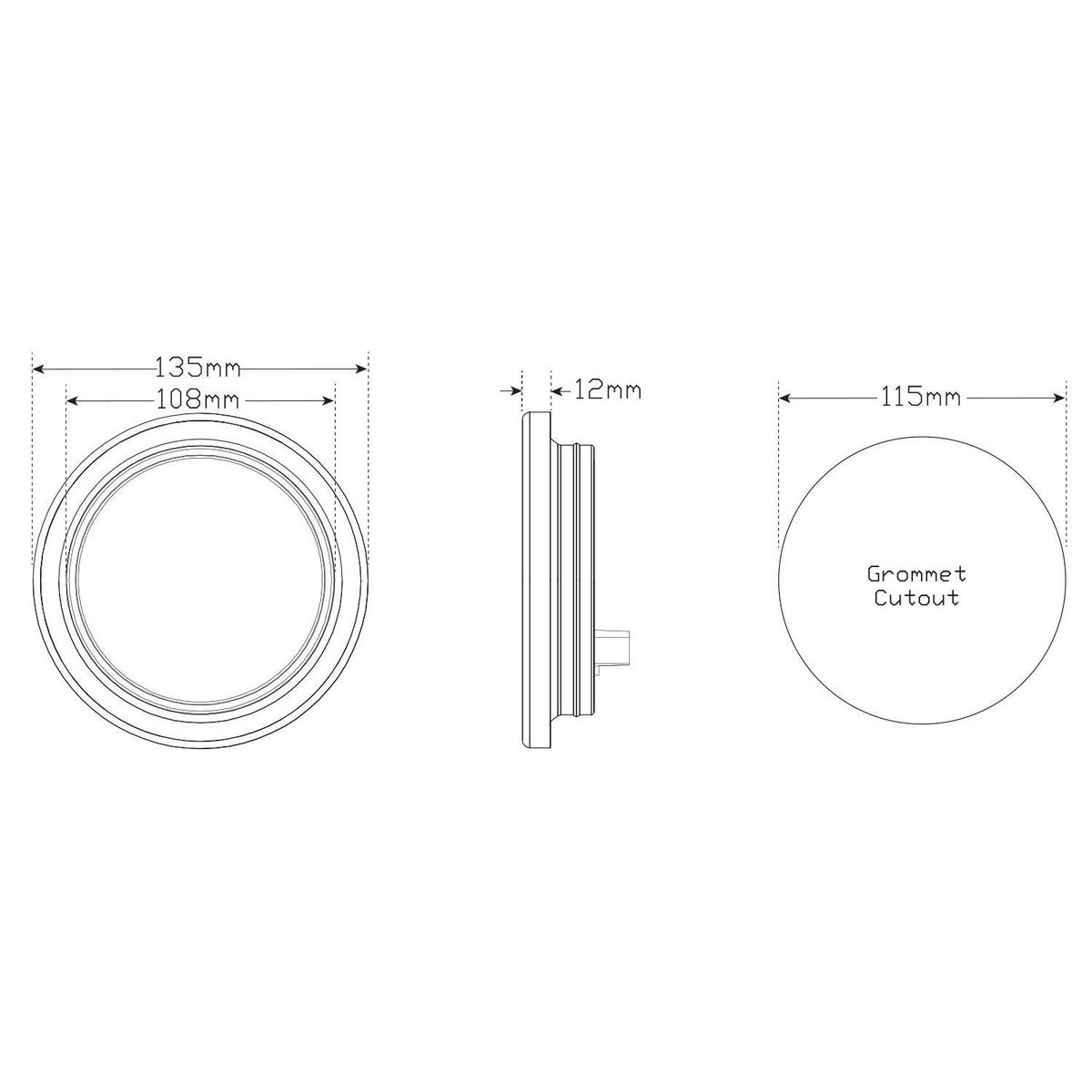

• Low-profile recessed fit with 135mm round grommet size and 115mm cut-out.

Specifications and Materials

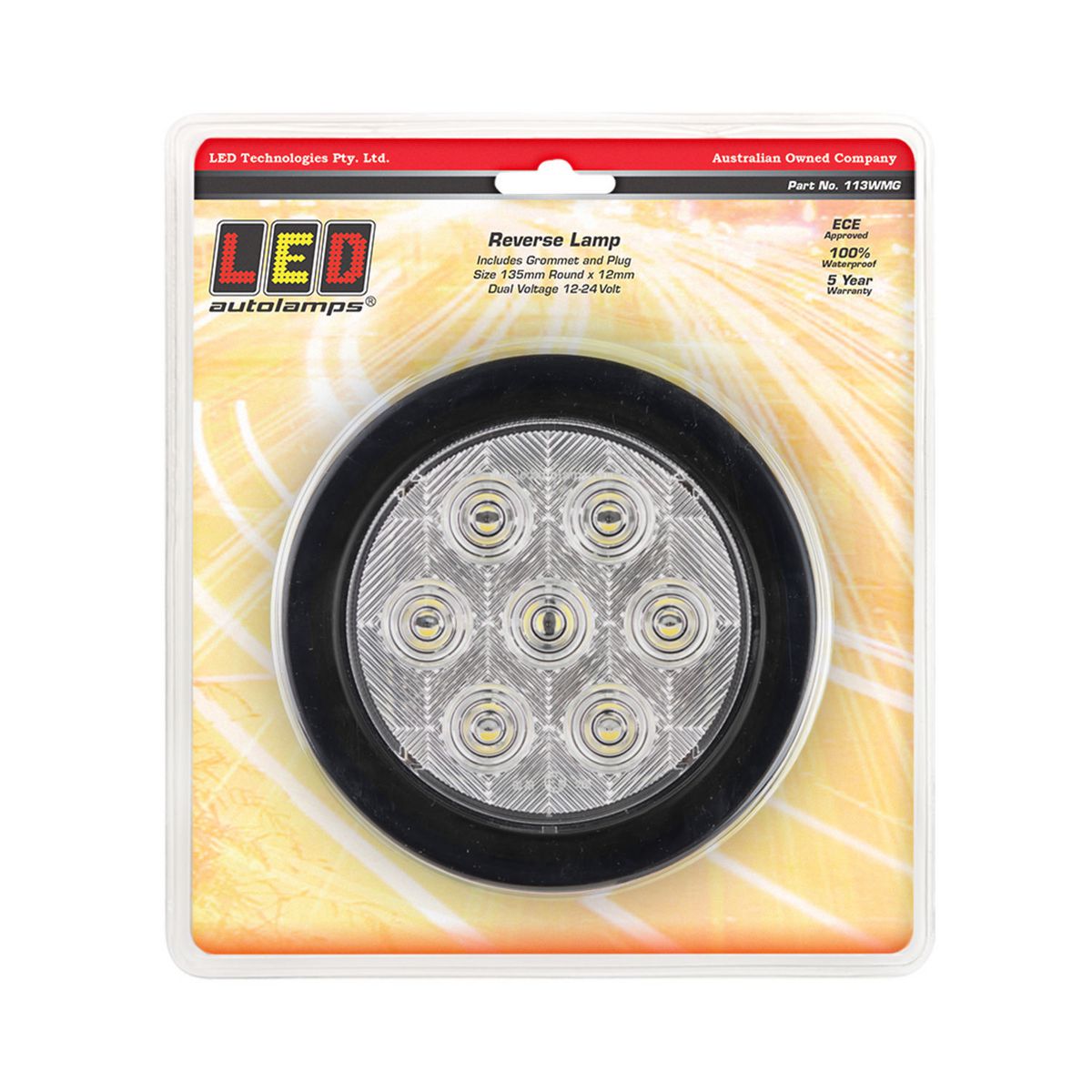

This lamp carries ECE reverse approval and a 5 year warranty. It uses a hardened acrylic lens, and the blister pack includes the mounting grommet and plug for recessed installation. The low-profile 113 Series format helps keep the rear light position neat without a bulky surface housing.

Part number: 113WMG.

For dimensions and mounting details, see the official datasheet for the 113 Series reverse lamp.

Compatibility and Fitment

Match the Round LED Reverse Lamp to a 115mm round cut-out and confirm the panel has clearance for a 135mm round grommet face. Also check that the trailer or body wiring suits a 12/24V reverse circuit and that the recessed mount style matches the existing lamp position. If the job already uses the 113 Series mounting pattern, this lamp keeps the replacement straightforward.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the lamp position, wiring polarity and reverse-light function before final assembly. After fitting, check the seal around the recess and test the lamp under load so the reverse circuit stays visible and protected from water entry. Recheck the mounting after installation if the panel or bracket has been disturbed during the changeover.

Trailer Applications

Workshops fit this Round LED Reverse Lamp on trailers, rigid bodies and related heavy-vehicle rear lighting positions where a low-profile recessed lamp suits the panel or crossmember. It also suits service replacement work when the existing opening is already set up for the 113 Series mounting pattern. That makes it a clean option for matching existing round rear lamps without changing the cut-out.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting alongside the mounting and plug components often needed for recessed lamp replacements, so you can match the setup in one pass.

See more options in our LED Lights range.
