JOST Modul S Landing Leg Set 19″ Compensating Foot

Allan Davis on 10/06/2026

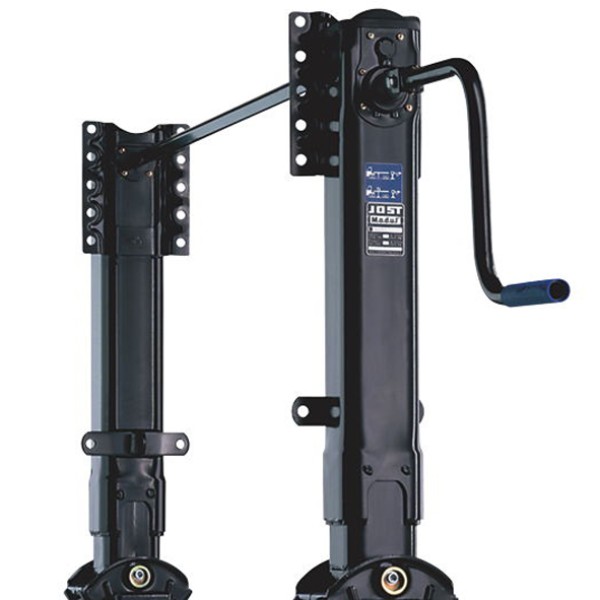

JOST Modul S landing leg set with 19 inch travel and compensating foot
JOST Modul S Landing Leg Set 19" Compensating Foot - Image 2
JOST Modul S Landing Leg Set 19" Compensating Foot - Image 3

JOST Modul S Landing Leg Set 19″ Compensating Foot

$1,475.00

JOST Modul S landing leg set suits heavy semi-trailer support applications, with 19″ travel, outside mount fitment, compensating feet, 24000kg lift capacity and 50000kg static load.

Part number LL8904G.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: LL8904 Category: Tags: , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

JOST Modul S landing leg set carries semi-trailer support loads during parking, coupling and uncoupling. This 19″ travel outside mount set uses the JOST square body layout with compensating feet, so it suits heavy trailer builds and replacement work where ground contact and lift performance both matter.

Features

  • 19″ travel landing leg set with outside mount configuration.
  • Compensating foot setup helps both feet settle on uneven yard surfaces.

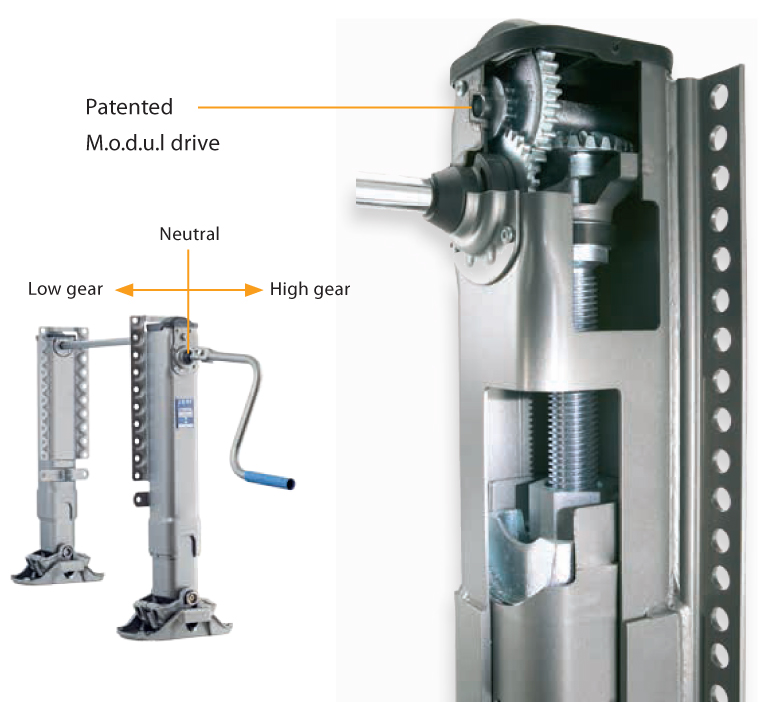

  • Two-speed Modul drive gives 0.9mm lift per turn in low gear and 15.0mm in high gear.
  • Powder coated finish helps protect the legs against weather, stone chips and road grime.

Specifications and Materials

Product type: square body landing leg set with compensating foot.

Lift capacity: 24000kg.

Static load: 50000kg.

Travel: 19″.

Mounting style: outside mount.

Part number: LL8904G.

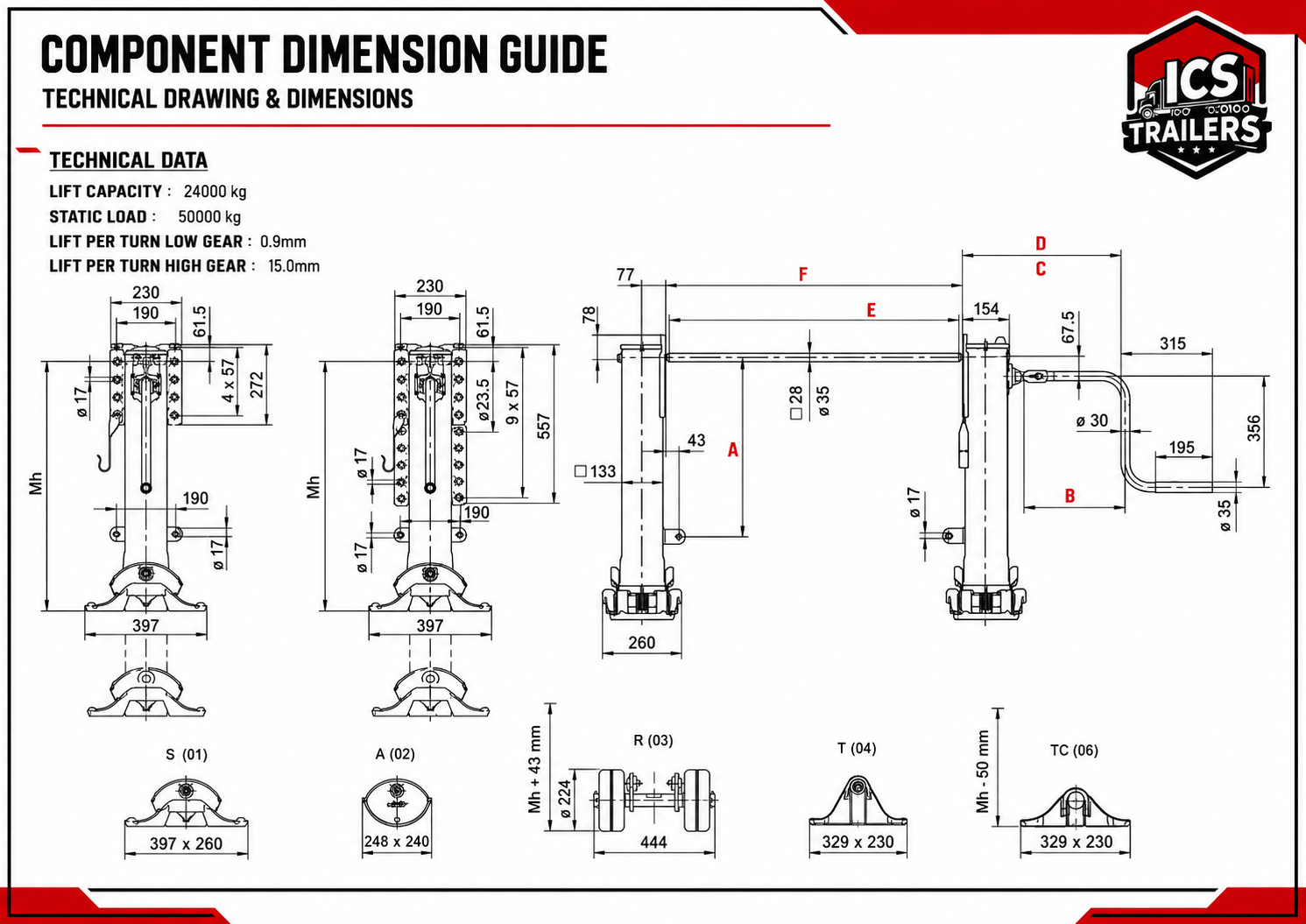

See the JOST Modul landing gear technical guide

Compatibility and Fitment

Check the mounting height, outside mount position, crank clearance, foot type and connection shaft setup before ordering. The JOST Modul S landing leg set suits heavy semi-trailer applications that need a 19″ travel square body leg set with compensating feet.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. MODULB0201010510

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Replacement component JSTJSD01 Compensating foot
Spring to suit LL8921G Modul foot spring



Compliance and Safety

Inspect the legs, feet, cross shaft, crank handle and mounting plates during service. If the trailer shows bent tubes, damaged feet, loose mounts or poor gear engagement, repair the landing gear before loading or uncoupling.

Trailer Applications

Trailer builders and repairers fit this set to heavy semi-trailers that need stable support at the front of the trailer. The compensating feet help in yards where hardstand surfaces vary, while the JOST Modul S landing leg set keeps replacement matching straightforward across Modul landing gear setups.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

MODULB0201010510



Why Choose ICS Trailers

ICS Trailers can help match JOST landing legs by travel, mount style, foot type and service parts. So, compare the existing leg plate, crank position and foot hardware before replacing a JOST Modul S landing leg set.
