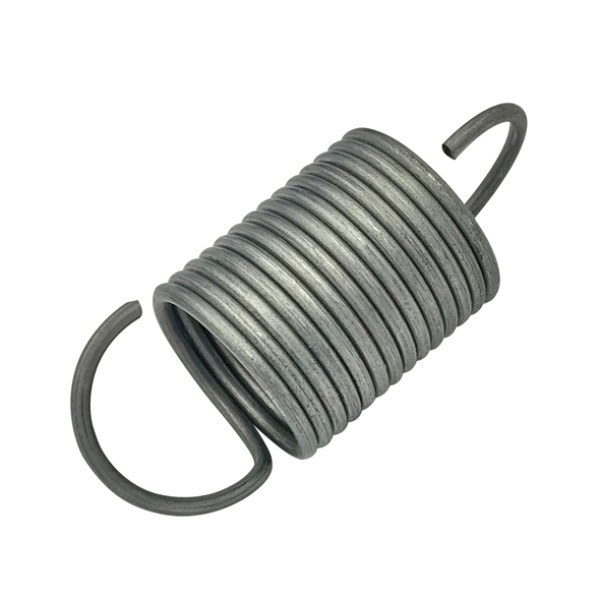

JOST Modul Foot Spring
JOST Modul Foot Spring
$37.00
JOST Modul foot spring suits compensating foot assemblies on JOST Modul landing legs, with 90mm overall length and 36mm diameter for matching worn or damaged foot springs during service.
Part number LL8921G.
Out of stock
Description
Overview
JOST Modul foot spring supports the compensating foot assembly on JOST Modul landing legs. It helps the S-foot return and move correctly, so the foot can settle against the ground during coupling, uncoupling and trailer support work.
Features
- Suits JOST Modul compensating foot assemblies.
- 90mm overall length for matching the existing spring during service.
- 36mm diameter helps identify the correct replacement spring.
- Fits the S-foot assembly used on JOST Modul landing leg setups.
Specifications and Materials
Product type: landing leg compensating foot spring.
Overall length: 90mm.
Diameter: 36mm.
Application: JOST Modul foot and landing leg spare part.
Part number: LL8921G.
See the JOST Modul landing gear technical guide
Compatibility and Fitment
Check the existing foot type, spring length, spring diameter and foot hardware before ordering. The JOST Modul foot spring suits Modul S compensating foot assemblies, and JOST identifies the spring as part of the S-foot spare parts breakdown.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. JS0012900, XB60066
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Component of | LL8911 | Compensating foot |
| Component of | JSTJSD01 | S-foot assembly |
| Used with | LL8904G | Modul S landing leg set |
Compliance and Safety
Inspect the foot pivot, spring seating area and fastening hardware during service. If the spring has stretched, cracked, lost tension or corroded heavily, replace it before the landing leg returns to operation.
Trailer Applications
Workshops replace this spring when servicing JOST Modul landing legs with compensating feet. It suits trailer repair work where the foot movement has become loose, uneven or slow to return after loading.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| JS0012900 | XB60066 |
Why Choose ICS Trailers
ICS Trailers helps match JOST Modul landing leg parts by foot type, service component and replacement hardware. So, compare the spring size and compensating foot assembly before replacing a JOST Modul foot spring.
