Description

Overview

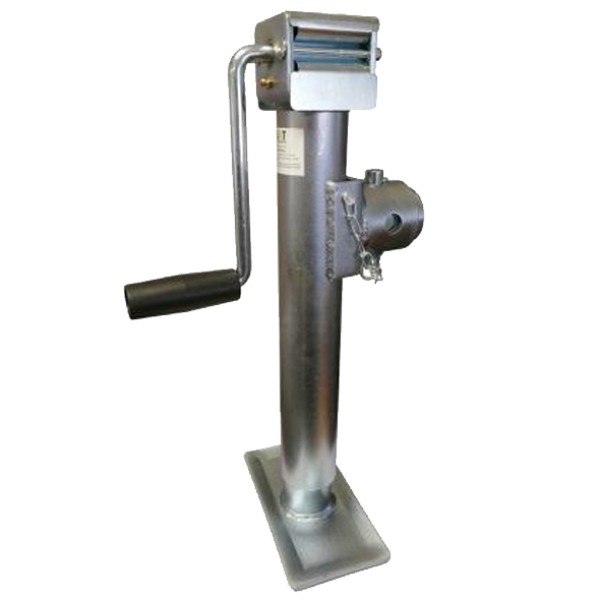

Side wind jockey leg 1590kg supports trailer drawbars, agricultural equipment and industrial trailer setups during parking, coupling and uncoupling. The side wind handle gives practical access where top clearance is limited, while the tube mount body suits matching 57mm round mounting setups.

Features

• 1590kg static load rating for trailer and equipment support.
• Side wind handle suits drawbar layouts with limited top access.
• 57mm round tube mount fits matching tube-style mounting brackets.
• Zinc plated finish helps protect the leg body during workshop and yard use.

Specifications and Materials

Product type: tube mount side wind jockey leg.

Static load rating: 1590kg.

Tube size: 57mm round.

Screw stroke: 381mm.

Finish: zinc plated.

Retracted height: 585mm.

Extended height: 966mm.

Part number: LL2056.

Match trailer support components against the Australian trailer standards bulletin

Compatibility and Fitment

Check the tube diameter, mounting bracket, closed height, open height and handle clearance before ordering. The side wind jockey leg 1590kg suits 57mm round tube mount setups that need a higher static load rating and side handle operation.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. LT3153C, AL01446

Compliance and Safety

Inspect the mounting bracket, swivel lock, handle and tube before use. If the bracket or leg shows bending, cracking or heavy wear, replace the affected parts before loading the jack.

Trailer Applications

Workshops fit this style of jockey leg to trailers, farm equipment and industrial drawbar setups. It suits applications that need a 1590kg support rating, 57mm tube mount and side wind operation.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers helps match trailer support legs by load rating, tube size, mounting style and operating height. So, compare the existing leg carefully before ordering a side wind jockey leg 1590kg.
