Description

Overview

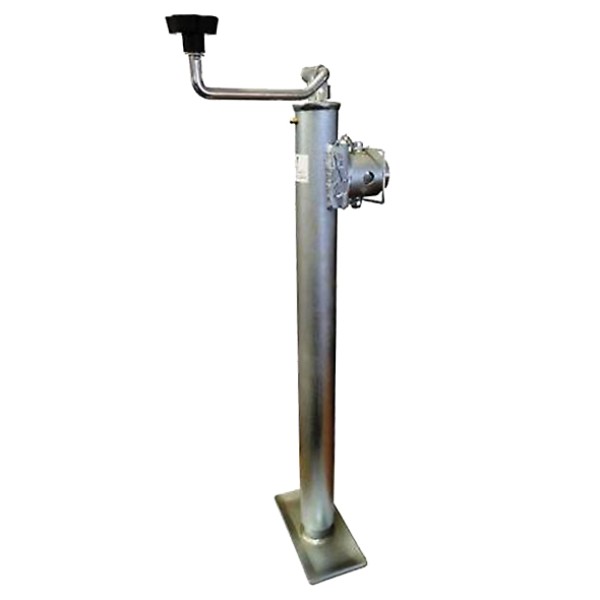

Top wind swivel jockey leg 1350kg supports trailer drawbars, agricultural equipment and industrial trailer setups during parking, coupling and uncoupling. Its tube mount body suits high drawbar applications where a longer jack body and simple top wind operation make servicing and positioning easier.

Features

• 1350kg static load rating for trailer and equipment support.
• Top wind handle position keeps operation accessible from above the drawbar.
• 57mm round tube mount suits matching tube-style mounting brackets.
• Zinc plated finish helps protect the leg body during workshop and yard use.

Specifications and Materials

Product type: tube mount top wind jockey leg.

Static load rating: 1350kg.

Tube size: 57mm round.

Finish: zinc plated.

Retracted height: 580mm.

Extended height: 674mm.

Part number: LL2055.

Match trailer support components against the Australian trailer standards bulletin

Compatibility and Fitment

Check the mounting tube, drawbar height, closed height and open height before ordering. The top wind swivel jockey leg 1350kg suits tube mount setups that need a 57mm round leg and a longer body section for higher drawbar clearance.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. ST3154CEXT, AL02678

Compliance and Safety

Inspect the mounting bracket, swivel lock and handle before use. If the tube, bracket or locking section shows bending, cracking or heavy wear, replace the damaged parts before loading the jack.

Trailer Applications

Workshops fit this style of jockey leg to trailers, farm equipment and industrial drawbar setups. It suits applications that need a 1350kg support rating, 57mm tube mount and top wind operation.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers helps match trailer support legs by load rating, tube size, mounting style and operating height. So, compare the existing leg carefully before ordering a top wind swivel jockey leg 1350kg.
