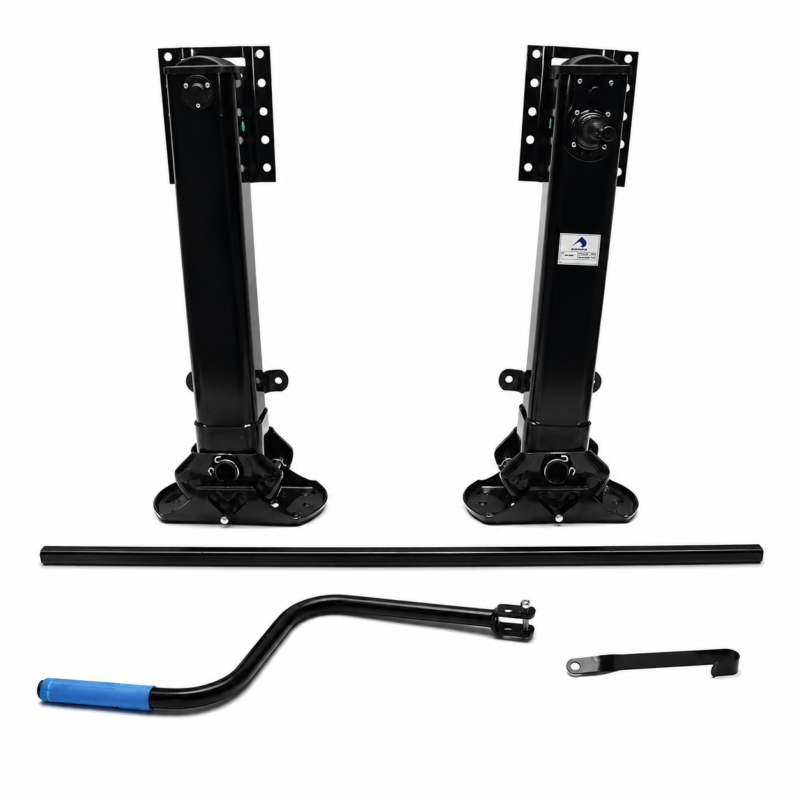

19in Compensating Foot Landing Leg Set

Allan Davis on 13/08/2026

19in compensating foot landing leg set

19in Compensating Foot Landing Leg Set

$650.00

19in stroke landing leg set for heavy semi-trailer support, with compensating feet, outside-mount fitment and two-speed operation for compatible MODUL-style applications. Match the existing travel, mounting height, foot type and crank position before replacement.

Part number 096.66937A.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: 096.66937A Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

This 19in landing leg set provides the front support used to hold a semi-trailer when it is uncoupled from the prime mover. The heavy-duty telescopic design suits replacement of compatible MODUL-style landing legs where the stroke, mounting arrangement and operating configuration match.

Features

  • 19in stroke for semi-trailer landing leg applications
  • Telescopic landing gear construction
  • High and low gear operation for winding and lifting
  • MODUL-style configuration for compatible replacement applications

Specifications and Materials

The landing legs use a geared telescopic arrangement designed to raise, lower and support the front of the trailer during coupling, uncoupling and parking.

Part number: 096.66937A.

See the JOST Modul B landing gear technical information

Compatibility and Fitment

Check the existing landing leg stroke, mounting height, back plate position, foot configuration, crank arrangement and connection shaft setup before replacement. MODUL-style landing legs are available in several mounting heights and configurations, so the existing installation should be matched before fitting.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes.

MODULB0201010510, B02

Compliance and Safety

Inspect the landing leg mounting points, bracing, connection shaft and winding mechanism before installation. Both legs must operate together without binding and remain securely braced to the trailer chassis before the trailer is supported while uncoupled.

Trailer Applications

Landing legs are fitted at the front of semi-trailers to support the trailer when the prime mover is removed. This set suits repair or replacement work where a 19in stroke and compatible MODUL-style mounting arrangement are required.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

MODULB0201010510 B02



Why Choose ICS Trailers

Landing legs need to match more than just the stroke length. Mounting height, back plate position, foot type, crank side and connection shaft arrangement can all affect installation. ICS Trailers can compare the existing landing legs, mounting measurements and photos before ordering, particularly when replacing older MODUL-style equipment or changing a complete landing leg set.
