Description

Overview

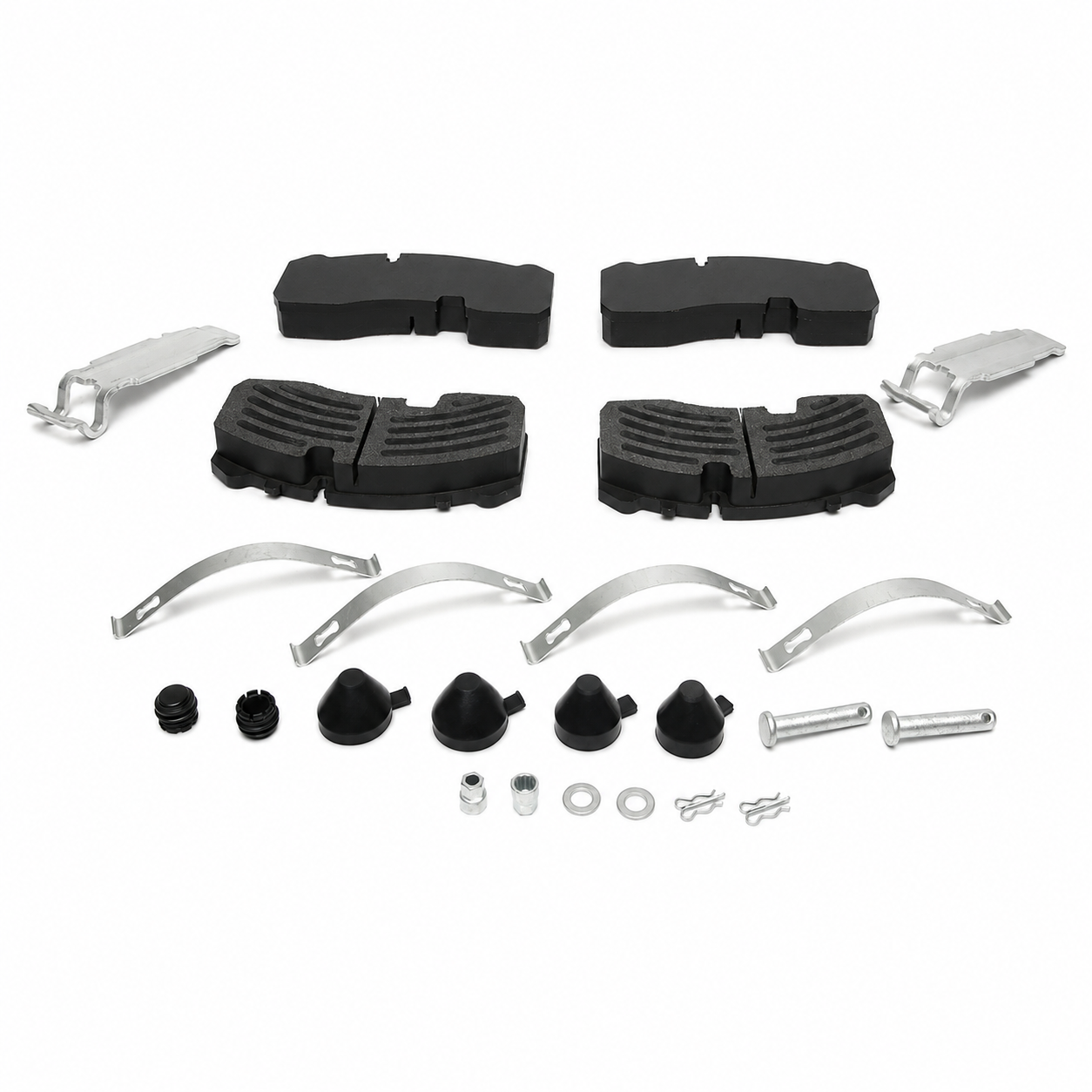

The 210mm BPW disc brake pad kit suits compatible heavy-vehicle disc brake applications using the 210mm wide pad profile. The set is used with Knorr SB6/SN6 and corresponding BPW brake arrangements where the existing pad shape and interchange numbers match.

Features

• Four disc brake pads supplied as an axle set
• 210mm wide pad profile
• 92.5mm pad height and 30mm thickness
• Supplied with fitting accessories
• Prepared for a brake pad wear indicator

Specifications and Materials

Brake pad dimensions are 210mm wide × 92.5mm high × 30mm thick, with WVA 29165 and 29268 pad profiles associated with this brake family.

Part number: 096.616-01.

Use the BPW technical download centre when checking axle and brake service information

Compatibility and Fitment

Match the pad dimensions, caliper type, wear-indicator provision and existing part reference before ordering. Compatible applications include BPW axle installations using Knorr SB6/SN6 and related SB3745 brake arrangements.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes.

21.29093K, 21.29165, 21.29165K, 76450, 00.203.12.50.0, 02.031.21.50.0, 05.092.90.04.0, 05.092.90.05.0, 05.092.90.10.0, 05.092.90.22.0, 09.801.02.75.0, 09.801.02.93.0, 09.801.06.21.0, 09.801.06.35.0, 09.801.06.43.0, 09.801.07.09.0, 09.801.07.24.0, 09.801.08.15.0, 09.801.08.15.1, 29.306.30.01.4, 0509290040, 0509290050, 0509290100, 0980102750, 0980102930, 0980106210, 0980106350, 0980106430, 0980107090, 0980107240, 0980108150, 0980108151, 2930630014, 0908338, 1534090, 1961734, 908338, P A1 102, P A6 028, P A6 528S, PA6528S, 584.001, 584.004, 03.02.02.300566, 29165, DT10.14001, IT 0602S 29165, IT0602S29165, 6098 010 643, 16607, 2916530004245754, 2919730004145694, 2926530004145754, BL1749A4, BL1749B4, BL1749C4, BL1749D4, BL1749G4, BL2208A1, BL2208B1, BL2232A1, BL2232B1, 1911659010, JCP1001, JCP2001, JCA1084.00, JCA1084.80, JCA814.00, JCA814.80, II329900062, II376580062, K001534, K002625, K002733, K003965, K011469, K060273K50, K078206K50, 05P1185, 05P1185K, 05P1897, MDP3165K, MDP9007, 22-0595-0, 025 290 9530, 025 290 9530/PD, 025 291 6530, 086.306-50A, 086.331-00A, 08630650A, 1182958, 29165-210,5X92,7X29, 291652105X927X29, 55917381PRO, 096.616, 096.616/A, 096616, 096616A, 03.120.8700.110, 03.120.8700.111, 03.120.8700.410, 03.120.8700.41P, 03.120.8700.761, 2916504, 2926801, 2930601, 2932003, 2932004, 90.35.010, GDB5092, 541675, 541706, 541727, 882204, 882205, 882207, 882404, 882407, 340 901 061 2, 341 901 061 2, 342 901 061 2, 343 901 061 2, 344 901 061 2, 345 901 061 2, 346 901 061 2, 347 901 061 2, 348 901 061 2, 349 901 061 2, 350 901 061 2, 351 901 061 2, 352 901 061 2, FB4644

Compliance and Safety

Replace the pads as an axle set and inspect the brake discs, caliper slides, adjustment mechanism and fitting hardware during installation. Confirm the wear-indicator arrangement and follow the applicable axle and brake service procedure before returning the trailer to service.

Trailer Applications

This pad set suits heavy trailer and commercial-vehicle disc brake applications using the matching 210 × 92.5 × 30mm profile and BPW or Knorr interchange references.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The main selection check for this 210mm BPW disc brake pad kit is the pad profile and caliper arrangement. The large interchange range reflects how widely this shape is used, but nearby heavy-vehicle brake pads can have similar dimensions while using different backing plates or wear-indicator provisions. ICS Trailers can compare the old pad, caliper model and reference numbers before ordering.
