The 32 Series 17″ Landing Leg Set is a heavy-duty manual support set for semi-trailers, designed around the FUWA K-Hitch KH32P series. This 17-inch version uses 430mm travel and compensating feet, giving fleets and workshops a matched pair for supporting the front of a trailer during coupling, uncoupling and servicing.

Features

• 80 tonne static load capacity
• 28.5 tonne lift capacity
• Two-speed gearing with 0.75mm per turn in low gear and 6.73mm per turn in high gear
• 430mm travel, approximately 17 inches
• 936mm closed length and 1366mm open length
• Compensating foot configuration

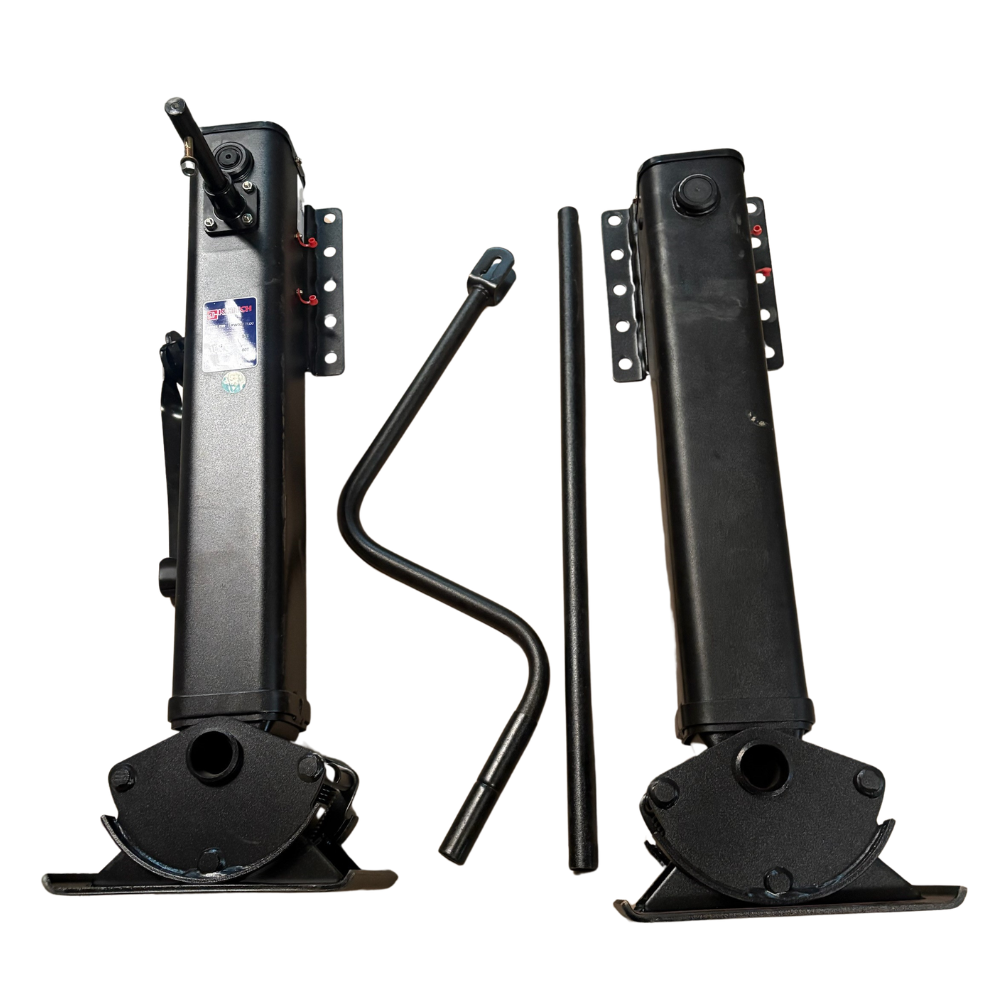

• Set shown with geared leg, slave leg, connection shaft and crank handle

Specifications and Materials

The KH32P series uses a manual two-speed landing leg design. For this 17-inch compensating-foot configuration, travel is 430mm, closed length is 936mm and open length is 1366mm.

Part number: KH32P0001/S.

See the FUWA K-Hitch landing leg technical data

Compatibility and Fitment

Match the existing landing leg series, travel, closed length, foot style and mounting arrangement before ordering. The 17-inch compensating-foot version differs from the 14-inch and 19-inch KH32P options, as well as self-levelling foot versions. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. FW32117E00

Compliance and Safety

Install the geared and slave legs level and square to each other. Operate the legs with the trailer and prime mover park brakes engaged, use low gear whenever the legs are under load, and lower the feet only onto level, solid ground. Do not change gears under load or over-stroke the legs.

Trailer Applications

This landing leg set suits semi-trailer support where a heavy-duty 430mm travel manual leg set with compensating feet is required. The 32 Series 17″ Landing Leg Set suits replacement work where both legs are being renewed as a matched operating pair.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Landing leg sets need more than a quick visual match. Travel, closed length, foot type and mounting arrangement all matter, especially when replacing a complete pair. If you are unsure, send through the old leg markings, photos and key dimensions so ICS Trailers can help compare the setup before you order. That makes it easier to confirm the 430mm travel and compensating-foot configuration for the trailer repair.
