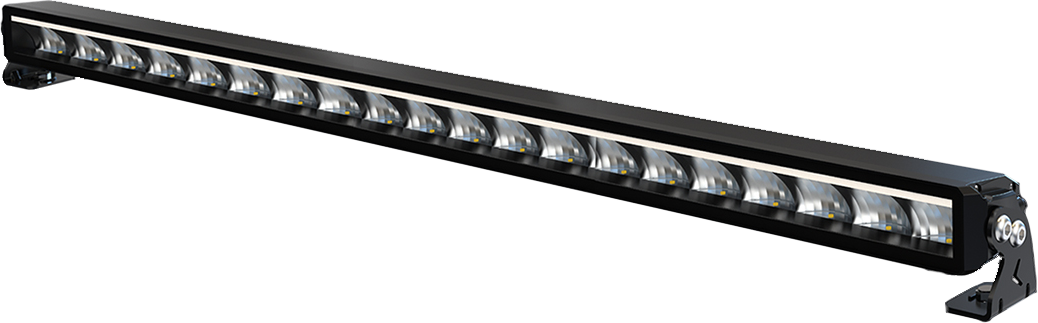

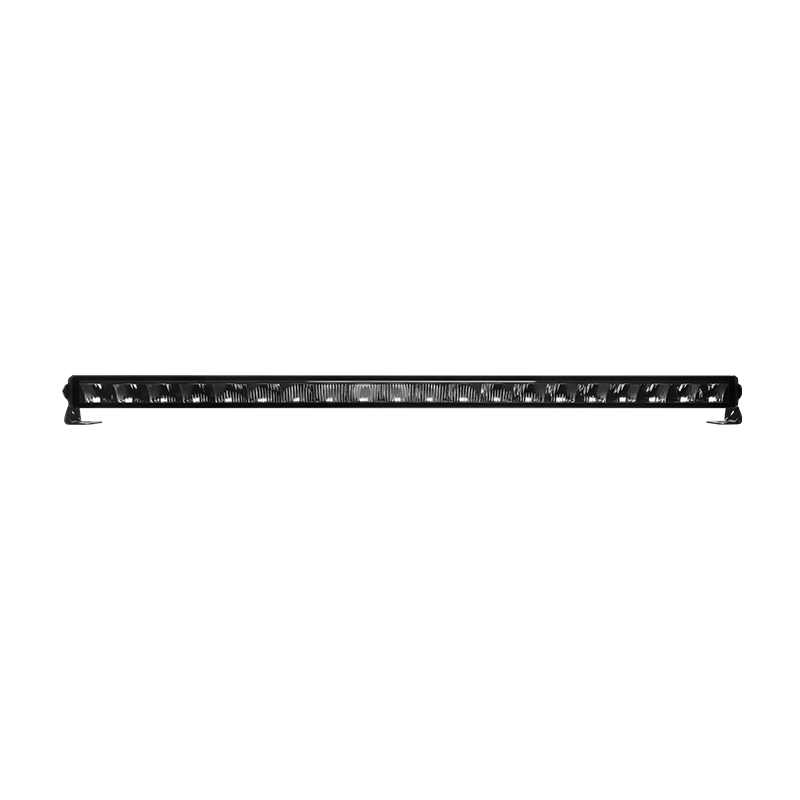

White Vision Rayzer 42″ Single Row Light Bar
White Vision Rayzer 42″ Single Row Light Bar
$322.00
White Vision Rayzer 42″ single row light bar suits trailer, 4×4 and fleet lighting setups, with park function, 10-30V Varivolt operation, 150W output, 12500lm rating and included stainless steel mounting kit.
Part number LLB1142.
Description
Overview
White Vision Rayzer 42″ single row light bar delivers long-range and wide-beam LED lighting for trailer, 4×4, fleet and off-road applications. This 42″ Rayzer bar combines a low-profile single row body with an integrated position light, so it suits builds that need strong forward lighting without a bulky housing.
Features
- 42″ single row LED light bar with park / position light function.
- 150W output with 12500lm rating for the 42″ model.
- Free form reflector optics produce a consistent combination beam.
- Includes stainless steel mounting kit for bracket mount installation.
Specifications and Materials
Product type: single row LED light bar with park function.
Series: Rayzer.
Voltage: 10-30V Varivolt.
Power: 150W.
Lumen output: 12500lm.
Lens: polycarbonate.
Housing: aluminium.
Mounting: bracket mount.
Environmental rating: IP67.
Dimensions: 1045mm × 75mm × 65mm.
Part number: LLB1142.
See the Whitevision Rayzer 42 inch product guide
Compatibility and Fitment
Check available mounting width, bracket position, wiring layout and voltage range before ordering. This bar suits 10-30V systems and needs enough frontal space for a 1045mm light bar body.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | LLB1112 | 12″ single row light bar |
| Related version | LLB1122 | 22″ single row light bar |
| Related version | LLB1132 | 32″ single row light bar |
Compliance and Safety
Confirm the installation position, switching method and road-use requirements before fitting auxiliary lighting. Also check that the beam angle, wiring protection and mounting hardware suit the vehicle or trailer application.
Trailer Applications
Workshops fit this style of LED light bar to trailers, service bodies, 4x4s, mine vehicles and fleet equipment that need stronger night visibility. The White Vision Rayzer 42″ single row light bar suits applications where a slim bar gives enough clearance across the front or rear mounting area.
Why Choose ICS Trailers
ICS Trailers helps match trailer lighting by voltage, mounting style, body size and lighting function. So, compare the available mounting space and wiring setup before replacing or adding a White Vision Rayzer 42″ single row light bar.
