Landing Leg Set 470mm JOST Modul B

Allan Davis on 04/06/2026

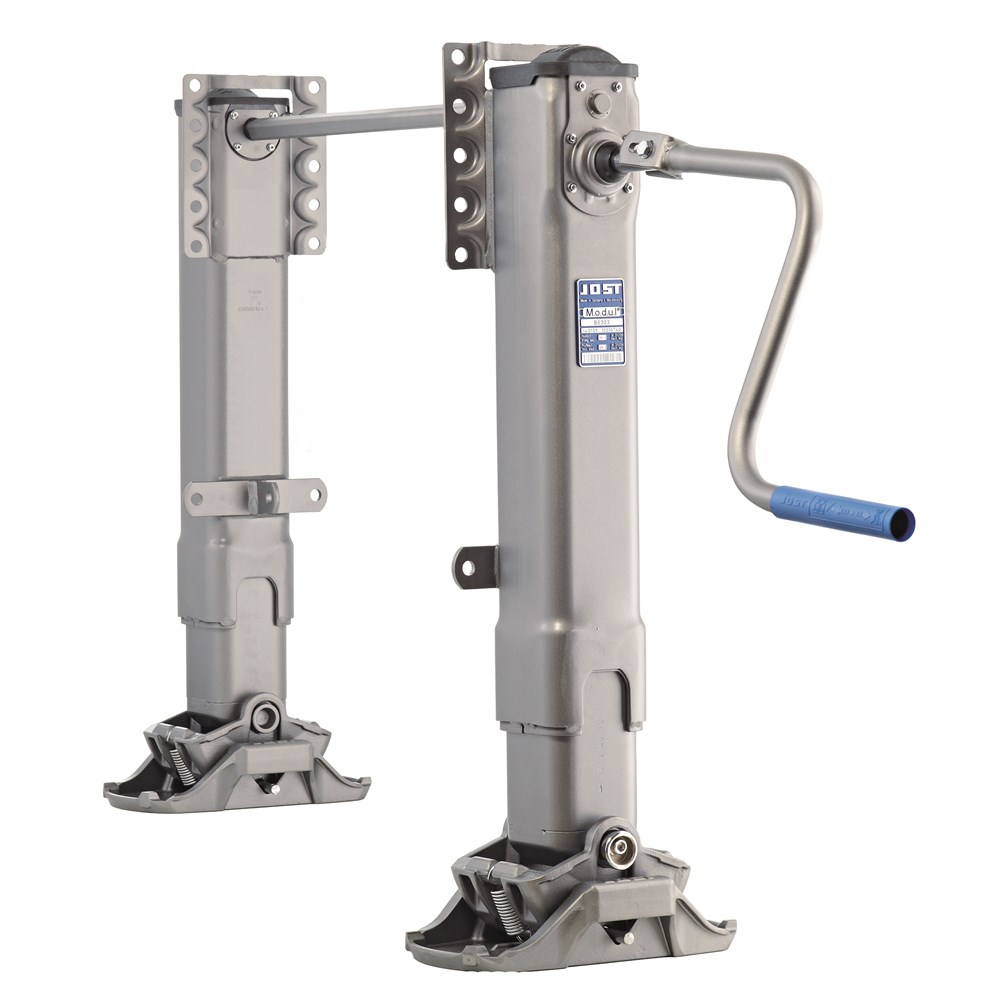

JOST Modul B landing leg set with compensating feet

Landing Leg Set 470mm JOST Modul B

$1,360.00

Landing leg set for JOST Modul B trailer applications with 470mm lift, S compensating feet and high-low gear operation for stable semi-trailer support.

Part number MODULB0301010510.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: MODULB0301010510 Category: Tags: , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

JOST Modul B landing leg set supports semi-trailers with a 470mm lift and S compensating foot setup. It suits trailer landing gear replacement where the existing installation uses the Modul B square-body leg pattern and matching operating height.

Features

  • 470mm lift configuration for Modul B trailer landing gear.
  • Complete set format with S compensating feet for trailer support.
  • Protected internal drive with high and low gear operation.
  • Powder-coated finish helps resist corrosion in trailer service.

Specifications and Materials

Part number: MODULB0301010510.

The JOST Modul B landing leg set follows an 800mm mounting-height configuration with 470mm lift and S compensating feet. The technical data lists 24 t lifting capacity per set, 50 t static test load, 0.9mm lift per handle turn in low gear and 15.0mm in high gear.

This set follows the 520mm crank and 1790mm connection-shaft configuration, so match those details against the trailer before ordering.

Read the official Modul landing gear guide for manufacturer specifications

Compatibility and Fitment

Match mounting height, lift, foot type, mounting plate position, crank side and connection shaft length before ordering. Also compare the mounting holes, chassis brackets and winding-handle clearance against the existing trailer setup.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. B0301-010510, B0301010510, B0301 010510, B301010510

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Replacement foot JSD01 S compensating foot
Connection shaft JSL10 1790mm connection shaft
Crank handle JSU05 520mm crank with parking hook
Foot spring JSE0012900 Compensating foot spring
Clamp assembly JSE010.010 Clamp with angle



Compliance and Safety

Support the trailer safely before removing or fitting landing gear. After installation, check bracket condition, mounting fasteners, winding operation and foot movement before returning the trailer to service.

Trailer Applications

Workshops fit this JOST Modul B landing leg set to semi-trailers that need matched manual landing gear with compensating feet. It suits fleet repair work where the landing leg height, lift and shaft length need to match the trailer’s existing setup.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

B0301-010510 B0301010510 B0301 010510
B301010510



Why Choose ICS Trailers

ICS Trailers helps match landing gear by lift, foot type, shaft length and trailer fitment, so the set can be checked properly before it reaches the workshop.

View more parts in the Trailer Parts category

Online prices apply to website orders only. In-store pricing may differ.
