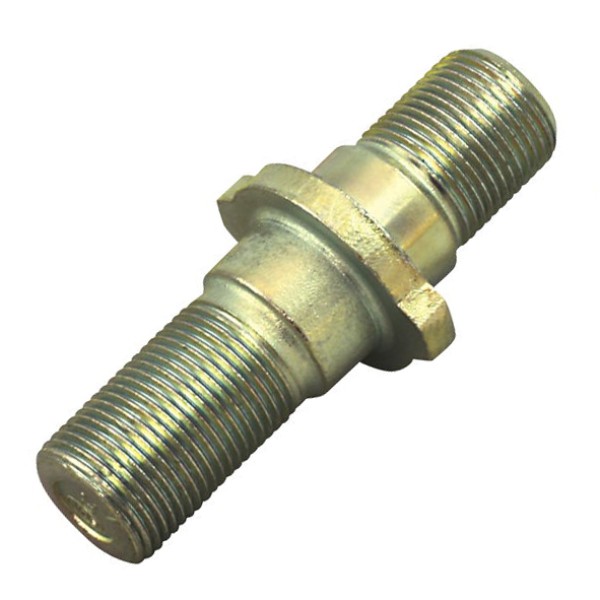

The right hand Jap 20mm wheel stud is a handed wheel-end fastener for compatible Japanese-pattern heavy vehicle applications. Its key identification dimensions are 81.5mm A, 30mm B and 21mm C, making orientation and dimensional comparison important before installation.

Features

• Right-hand orientation for the specified wheel-end application
• 81.5mm A dimension for primary length comparison
• 30mm B and 21mm C dimensions for matching the removed stud profile

Specifications and Materials

A dimension: 81.5mm. B dimension: 30mm. C dimension: 21mm. Thread direction: right hand.

Part number: AP6075.

Review the Alcoa wheel service and fitment guidance for wheel stud engagement and mounting checks

Compatibility and Fitment

Compare the three dimensions and thread direction with the removed stud before fitting. Confirm the actual thread pitch and mating nut as part of the wheel-end check rather than selecting from diameter or handedness alone.

Compliance and Safety

Inspect the stud threads, mating nut and wheel mounting surfaces for damage or corrosion before assembly. Replace damaged hardware and follow the vehicle or axle manufacturer’s tightening procedure for the complete wheel end.

Trailer Applications

This stud suits compatible Japanese-pattern heavy vehicle wheel ends requiring the right-hand 20mm stud configuration and matching dimensional profile.

Why Choose ICS Trailers

Handed wheel studs need the correct orientation as well as the correct physical profile. ICS Trailers can compare the removed stud, wheel-end arrangement and measurements when the old hardware is worn or difficult to identify.

• Check the 81.5mm A dimension and right-hand orientation before installation.
• Send photos and measurements if the mating hardware or stud profile is uncertain.
