Description

Overview

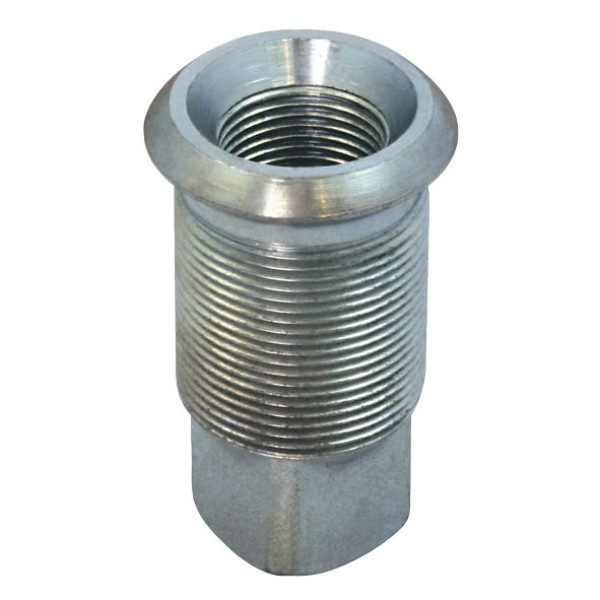

The 20mm Japanese sleeve wheel nut is a left-hand wheel-end fastener with a 28mm width and 62mm overall height. Its handed application and taller sleeve profile are the main checks when replacing worn or damaged wheel hardware.

Features

• Left-hand configuration for the specified Japanese-pattern wheel-end application
• 62mm height for matching the existing sleeve profile
• 28mm width for quick physical comparison during identification

Specifications and Materials

Thread size: 20mm. Width: 28mm. Height: 62mm. Application: left hand.

Part number: AP6076.

Review the Alcoa wheel service and fitment guide for wheel mounting and thread-engagement guidance

Compatibility and Fitment

Match the left-hand configuration, 20mm thread size, 28mm width and 62mm height with the nut being replaced. Also check the mating stud and wheel arrangement before installation, because sleeve length and thread direction are selection-critical.

Compliance and Safety

Inspect the wheel stud, nut threads and wheel mounting surfaces before assembly. Replace damaged or stripped hardware and tighten the wheel-end fasteners to the applicable vehicle or axle procedure.

Trailer Applications

This nut suits compatible Japanese-pattern heavy vehicle wheel ends requiring the specified left-hand 20mm sleeve configuration.

Why Choose ICS Trailers

Handed sleeve nuts need more than a diameter match. The thread direction, 62mm height and 28mm width should all agree with the removed hardware before fitting. ICS Trailers can help compare the old nut, stud and wheel-end arrangement when identification is difficult.

• Check handedness before pairing the nut with the existing stud.
• Send photos and measurements if markings are worn or unclear.
