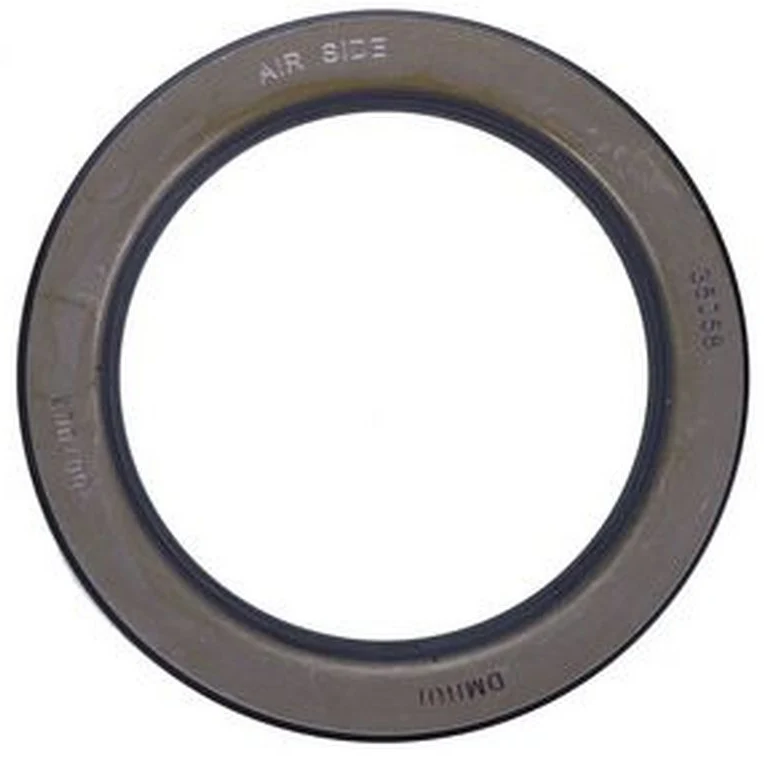

Scotseal Classic Steer Oil Seal 3.5in x 4.847in

Allan Davis on 11/08/2026

SKF Scotseal Classic steer axle oil seal

Scotseal Classic Steer Oil Seal 3.5in x 4.847in

$70.00

SKF Scotseal Classic steer axle oil seal with 3.5in inside diameter, 4.847in outside diameter and 0.904in width for matching heavy-duty front wheel ends; confirm the hub bore and bearing arrangement before fitting.

Part number 308-0836.

Quick Quote

SKU: 308-0836 Category: Tags: , , , , , , , , , , , , , , ,
This field is for validation purposes and should be left unchanged.

Description

Overview

The SKF steer axle oil seal suits heavy-duty front wheel ends using a 3.5in spindle diameter and approximately 4.847in hub bore. Its Scotseal Classic construction provides a unitised oil seal for common steer-axle hub arrangements where dimensions and bearing combination are the main selection checks.

Features

  • Scotseal Classic unitised wheel-end seal.
  • 3.5in inside diameter with 4.847in outside diameter.
  • 0.904in seal width for the matching front hub arrangement.
  • Tool-fit installation for steer axle servicing.

Specifications and Materials

Application: front steer axle. Inside diameter: 3.5in. Outside diameter: 4.847in. Width: 0.904in. Seal family: Scotseal Classic.

Part number: 308-0836.

See the official SKF Scotseal technical information

Compatibility and Fitment

Confirm the spindle diameter, hub bore and bearing arrangement before fitting. Common applications use HM212049/HM212011 inner bearings with 3782/3720 outer bearings, but other bearing combinations can use the same seal size.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35066, 35058, 370001A, 380001A, 382-8036, 3828036, 383-0136, 3830136, 10045885

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Common inner bearing set APBSET413TIM HM212049/HM212011 bearing set
Common outer bearing set APBSET406TIM 3782/3720 bearing set



Compliance and Safety

Clean the hub bore and spindle before installation, then fit the seal squarely with the correct tool and complete bearing adjustment to the axle service procedure.

Trailer Applications

The SKF steer axle oil seal suits matching heavy-duty steer wheel ends where the 3.5in spindle and 4.847in hub-bore dimensions are required.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

35066 35058 370001A
380001A 382-8036 3828036
383-0136 3830136 10045885



Why Choose ICS Trailers

Steer axle seals are best matched by dimensions and wheel-end arrangement rather than appearance alone. For this version, check the 3.5in spindle and 4.847in hub bore first, then confirm the bearing combination before assembly. If the old seal markings are unclear, send through the hub measurements and bearing numbers.

  • Matching bearing-set references can be checked during the same wheel-end service.
  • Multiple recognised interchange numbers help identify older or alternate seal markings.
