Description

Overview

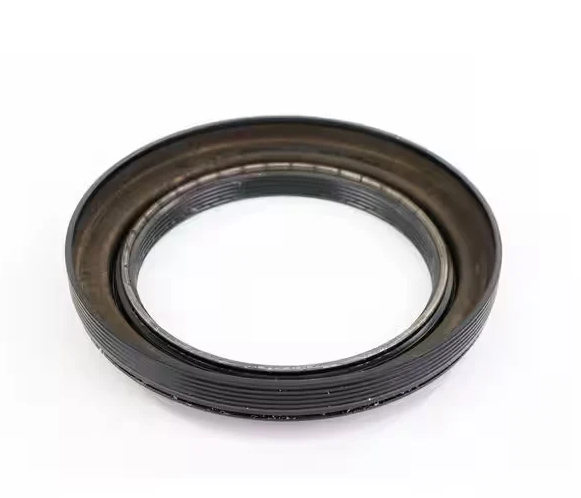

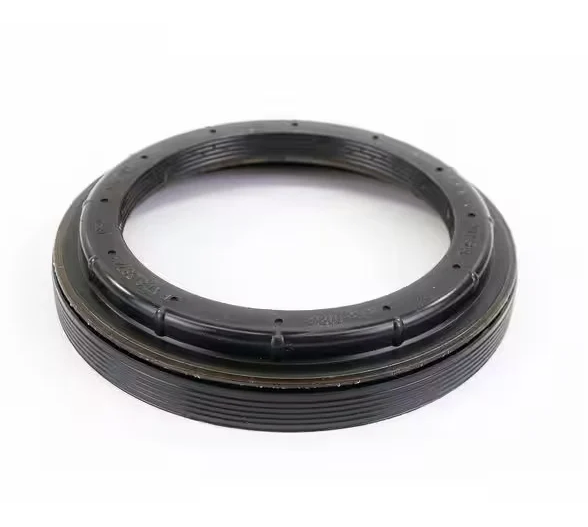

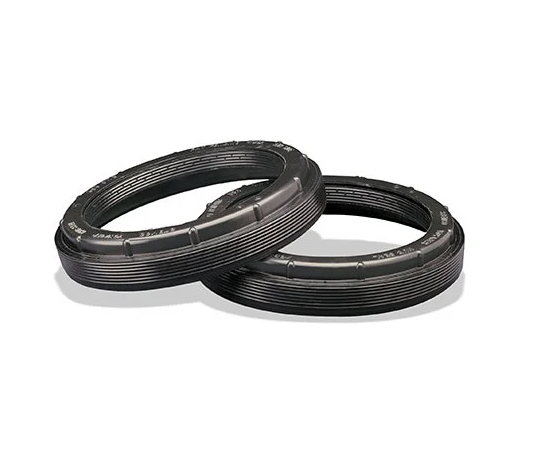

The standard steer axle hub seal suits FG941 steer axle applications using an ASET049-011 inner bearing. It supports 12,000lb steer wheel ends and uses a 123mm hub bore with an 89mm spindle shoulder, giving workshops several direct fitment checks before assembly.

Features

• Voyager wheel-end seal for standard steer axle applications.
• Matches FG941 setups using the ASET049-011 inner bearing.
• 123mm hub bore, 89mm spindle shoulder and approximately 24mm seal width.
• Bonded rubber sealing surfaces and piloted entry support square installation.

Specifications and Materials

Application: standard steer axle. Rated axle application: 12,000lb. Hub bore: approximately 123mm. Spindle shoulder OD: 88.9mm. Seal width: approximately 23.7mm. Series: Voyager.

Part number: 383-0136.

See the STEMCO Voyager wheel seal technical information

Compatibility and Fitment

Check the FG941 axle application and ASET049-011 inner bearing before installation. Also compare the hub bore and spindle shoulder because similar steer seals can differ in size or bearing combination.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35066, 35058, 35059, 35103, 370001A, 380001A

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Clean the hub bore and spindle before fitting, then inspect the sealing surfaces for burrs, corrosion or damage. Use the correct installation tool so the seal enters squarely, then complete bearing adjustment to the axle service procedure.

Trailer Applications

The standard steer axle hub seal suits FG941 wheel ends using the matching bearing arrangement. It services standard steer axle configurations rather than the larger heavy-duty steer seal family.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

This seal is easiest to identify by combining the FG941 axle reference with the ASET049-011 inner bearing and 89mm spindle shoulder. If the old seal number is unreadable, send through the bearing numbers, axle details and seal measurements before ordering.

• The matching inner and outer bearing references can be checked during the same hub service.
• KIT-102STM provides a bearing-and-seal service option for the supported steer axle arrangement.
