Description

Overview

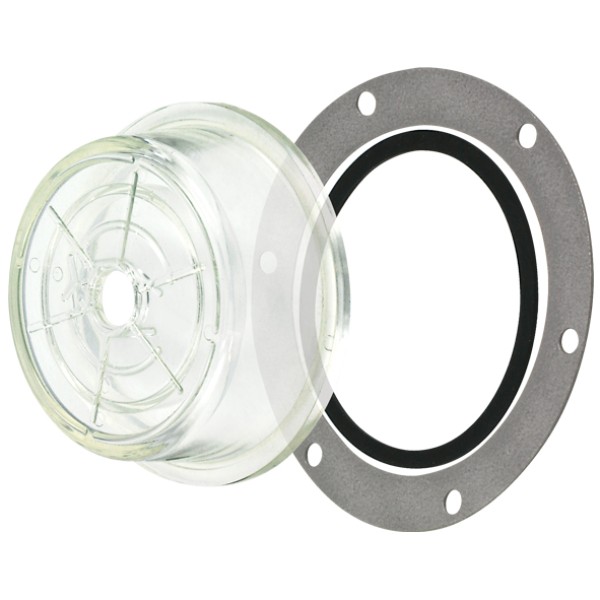

The hubodometer window kit replaces the 3.5in hub cap window where a mechanical Hubodometer mounts through the centre. Its 13.5mm mounting hole separates this version from a standard solid 3.5in window, making the window type and centre-hole size the main checks before ordering.

Features

• 3.5in (89mm) hub cap window for Hubodometer mounting.
• 17/32in (13.5mm) centre mounting hole.
• Includes window, gasket and O-ring.
• Suits compatible Argo, STEMCO and Veeder-Root Hubodometer arrangements.

Specifications and Materials

Window diameter: 3.5in (89mm). Centre hole: 17/32in (13.5mm). Supplied components: window, gasket and O-ring.

Part number: 359-6117.

See the official STEMCO Hubodometer installation instructions

Compatibility and Fitment

Check that the existing hub cap accepts a 3.5in window and requires the centre-mounted Hubodometer arrangement. The centre hole allows the meter to mount through the hub cap face rather than using a solid inspection window.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. AP4039

Compliance and Safety

Fit the sealing components onto clean surfaces and mount the Hubodometer without using an impact wrench. Tighten the Hubodometer locknut to a maximum of 15 ft-lb, and avoid paints, solvents or thinners on the meter face or hub cap window.

Trailer Applications

This kit suits compatible trailer and non-driven wheel ends where a Hubodometer mounts through a 3.5in hub cap window with a 13.5mm centre hole.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The important distinction with this window is the Hubodometer mounting hole. A standard 3.5in hub cap window can look similar but will not provide the same centre mounting point. Check the window diameter and 13.5mm hole before fitting, especially when the original window has been removed or damaged.

• The supplied gasket and O-ring cover the sealing components needed with the replacement window.
• Hubodometer fitment provides a stronger identification check than window diameter alone.
