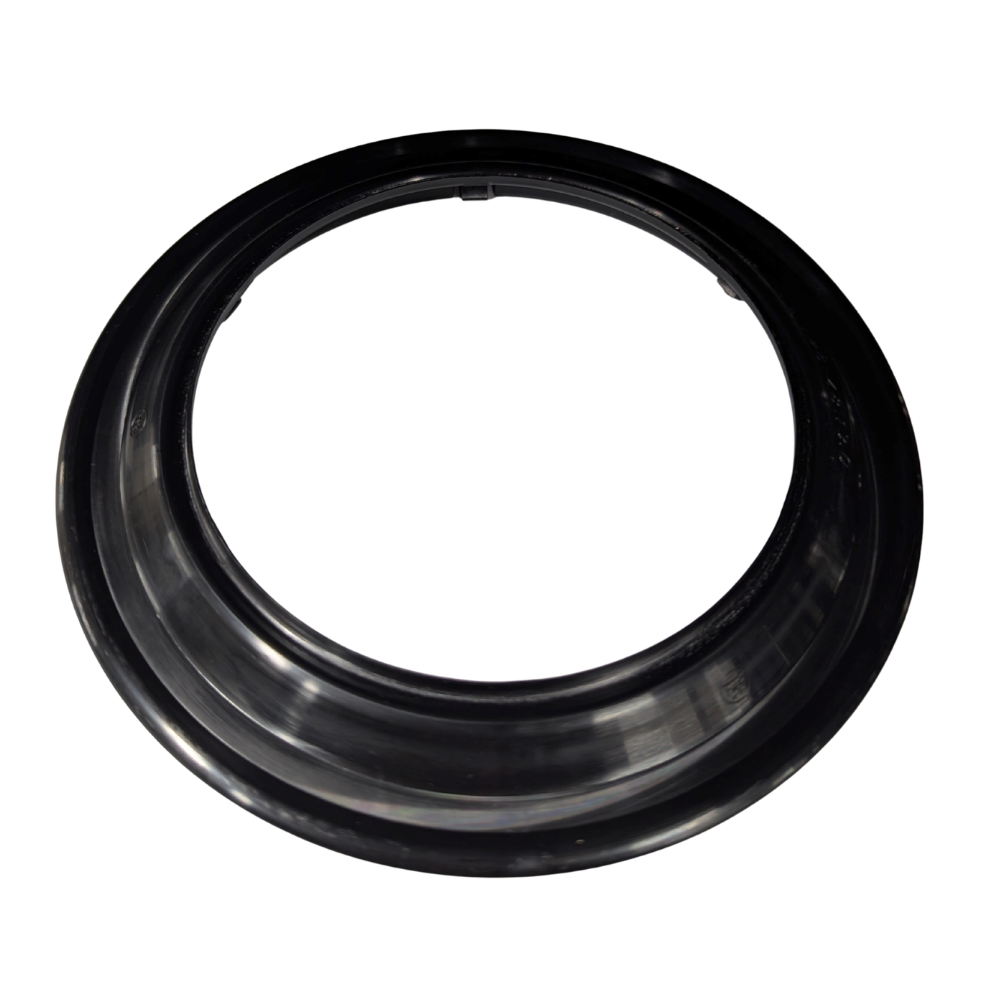

BPW ECO 10T hub dust seal protects the wheel-end sealing area on 9100 ECO hub assemblies. This nylon ring sits in the 10 tonne ECO hub arrangement and helps shield the hub and bearing area from coarse dirt during service.

Features

• Nylon dust seal for the BPW 9100 ECO hub family.
• 168mm outside diameter and 15mm overall height.
• Dedicated 10 tonne ECO hub position, separate from the 9000 ECO dust seal.

Specifications and Materials

Product type: nylon wheel-end dust seal. Outside diameter: 168mm. Height: 15mm.

Part number: AP4185G.

See BPW original spare parts information

Compatibility and Fitment

Match the axle as a 9100 ECO 10 tonne hub and compare the old seal profile before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 03.120.48.13.0, 0312048130, 57021, 10.10492, 1010492, 070.239, 070239, 89-01046-SX, 8901046SX, 406.251-00A, 40625100A

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the seal seating area for wear, contamination or damage, then fit the ring squarely so it is not distorted during hub assembly.

Trailer Applications

Workshops replace the BPW ECO 10T hub dust seal during hub, bearing and wheel-end repairs on compatible 9100 ECO trailer axles.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The main ordering risk is confusing the 9100 ECO dust seal with the smaller 9000 ECO version. If the old ring is available, send its measurements, markings or a clear hub photo so ICS Trailers can help narrow down the correct wheel-end setup.

• Compare the seal carrier and hub seal while the assembly is apart.
• Use the axle generation and old seal profile to separate close-fit ECO hub variants.
