Description

Overview

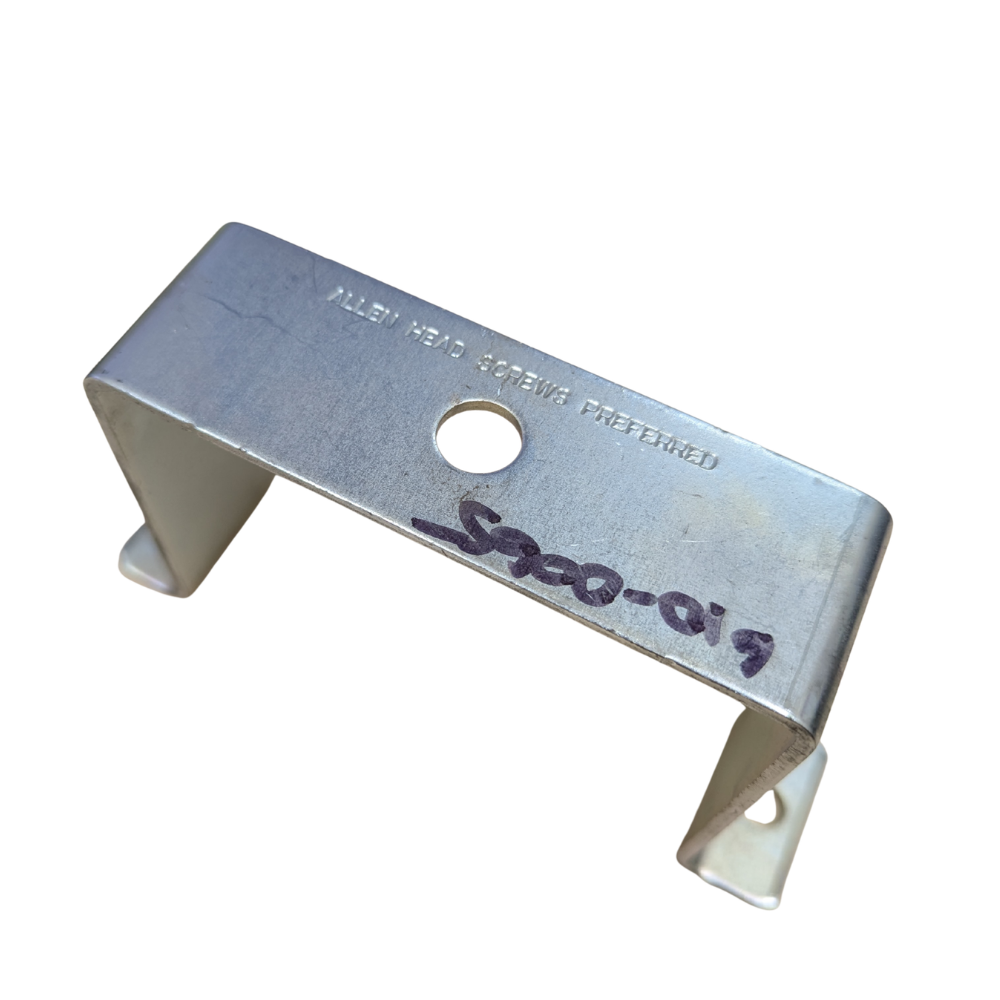

Stemco hubodometer bracket mounts a wheel-end hubodometer to a compatible bolt-on hub cap. The two-leg A-style form suits even-stud axle hub-cap layouts.

Features

• 5-1/2″ bolt circle with two mounting holes.
• 5/16″-18 hubodometer mounting stud.
• Fits over compatible hub caps ending in 4009.

Specifications and Materials

The bracket measures about 6.5″ long, 1.5″ wide and 3.5″ high, with a weight of about 0.6 lb.

Part number: 610-0065.

Follow the official STEMCO hubodometer and bracket installation instructions

Compatibility and Fitment

Confirm the hub-cap style, 5-1/2″ bolt circle, mounting-hole position and 5/16″-18 stud before ordering. The main mismatch risk is a different hub-cap bolt pattern or wheel-end mounting arrangement.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 180.20065, 18020065, GT-4065, GT4065.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Use proper-length Grade 5 or higher bolts, follow the hub-cap torque specification and tighten the hubodometer locknut to 15 ft-lb without an air impact wrench.

Trailer Applications

Trailer workshops fit this bracket at the wheel end when a hubodometer needs a separate mount over a compatible bolt-on hub cap.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Hubodometer brackets can look similar while using different bolt circles, hole positions and stud sizes. ICS Trailers can help compare the old bracket, hub-cap details, photos and measurements before you order, especially when the wheel-end layout is unclear.

• Match the bracket together with the hubodometer and surrounding hub-cap hardware.
• Use bolt-circle and stud measurements to narrow down close-looking bracket options.
