Description

Overview

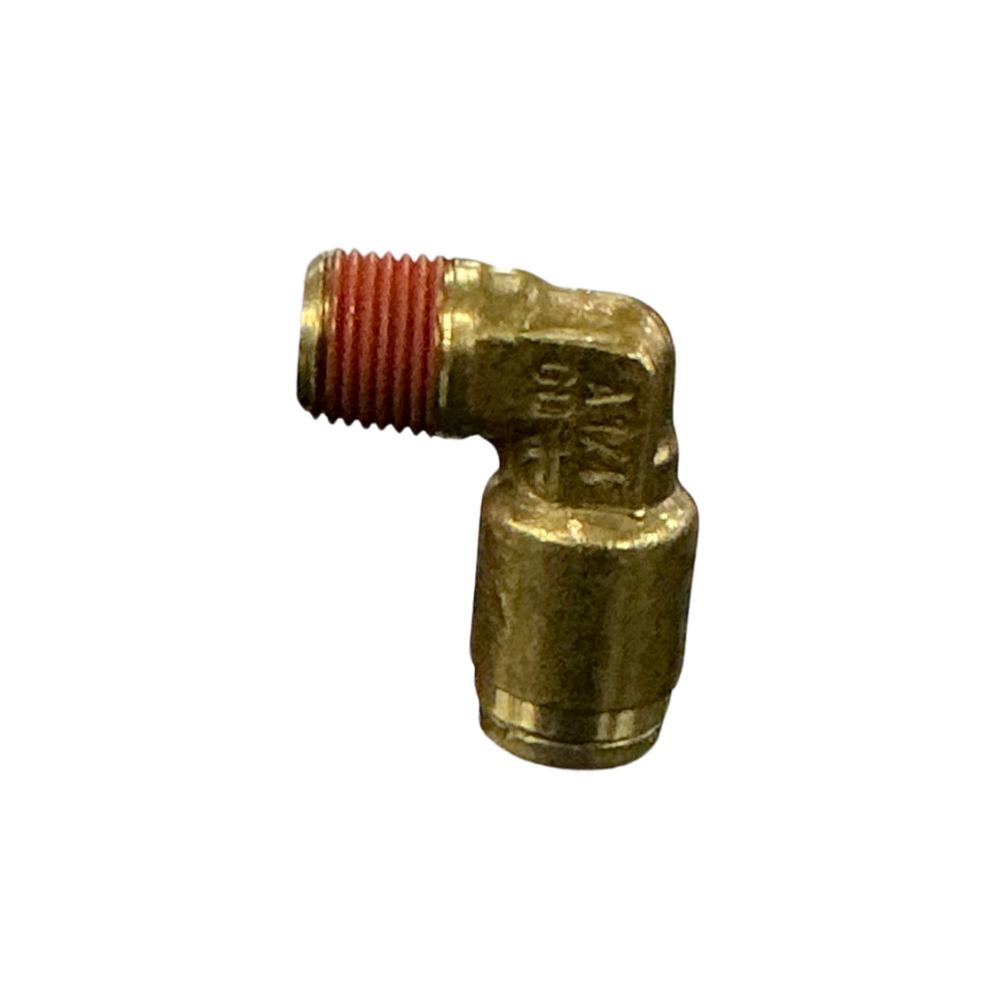

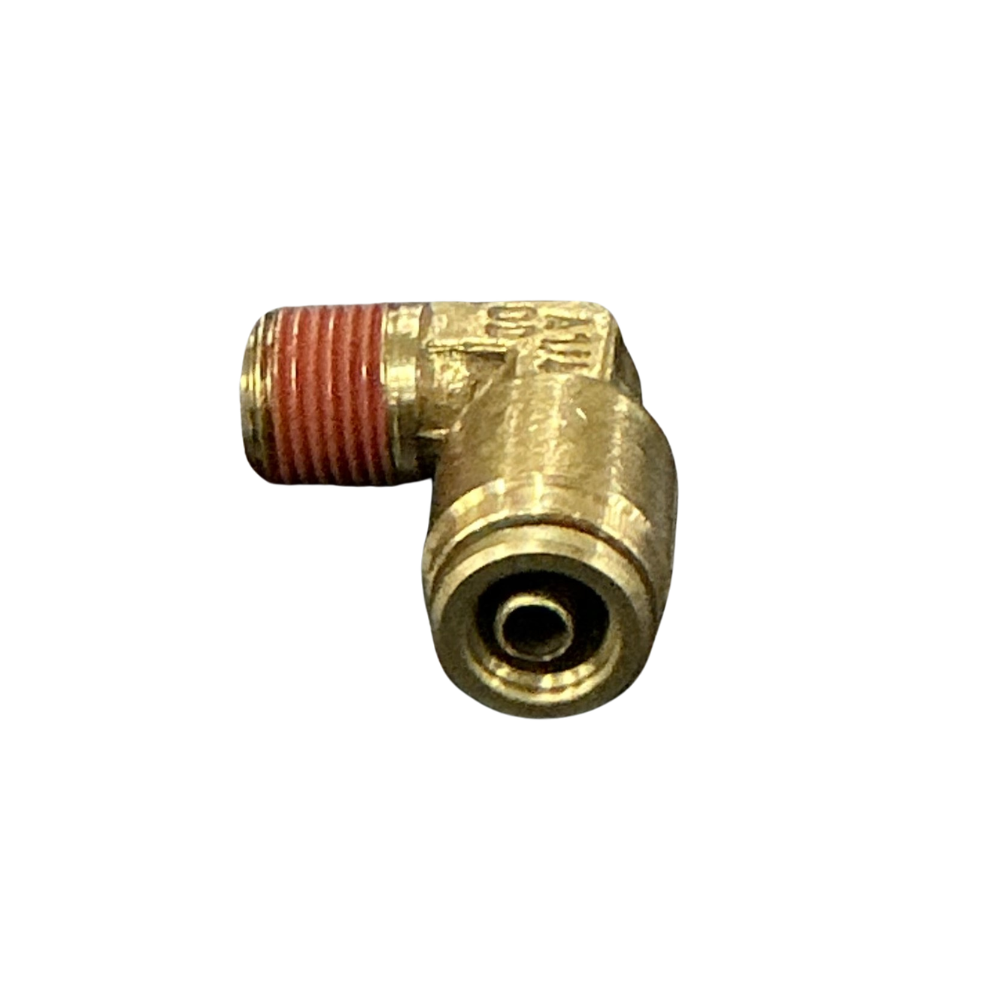

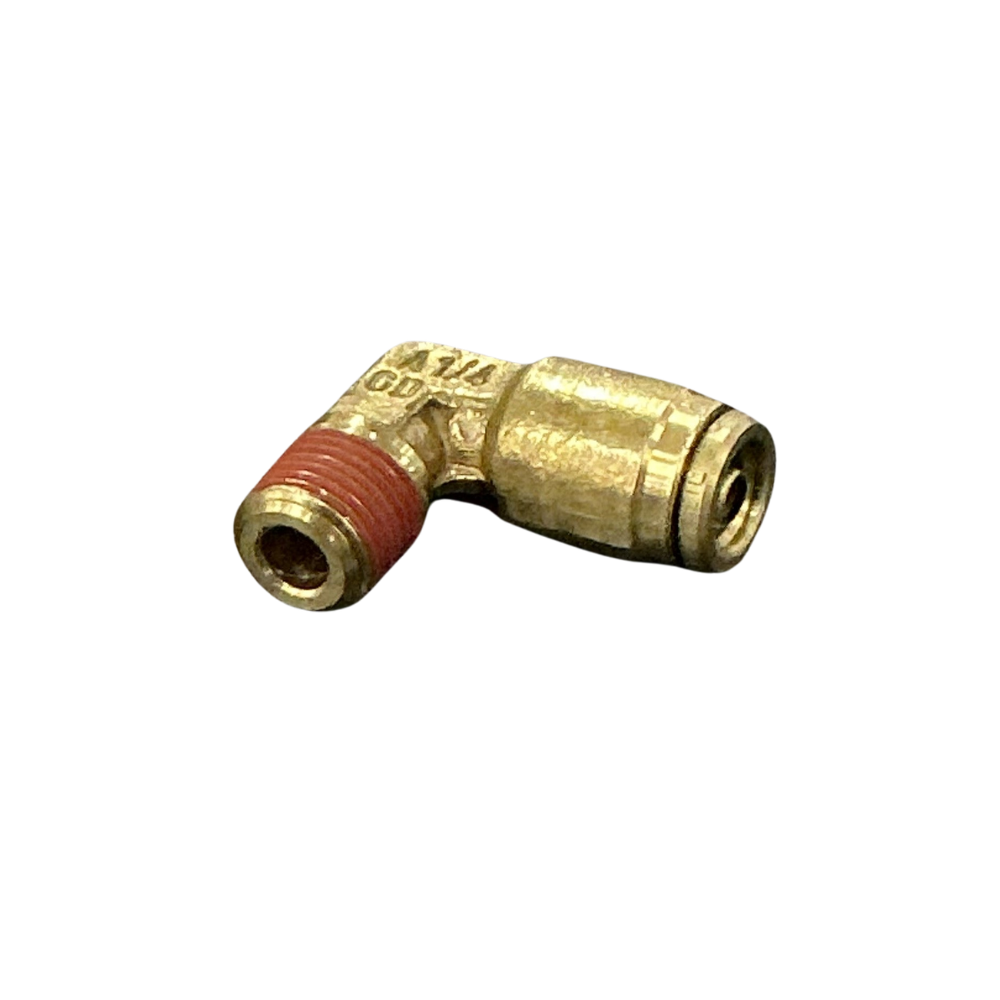

The 1/4 tube x 1/8 NPT push-in swivel male elbow connects imperial nylon air-brake tube to a female threaded port while redirecting the line through 90 degrees. Its swivel base allows the push-in outlet to be aimed after the threaded section has been tightened, making it better suited to restricted installations than a fixed elbow.

Features

• Push-in connection accepts 1/4″ outside-diameter imperial nylon tube
• 1/8 NPT male thread connects to a compatible female port
• Swivel elbow allows the tube outlet to be positioned after installation
• Brass body includes an integrated release collet, internal seal and pre-applied thread sealant

Specifications and Materials

This 90-degree male elbow combines a 1/4″ push-in tube port with a 1/8 NPT male pipe thread. The swivel joint separates final tube direction from thread-tightening position, while the push-in end grips and seals the tube without a separate compression nut, olive or insert. Part number: 88-005S-0402.

Review the official D.O.T. push-in fittings guide

Compatibility and Fitment

Confirm the tube measures 1/4″ across its outside diameter and the receiving component has a 1/8 NPT female port. Do not substitute 6mm metric tube or a similarly sized BSP thread. Also confirm that a swivel elbow is required rather than the fixed version, as the two fittings handle final outlet positioning differently.

Cut the tube square, remove burrs and push it completely through the collet until it reaches the internal stop. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ69DOTS0402, 35-S690402, 35S690402, AQ69-DOTS-4X2, AQ69DOTS4X2, 1869X4S, 3109 56 11DOT, 31095611DOT

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the complete pneumatic circuit before fitting the elbow or releasing the tube. Inspect the tube sealing area for scoring, flattening, contamination or heat damage, and replace damaged tube rather than relying on the collet to seal a worn surface.

Tighten the male thread through the appropriate body section without forcing the swivel joint. Position the outlet so the connected tube remains free from tension, then restore pressure gradually and leak-test the threaded port, swivel joint and push-in connection.

Trailer Applications

Workshops fit this elbow where a 1/4″ nylon line must enter a valve, manifold, reservoir accessory, suspension control or other pneumatic component through a 1/8 NPT port. The swivel design is particularly useful where surrounding brackets or components prevent a fixed elbow from finishing in the required direction.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Swivel and fixed elbows can look nearly identical once removed from an air system. Send a clear photo and confirm the tube outside diameter, thread type and required outlet direction if the existing fitting markings are difficult to read.
