Description

Overview

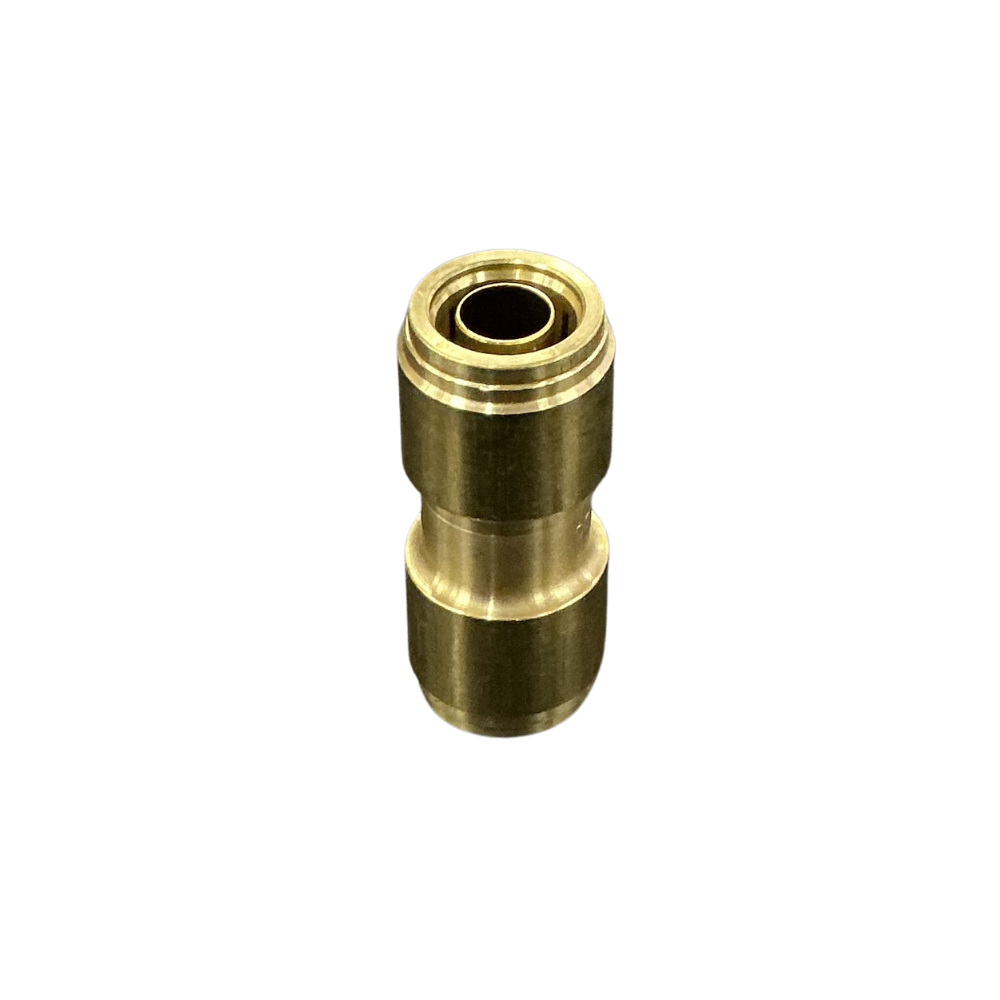

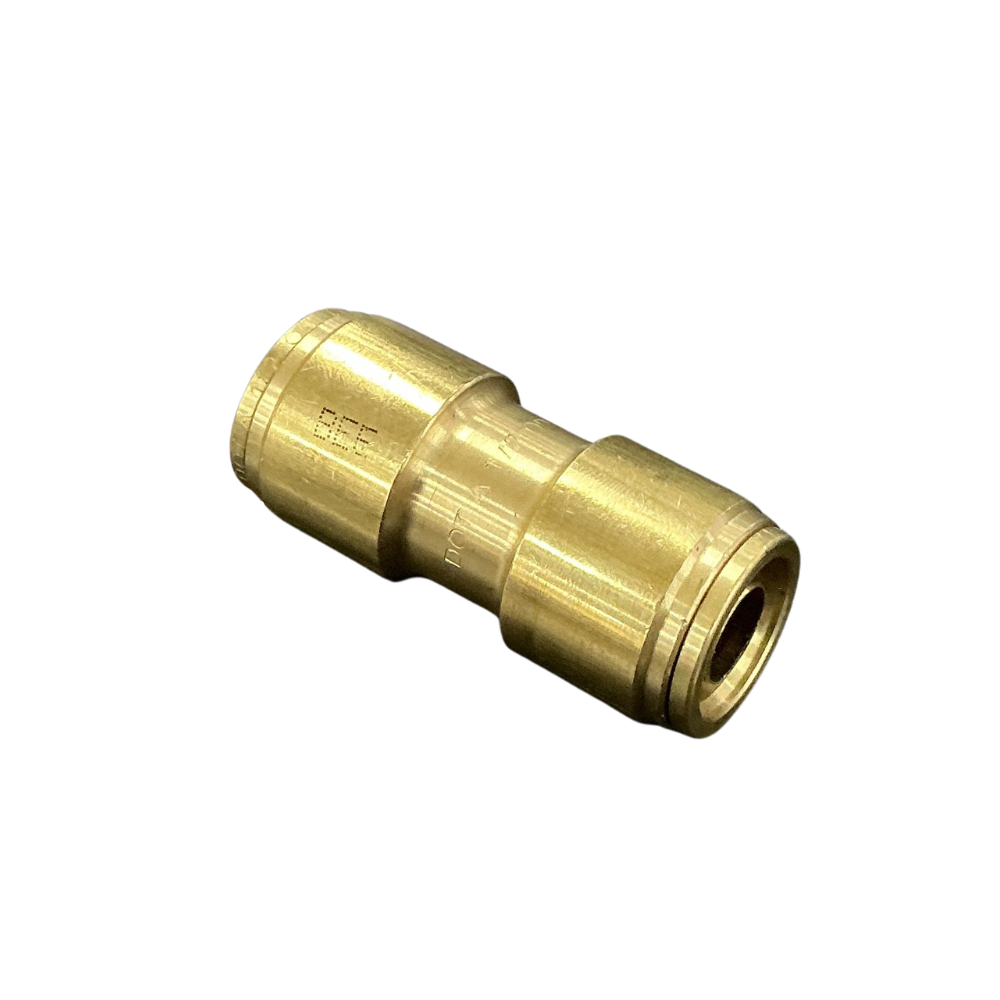

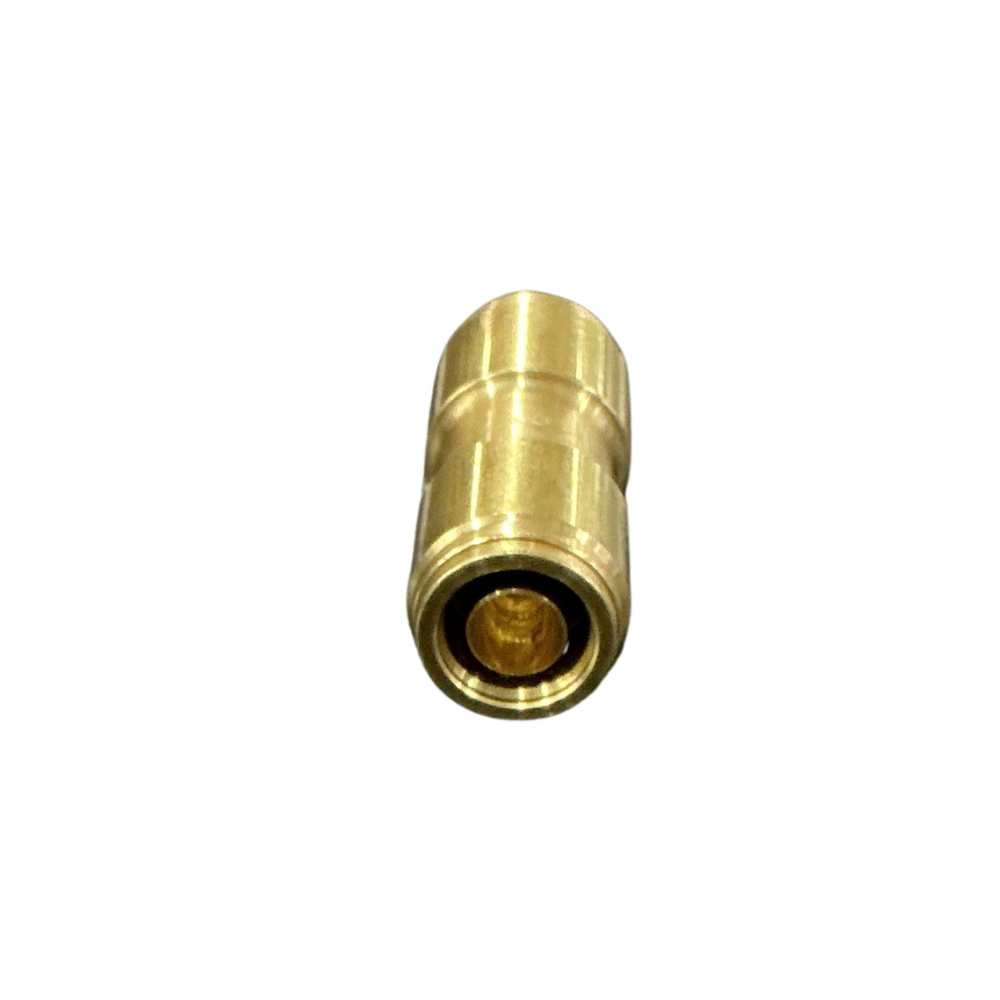

The 1/2 air brake push-in double union connects two matching sections of 1/2″ nylon tube in a straight line. It suits repairs and extensions where the air line must continue without a threaded port, change in tube size or directional bend.

Features

• Equal push-in connections for 1/2″ outside-diameter imperial tube
• Straight tube-to-tube configuration maintains the existing line direction
• Brass body with an integrated release collet and seal at each end
• No separate compression nuts, olives or tube inserts required

Specifications and Materials

This D.O.T. double union carries two equal 1/2″ push-in ports through a compact brass body. Each port grips and seals compatible nylon air-brake tube after the tube reaches the internal stop. The collets allow the fitting to be disconnected and reused after the pneumatic system has been fully depressurised. Part number: 88-004-08.

See the official D.O.T. push-in fittings guide

Compatibility and Fitment

Measure both tube sections across the outside diameter before ordering. Each connection requires 1/2″ imperial tube. Do not substitute 12mm metric tube, a reducing union, a bulkhead union or a threaded socket, as these use different dimensions or connection methods.

Cut each tube end square, remove burrs and push the tube fully into the internal stop. Pull back lightly to confirm both collets have engaged. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ62DOT08, 35-6208, 356208, AQ62-DOT-8, AQ62DOT8, 1862X8, 3106 62 00DOT, 31066200DOT

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the complete pneumatic circuit before cutting the tube or releasing either collet. Inspect the sealing areas for scoring, flattening, contamination and heat damage. Trim back or replace damaged tube rather than attempting to seal a worn surface.

Support the repaired line so it does not pull sideways through the union. Keep the tube clear of sharp edges, moving components and heat sources, then restore pressure gradually and leak-test both connections.

Trailer Applications

Workshops fit this 1/2″ straight union when repairing or extending larger air-brake supply lines, air-suspension plumbing and auxiliary pneumatic circuits on trucks and trailers. The equal connections suit an existing straight run where no branch or threaded adaptor is required.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

A 1/2″ imperial union can be confused with a 12mm fitting when measured quickly. Send clear photos of the old fitting and confirm the tube outside diameter if the connection size is uncertain.
