Bartlett BK16 32T Truck Safety Chain Kit

Bartlett BK16 32T Truck Safety Chain Kit

$440.00

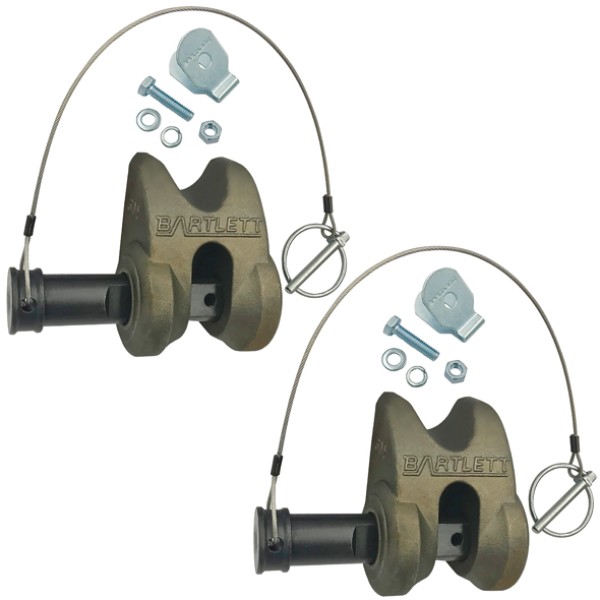

Bartlett BK16-32T Bare Knuckle truck-side safety chain attachment kit, rated to 32,000kg ATM and designed for compatible 16mm G80 safety chain. The 16mm measurement refers to the steel thickness of each chain link, not the retaining pin dimensions.

Part number TC0532.

Quick Quote

SKU: TC0532 Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

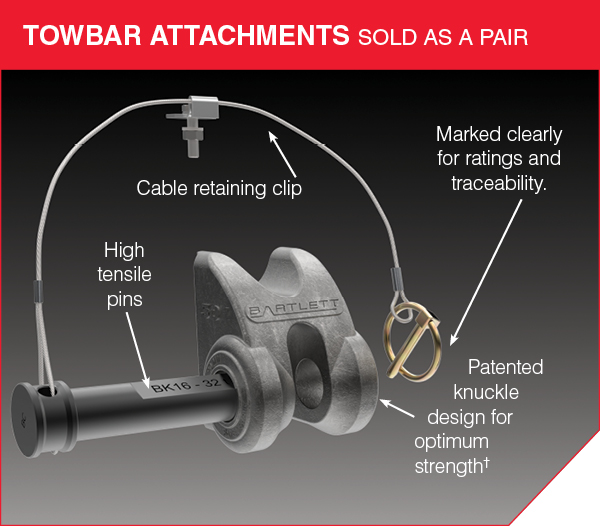

The Bartlett BK16 truck safety chain kit provides a rated truck-side towbar attachment for the Bare Knuckle 16mm safety chain system. The BK16-32T assembly uses releasable retaining pins to connect compatible chain end links directly to the towbar attachment without additional connecting links.

Designed for compatible 16mm G80 safety chain, the kit is rated for heavy vehicle towing applications up to 32,000kg ATM when correctly installed.

Features

  • Truck-side towbar attachment for the Bartlett BK16 system.
  • Maximum system rating of 32,000kg ATM.
  • Releasable retaining pins allow direct chain engagement.
  • High-grade weldable steel alloy attachments.
  • Compatible safety chain purchased separately.

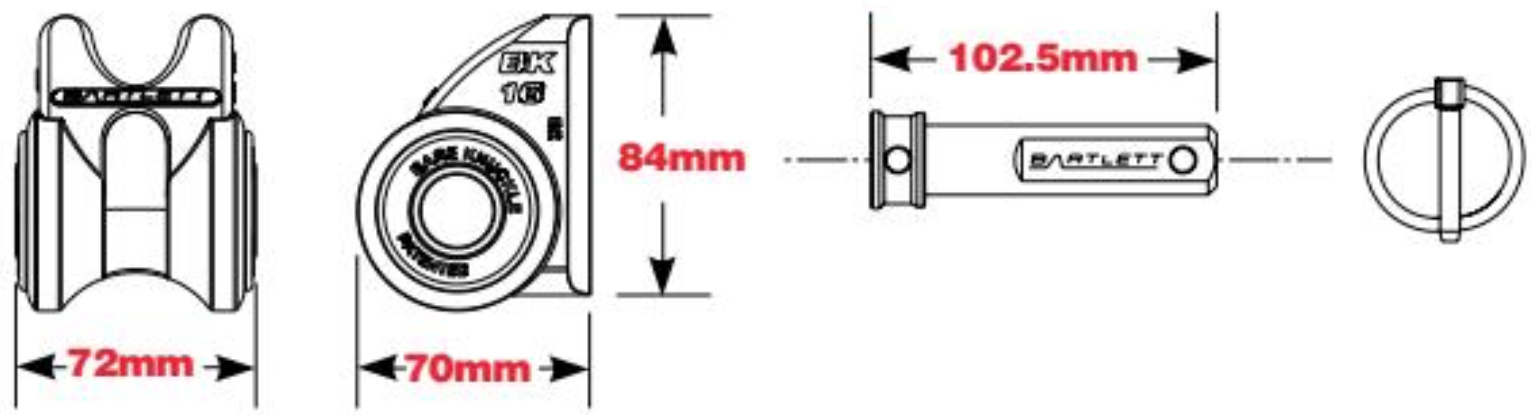

Specifications and Materials

  • Manufacturer: Bartlett
  • Model: BK16-32T
  • Compatible chain thickness: 16mm
  • Chain grade: G80
  • Maximum ATM: 32,000kg
  • Mounting position: Truck side (towbar)
  • Component Registration Number: 49481

Part number: TC0532.

Refer to the National Heavy Vehicle Inspection Manual for heavy vehicle safety chain and coupling inspection guidance

Compatibility and Fitment

Important: The 16mm chain size refers to the diameter of the steel forming each individual chain link. It does not refer to the length or diameter of the retaining pin, the overall dimensions of the chain link, or the opening inside the link.

Confirm the chain grade, towbar structure, mounting orientation and vehicle combination rating before installation. The retaining pins must correctly accommodate the chain end links.

Related Parts

Relationship Part Number Description
Chain to suit TC9500 16mm G80 towing safety chain pair
Matching trailer-side kit TC0533 Bartlett BK16-32D attachment kit

Compliance and Safety

Installation and welding must follow Bartlett’s requirements and the applicable heavy vehicle standards. Inspect the towbar attachment, retaining pins and chain connection for damage, wear and secure engagement before use.

Trailer Applications

Used on truck towbars in heavy rigid drawbar towing combinations requiring a Bartlett BK16 safety chain attachment system. Suitable for new installations and compatible retrofit work.

Why Choose ICS Trailers

ICS Trailers can assist with matching Bartlett BK16 truck-side attachments to compatible trailer-side hardware and safety chains. Confirm the existing attachment model and chain link thickness before ordering.
