Description

Overview

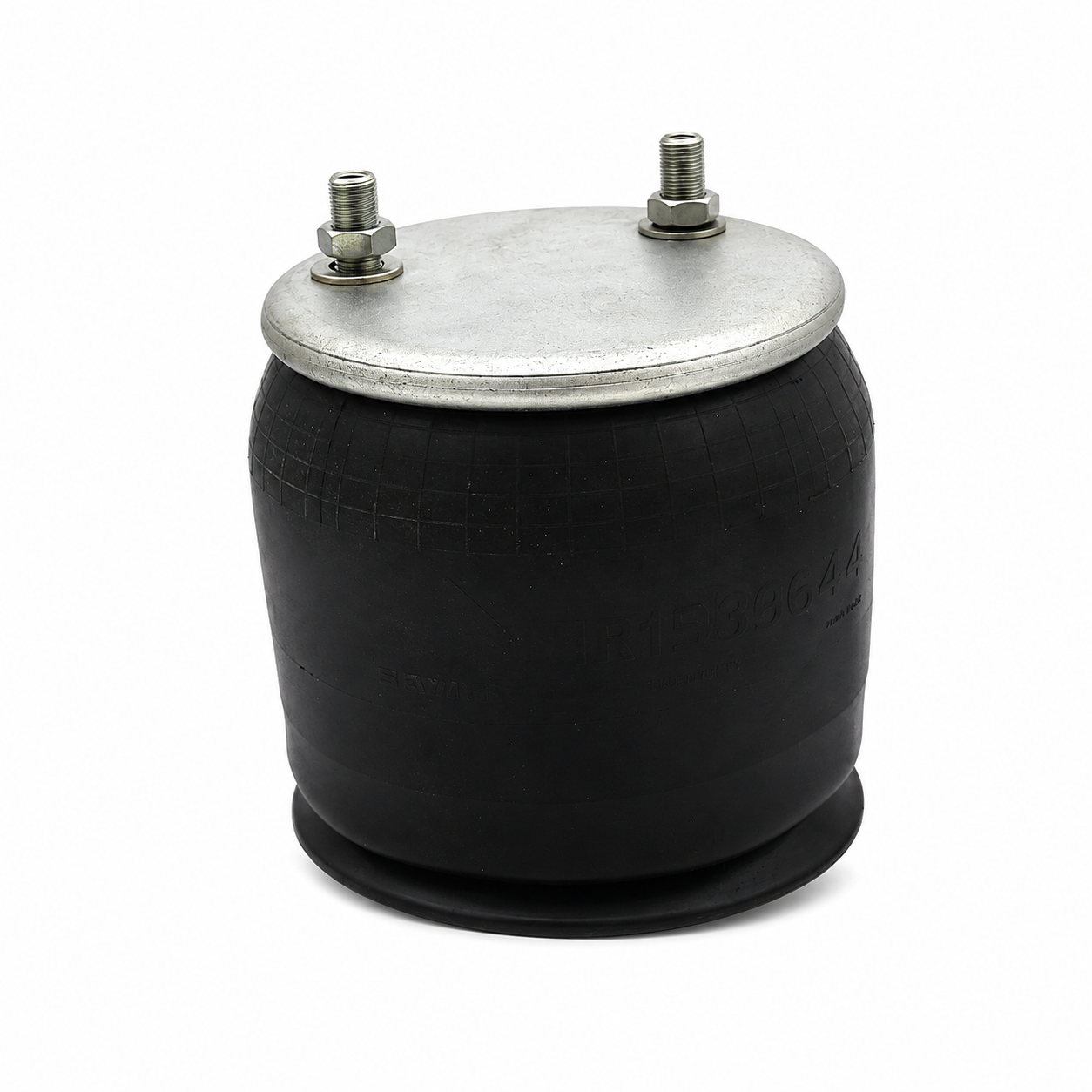

Sampa Hendrickson INTRAAX air spring supports trailer suspension ride height and axle load control on compatible Hendrickson INTRAAX air suspension setups. This complete air spring uses a plastic piston and suits listed Hendrickson trailer applications where the 9644 air spring family matches the existing bag.

Features

• Complete air spring with plastic piston for Hendrickson trailer suspension service.
• Suits listed INTRAAX AAL, AANL, AANLS, AAEDL and AA230L-300L applications.
• One air spring per box for straightforward parts handling.
• Cross-references major 9644 air spring replacement numbers.

Specifications and Materials

This Sampa Hendrickson INTRAAX air spring replaces compatible 9644 air spring applications on listed Hendrickson trailer suspensions. Check the existing air spring number, piston type, mounting layout and suspension model before fitting.

Part number: SP559644-KP.

Use the Sampa SP 559644-KP product page for manufacturer reference data

Compatibility and Fitment

Match the existing air spring number and suspension model before ordering. This air spring suits Hendrickson All Models, INTRAAX AAL23K-25K-30K, AANL23K, AANLS20K, AAEDL30K Lowride and AA230L-250L-300L trailer applications.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. AB1DK23J9644, 566CT64693, 1DK23J9644, 566ER9644, 910BP16P569, 64693, 4529644L, 4529644, 3529644, 9644, W013589644, W01-358-9644, W01-3589644, S23721, S-23721, s23721, C23721, C-23721, c23721, 1T15MBTW6, SP0065M, SP0066A, 8569

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the air spring, shock absorber, ride height setting and surrounding suspension hardware before returning the trailer to service. Replace damaged or leaking air springs promptly because suspension air loss can affect ride height, tyre wear and axle load control.

Trailer Applications

Trailer workshops fit this air spring during Hendrickson INTRAAX suspension repairs, air leak diagnosis and scheduled suspension overhaul work. It suits heavy trailer applications where the air spring must match the existing 9644 replacement family and plastic piston configuration.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Choose this Sampa Hendrickson INTRAAX air spring when the service job needs a 9644 family replacement bag for listed Hendrickson trailer suspension applications. Browse the ICS Trailers Suspension Parts category for more trailer air suspension parts
