Description

Overview

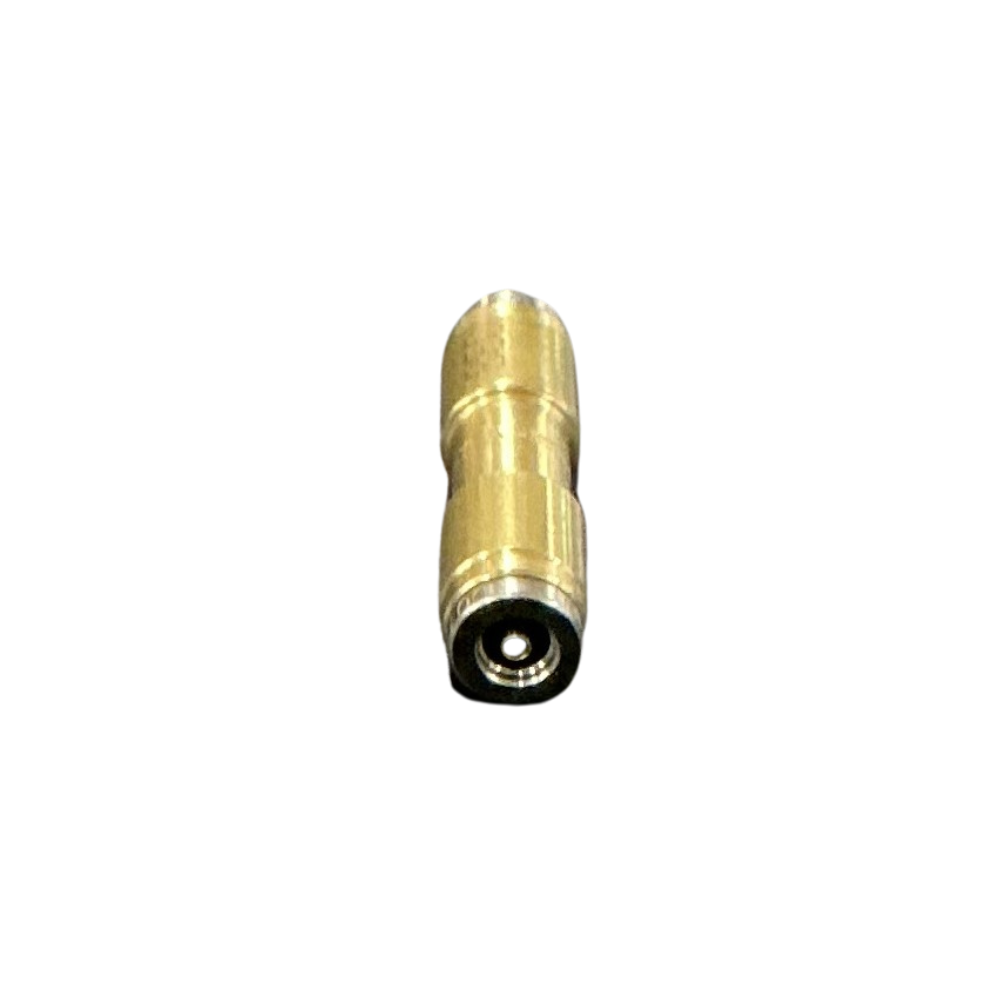

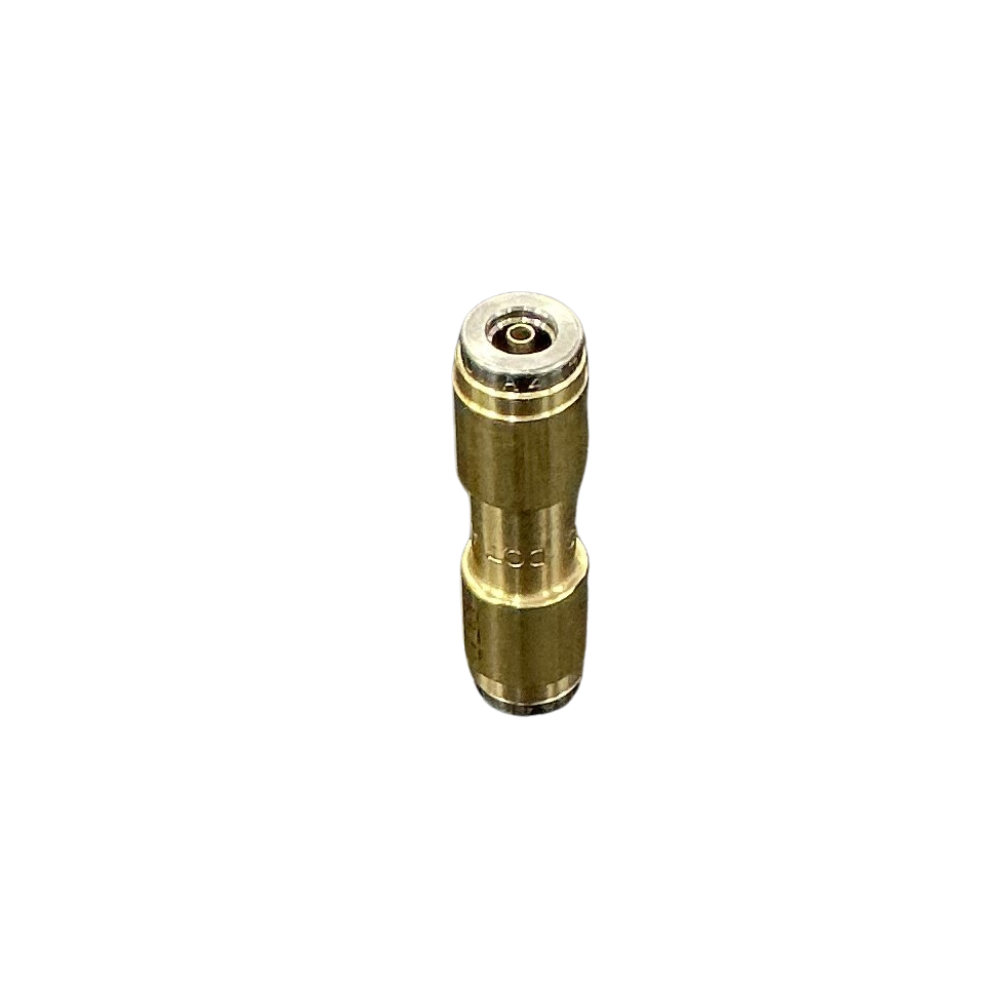

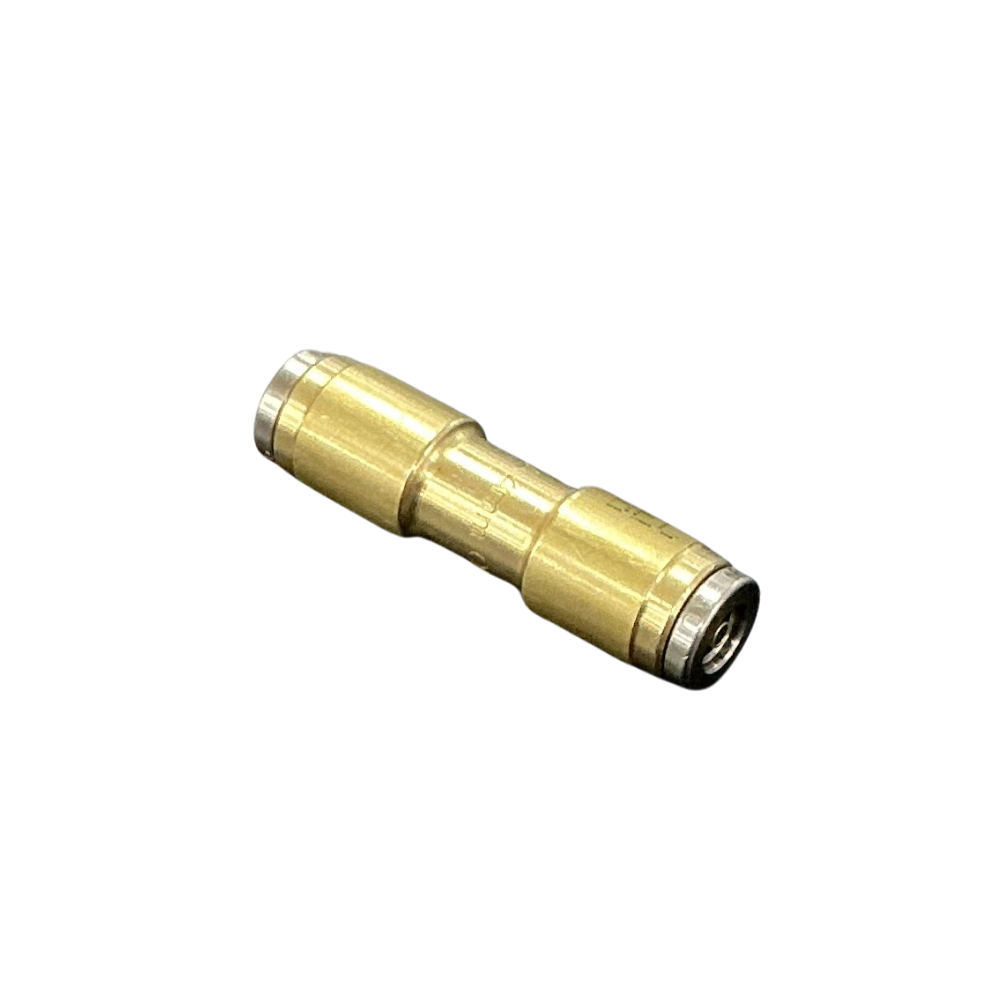

The 5/32 air brake push-in double union reconnects two sections of small-bore 5/32″ nylon tube without changing the tube size or air-line direction. Its compact straight body suits local repairs where a damaged tube section must be cut back and rejoined without adding threaded adaptors.

Features

• Equal push-in connections for 5/32″ outside-diameter imperial tube
• Straight tube-to-tube layout without a threaded connection
• Brass body with an integrated release collet and seal at each end
• Connects without separate compression nuts, olives or tube inserts

Specifications and Materials

This QAF4 double union carries two matching 5/32″ push-in ports through a straight brass body. Each end grips and seals compatible nylon air-brake tube after the tube reaches the internal stop. Part number: 88-004-025.

See the official D.O.T. push-in fittings guide

Compatibility and Fitment

Confirm that both tube sections measure 5/32″ across the outside diameter. This imperial size is very close to 4mm, but 4mm metric tube must not be substituted because the sealing and gripping fit may differ.

Cut both tube ends square, remove burrs and push each line fully into the internal stop. Pull back lightly to confirm that both collets have engaged. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ62DOT5-32, DQ62DOT532, DQ62DOT5/32, 35-62532, 3562532, AQ62-DOT-5/32, AQ62DOT532, 1862X2.5, 1862X25, 3106 04 00DOT, 31060400DOT

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the complete pneumatic circuit before cutting the tube or releasing either collet. Inspect the sealing area for scoring, flattening, contamination and heat damage. Trim back or replace damaged tube rather than attempting to seal over a worn surface.

Support the repaired line so it remains straight through the union without side load. Restore pressure gradually, then leak-test both push-in connections before returning the vehicle or trailer to service.

Trailer Applications

Workshops fit this small-bore joiner when repairing or extending 5/32″ air-brake control, signal and auxiliary pneumatic lines. The straight connection suits confined tube runs where no branch, bend, thread or change in tube diameter is required.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Small imperial air-line sizes can be difficult to distinguish from nearby metric tube. Send a clear photo and the measured tube outside diameter if the original joiner or tube markings are unclear.
