Description

Overview

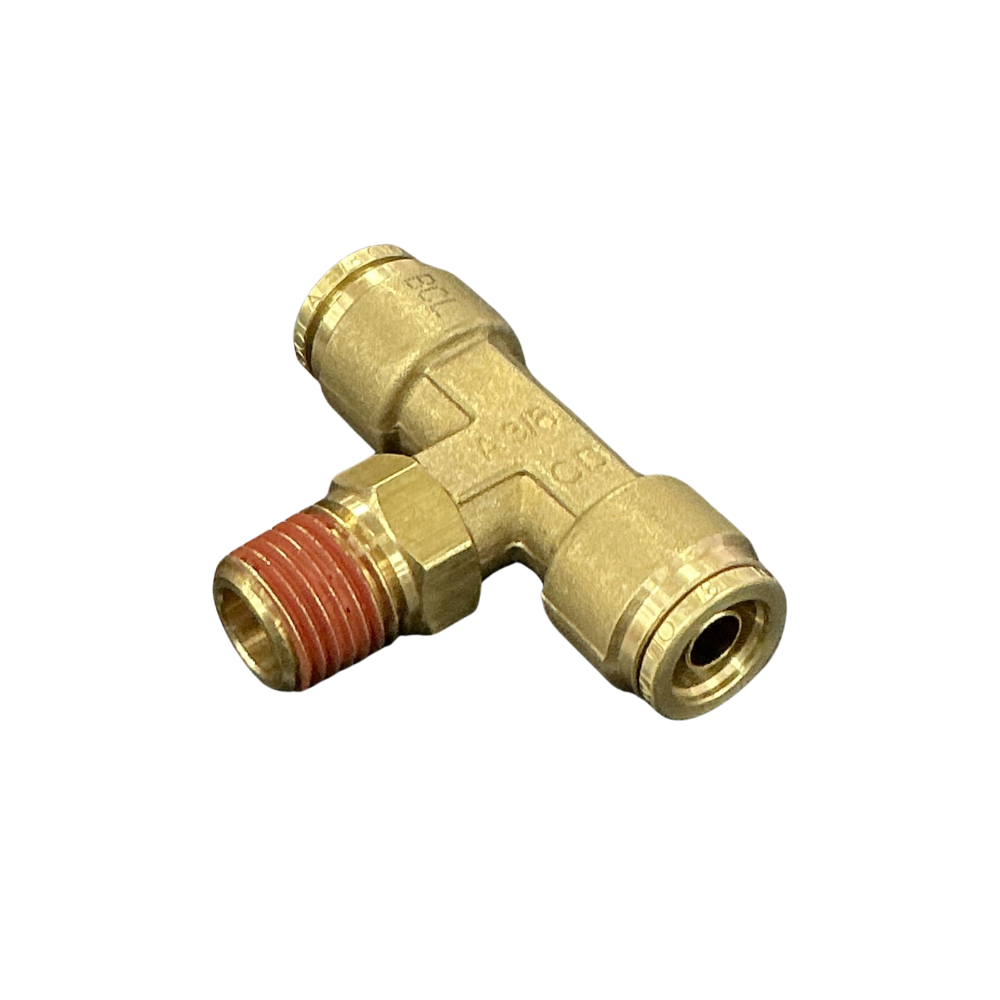

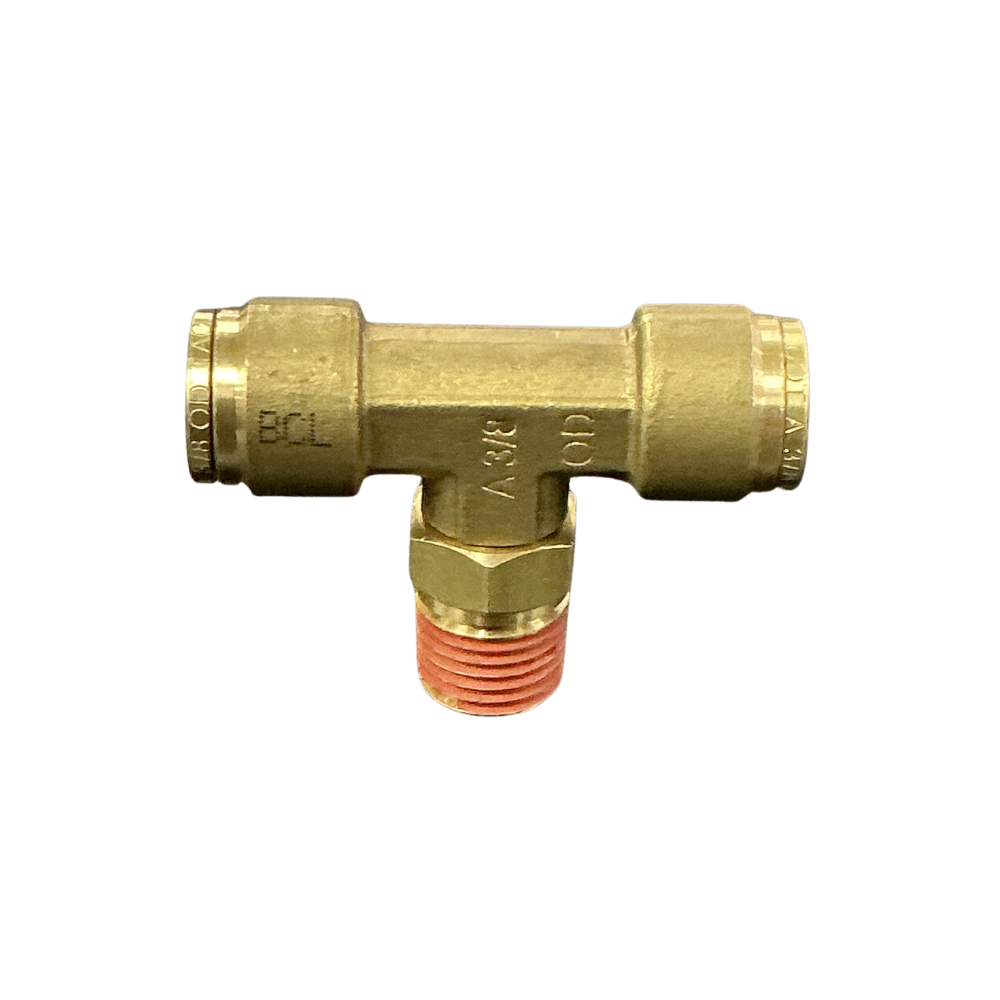

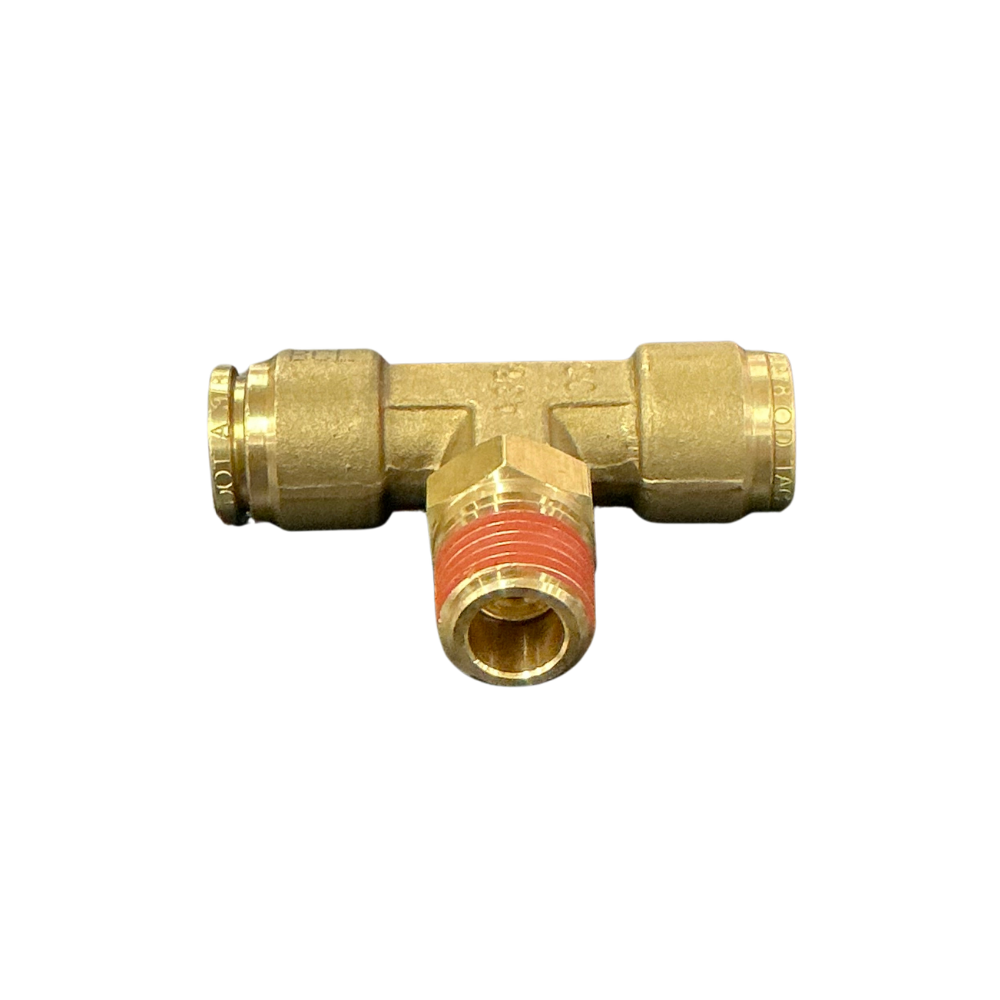

This swivel male branch tee connects two 3/8in SAE J844 tube runs to a perpendicular 1/4in NPTF port. Push-in collets retain both lines, while the swivel base sets branch direction.

Features

• Two reusable 3/8in OD push-in ends.
• 1/4in NPTF male thread with pre-applied sealant.
• CA360/CA377 brass body and NBR O-ring.
• 150 psi maximum; -40°C to 104°C.

Specifications and Materials

A 9/16in thread hex aids installation; floating supports permit tighter bends. It also meets SAE J2494-3 and FMVSS 49 CFR 571.106 requirements. Part number: 88-012S-0604.

Review the manufacturer product specifications

Compatibility and Fitment

Confirm 3/8in tube OD and 1/4in NPTF, not BSP. This swivel male branch tee puts the thread on the perpendicular leg, so choose a run tee only when the threaded leg must align with the tube path.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ72DOTS0604, 35-S720604, 35S720604, AQ72-DOTS-6X4, AQ72DOTS6X4, 1872X6S, 3108 60 14DOT, 31086014DOT, 172PTC-6-4, 172PTC64, PL1372-6B, PL13726B, S272PMT-6-4, S272PMT64, 95411112M, BP272PPSDOT-6B, BP272PPSDOT6B, 272PPSDOT-6B, 272PPSDOT6B, 720604S, 02572-0604, 025720604, 121062.33, 12106233, 1572-6-4, 157264, 16364, 172PMT-6-4, 172PMT64, 1872x6S, 2472×6, 272PCS-6×4, 272PCS6x4, 5129546, 51915K73, 72PMT-6-4, 72PMT64, 91257, 972-1-64, 972164, 972-6PXDOTS, 9726PXDOTS, APTC72S-6B, APTC72S6B, D7072DTS6B, D7072DTS-6B, DOTS72-6-4, DOTS7264, DQ72DOTS-6X4, DQ72DOTS6X4, DQ72S-64, DQ72S64, NP72SW-6-4, NP72SW64, PC1472SW6B, PC1472SW-6B, PL-1372-6B, PP72SEE-DOT, PP72SEEDOT

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Cut both tubes square, deburr, push fully to the stop, then pull back gently. After pressurising, leak-test all three joints. Depressurise before pressing a collet to release tubing.

Trailer Applications

Trailers use this layout where a valve or manifold port connects to a straight air line in brake, suspension or auxiliary pneumatic circuits.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Videos

Use the fitting tutorial for tube preparation, insertion and release technique.

Why Choose ICS Trailers

ICS Trailers supplies matching air tube, connectors and tee configurations. If branch and run layouts look similar, send a photo and all three connection sizes.
