Description

Overview

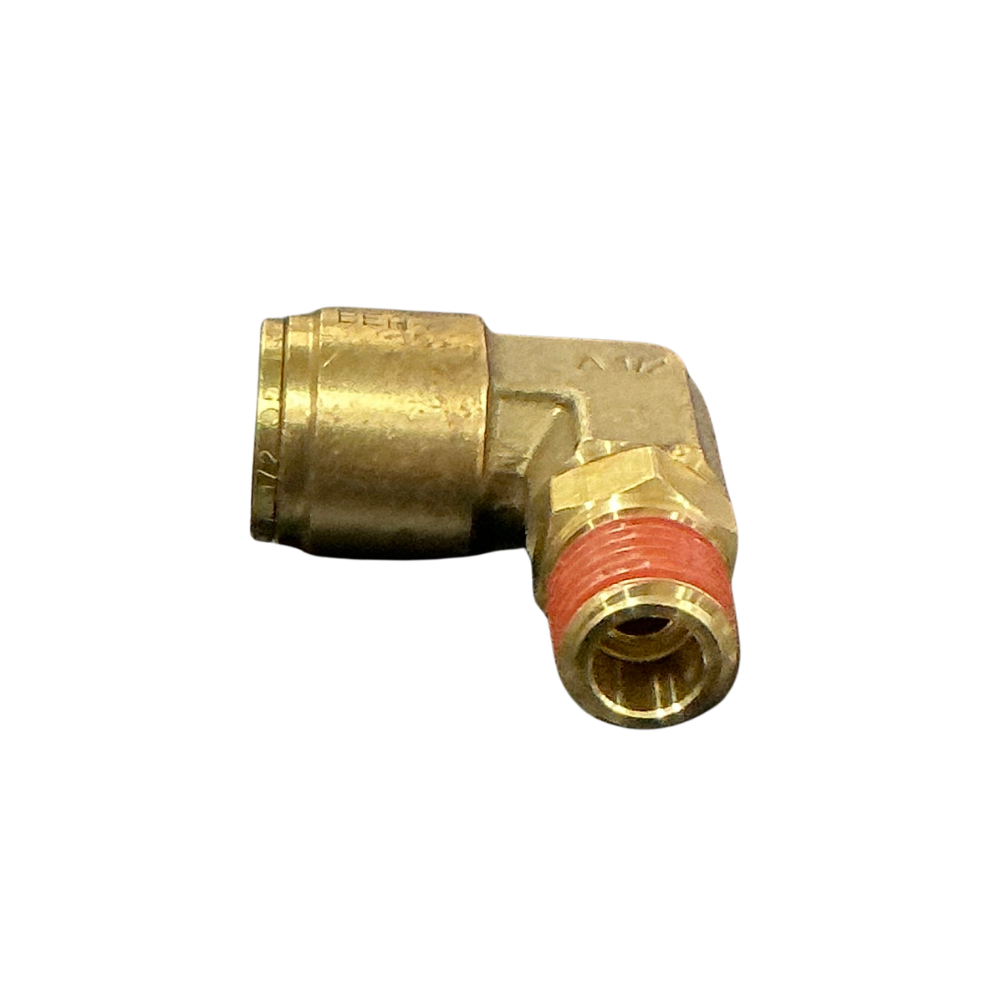

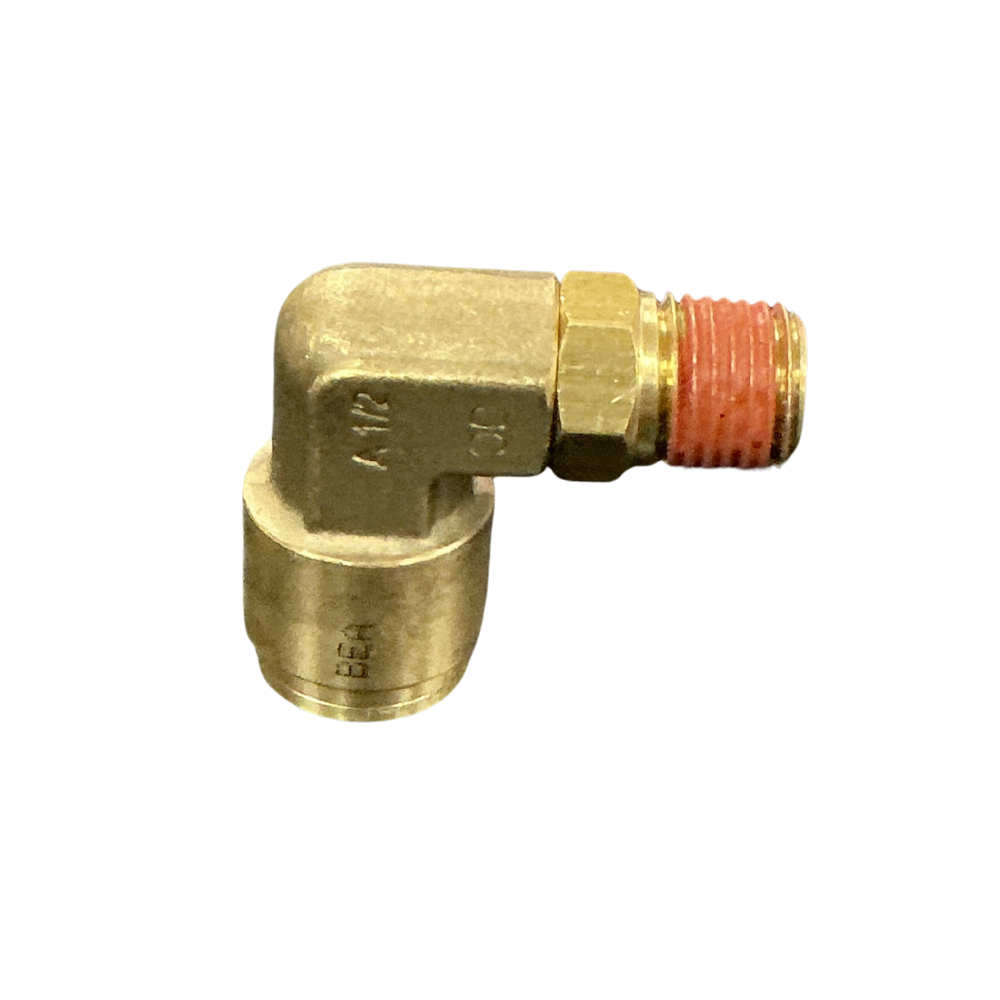

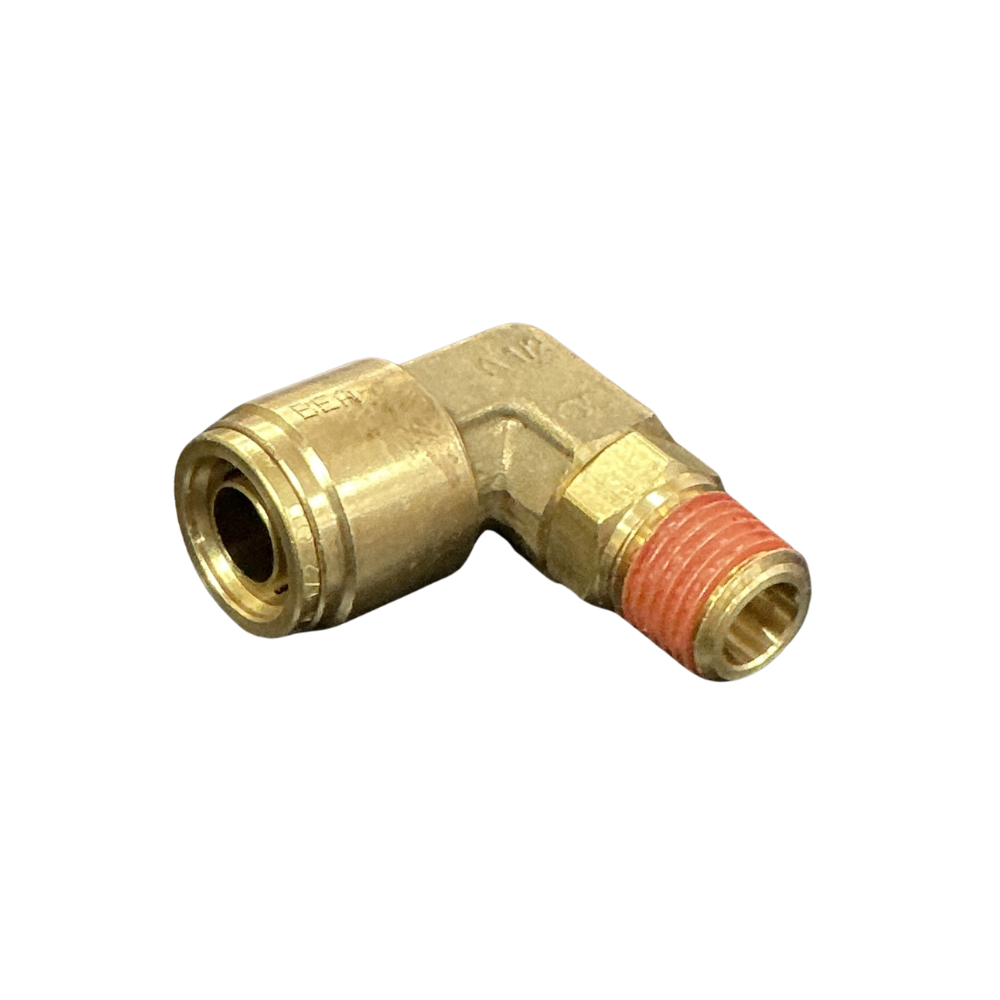

This swivel male elbow redirects 1/2in SAE J844 air brake tube through 90° into a 1/4in NPTF female port. Its rotating base positions the outlet before tube insertion, helping the larger air line meet a smaller threaded port without twisting.

Features

• Push-in collet accepts 1/2in outside-diameter tube.
• 1/4in NPTF male connection carries pre-applied thread sealant.
• Forged brass elbow body with a swivel mounting section.
• 150 psi maximum rating across -40°C to 104°C.

Specifications and Materials

The brass body uses an NBR tube seal and reusable release collet. Maximum length is 1.65in with a 9/16in thread hex. Part number: 88-005S-0804.

See the manufacturer product specifications.

Compatibility and Fitment

Measure the tube by outside diameter and confirm the receiving port is 1/4in NPTF rather than BSP. Select this swivel male elbow for 1/2in imperial tube only; 12mm tube is close in size but does not match the specified collet and seal.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ69DOTS0804, 35-S690804, 35S690804, AQ69-DOTS-8X4, AQ69DOTS8X4, 1869X8X4S, 3109 56 14DOT, 31095614DOT, 169PTC-8-4, 169PTC84, PL1369-8B, PL13698B, S269PMT-8-4, S269PMT84, 95411413M

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Cut the tube square and remove burrs. Push the line to the internal stop, then tug gently to confirm the gripping teeth have engaged. Keep extra compound clear of the bore because the thread is pre-sealed. Depressurise before disconnection, then pressurise and leak-test both joints after assembly.

Trailer Applications

Workshops use this variant when a 1/2in line enters a 1/4in valve, manifold or auxiliary port at 90°. The swivel layout assists routing near brackets, tank mounts and chassis rails without twisting the tubing during thread tightening.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies imperial air line, connectors and pneumatic fittings for brake and suspension plumbing. If the old fitting lacks clear markings, send the tube outside diameter, thread measurement and a photo of the installed angle before ordering.
