Air Brake Push-In Swivel Male Elbow 3/8in x 1/2 NPT
Air Brake Push-In Swivel Male Elbow 3/8in x 1/2 NPT
$19.00

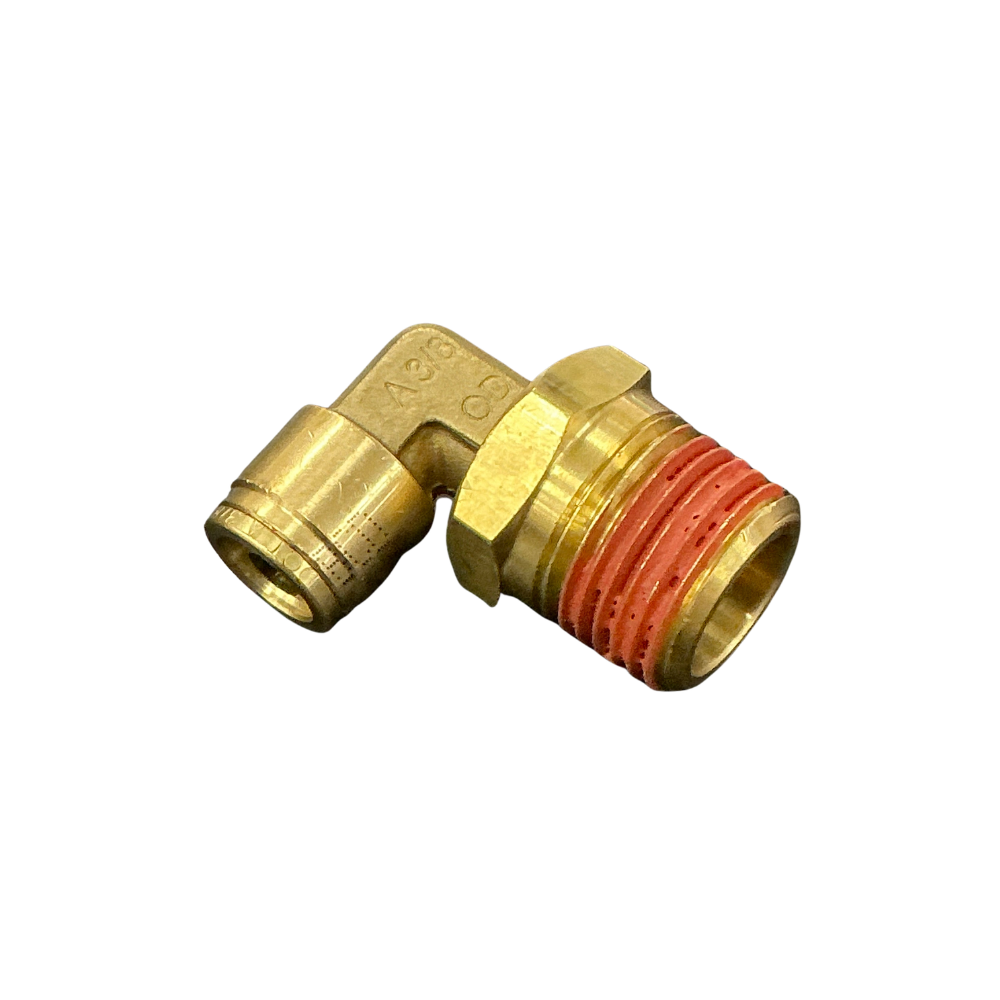

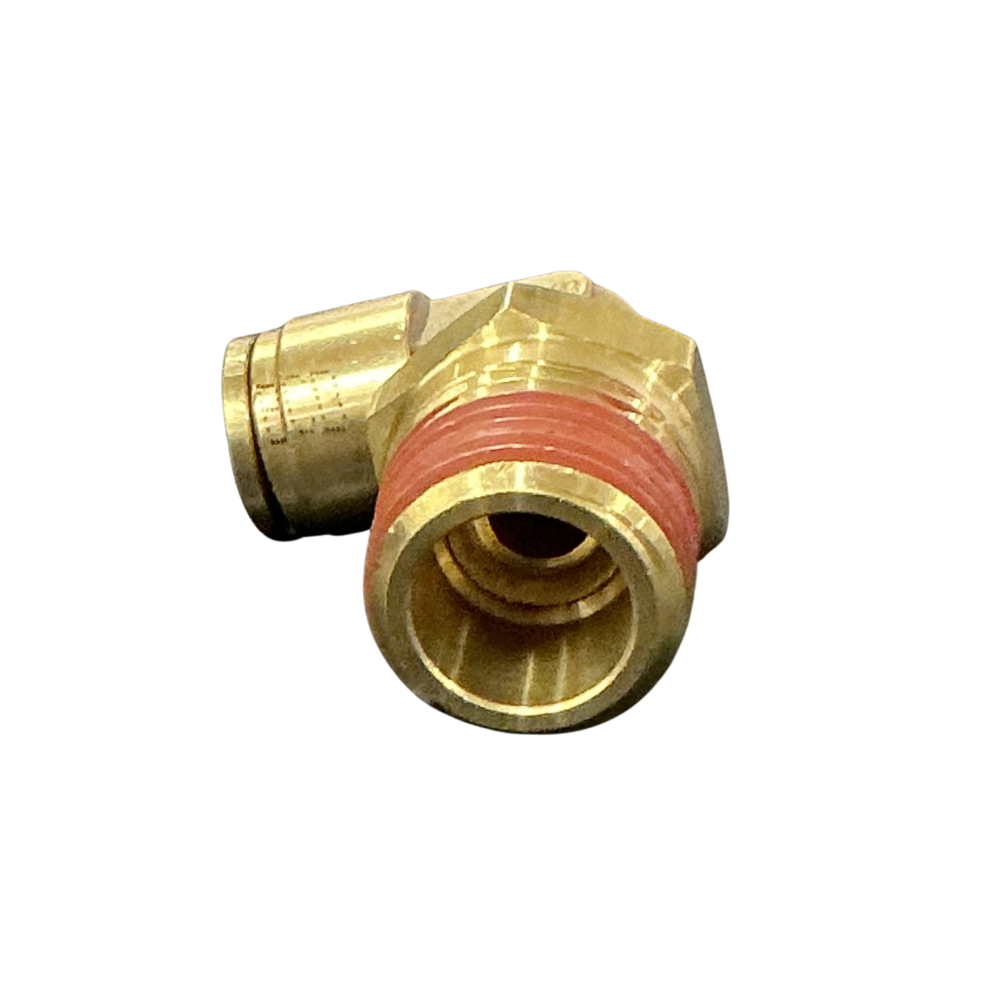

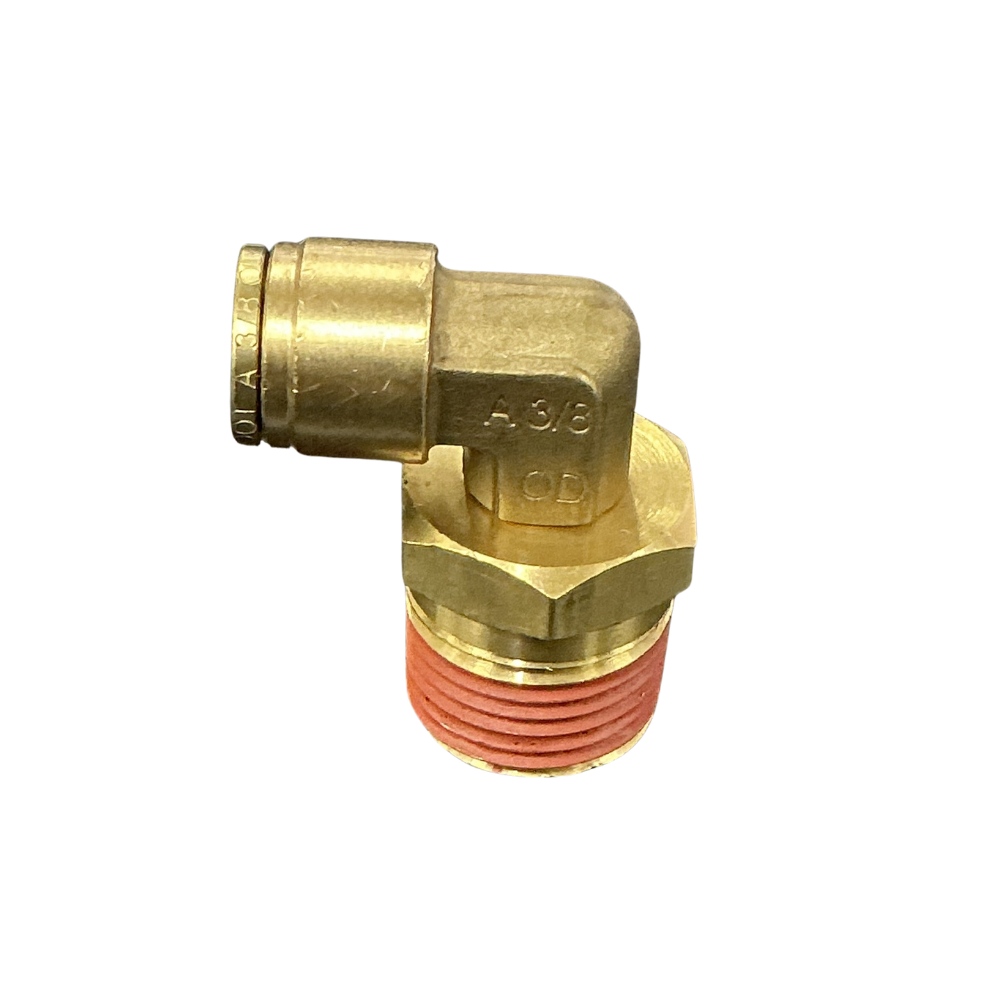

This brass 90° push-in air brake elbow connects 3/8in nylon tube to a 1/2in NPTF female port, while the swivel base supports line orientation in confined pneumatic installations and the male thread carries pre-applied red sealant.
Part number 88-005S-0608.
Description
Overview
This swivel male elbow turns 3/8in SAE J844 air brake tube through 90° into a 1/2in NPTF female port. Its rotating base positions the outlet before the tube is connected, while the larger thread suits valves, tanks and manifolds with 1/2in ports.
Features
- Push-to-connect inlet for 3/8in outside-diameter tube.
- 1/2in NPTF male thread with pre-applied red sealant.
- Brass 90° body with a swivel base for line orientation.
- Rated to 150 psi from -40°C to 104°C.
Specifications and Materials
The brass body uses an NBR tube seal and push-in release collet. Maximum length is 1.85in with a 7/8in hex. Part number: 88-005S-0608.
See the manufacturer product specifications.
Compatibility and Fitment
Match the tube outside diameter and confirm the receiving port is 1/2in NPTF, not BSP. Use this swivel male elbow only with 3/8in imperial tube; 8mm and 10mm tube will not seal in the collet.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ69DOTS0608, 35-S690608, 35S690608, AQ69-DOTS-6X8, AQ69DOTS6X8, 1869X6X8S, 3109 56 22DOT, 31095622DOT, 169PTC-6-8, 169PTC68, PL1369-6D, PL13696D, S269PMT-6-8, S269PMT68, 95411420M
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Alternate style | 88-005-0608 | Fixed 90° elbow, 3/8in x 1/2in |
| Alternate angle | 88-005DS-0608 | 45° swivel elbow, 3/8in x 1/2in |
| Alternate thread | 88-005S-0602 | 90° swivel elbow, 3/8in x 1/8in |
| Alternate thread | 88-005S-0604 | 90° swivel elbow, 3/8in x 1/4in |
| Alternate thread | 88-005S-0606 | 90° swivel elbow, 3/8in x 3/8in |
Compliance and Safety
Cut the tube square, remove burrs and push it to the internal stop. Avoid excess thread compound over the pre-applied sealant because loose material can enter the air passage. Depressurise the circuit before removal, then pressure-test both joints after assembly.
Trailer Applications
Trailer and truck workshops use this larger-port elbow where a 3/8in line meets a 1/2in valve, reservoir or manifold port. The 90° outlet routes air brake, suspension and auxiliary pneumatic lines around nearby chassis hardware without a tight bend.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| DQ69DOTS0608 | 35-S690608 | 35S690608 |
| AQ69-DOTS-6X8 | AQ69DOTS6X8 | 1869X6X8S |
| 3109 56 22DOT | 31095622DOT | 169PTC-6-8 |
| 169PTC68 | PL1369-6D | PL13696D |
| S269PMT-6-8 | S269PMT68 | 95411420M |
Why Choose ICS Trailers
ICS Trailers supplies matching air line and pneumatic fittings for brake and suspension repairs. For identification help, send a photo of the old markings with the tube outside diameter and male thread measurement.
