Air Brake Push-In Swivel Male Elbow 1/2in x 3/8 NPT
Air Brake Push-In Swivel Male Elbow 1/2in x 3/8 NPT
$24.00

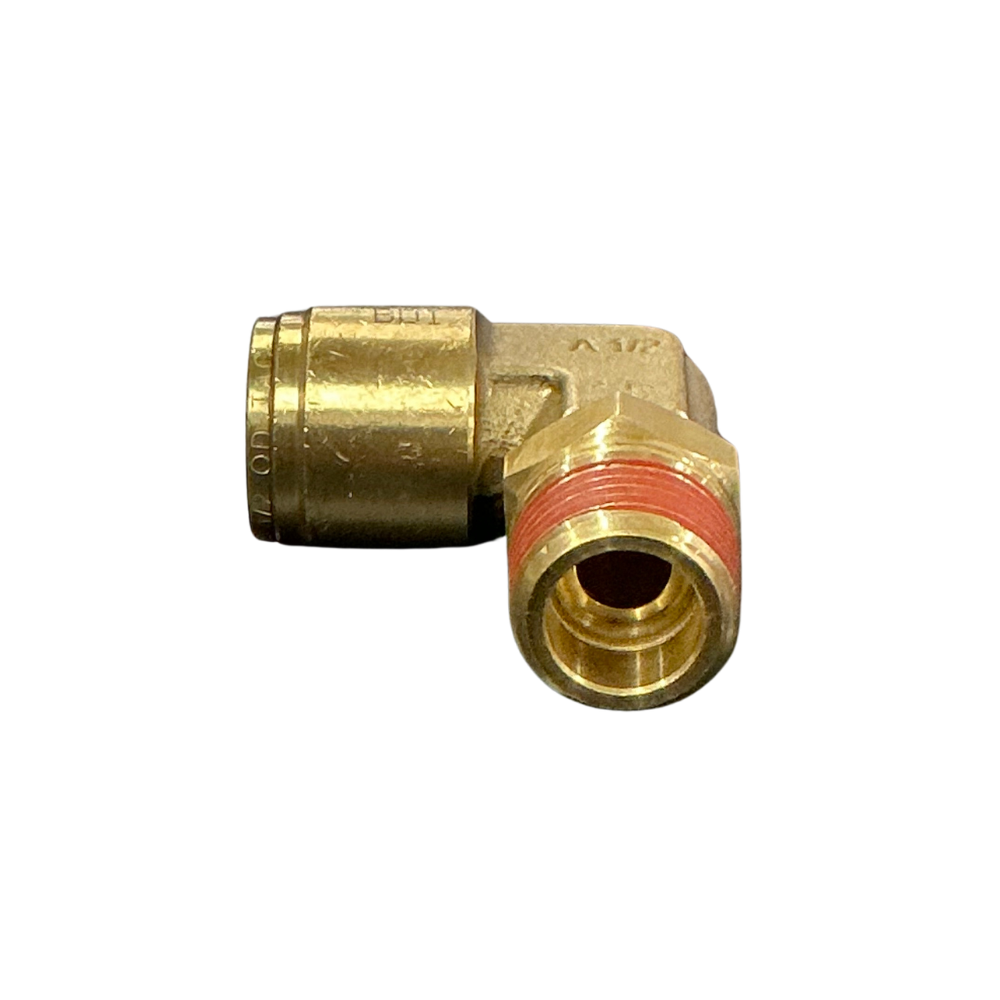

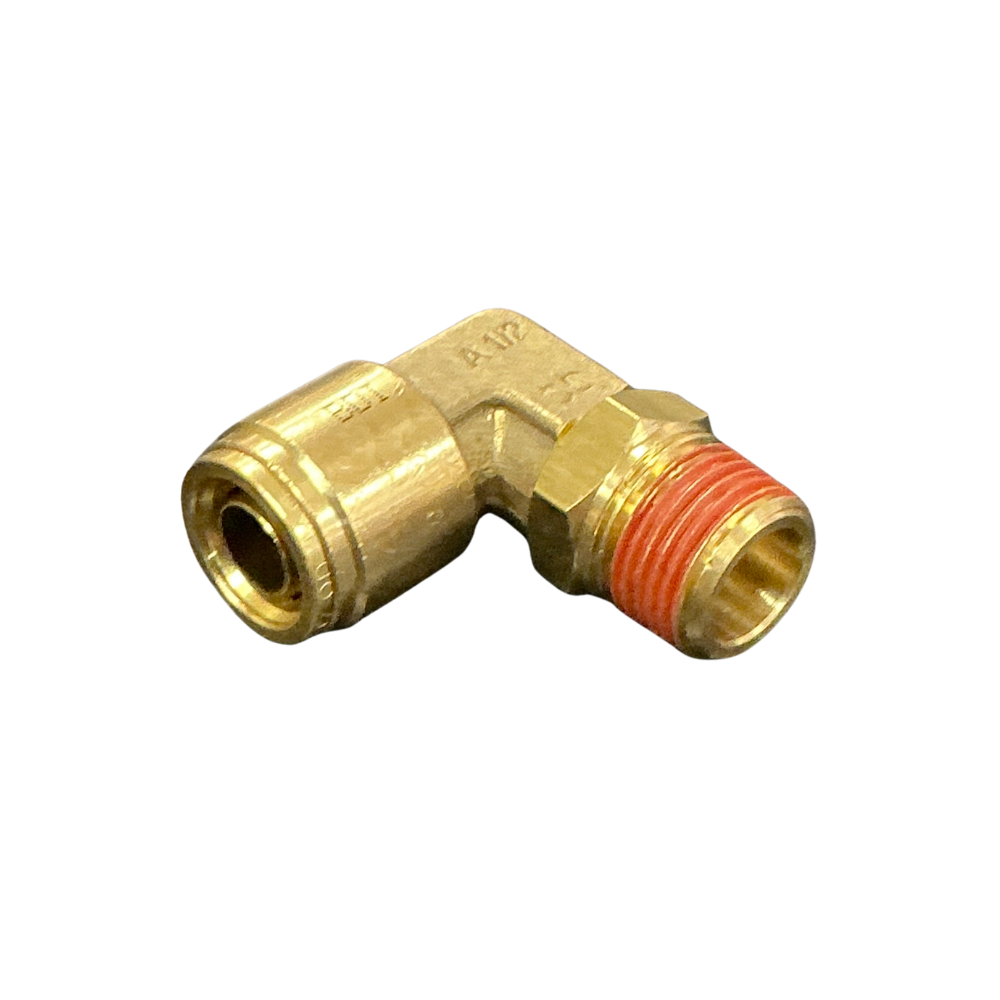

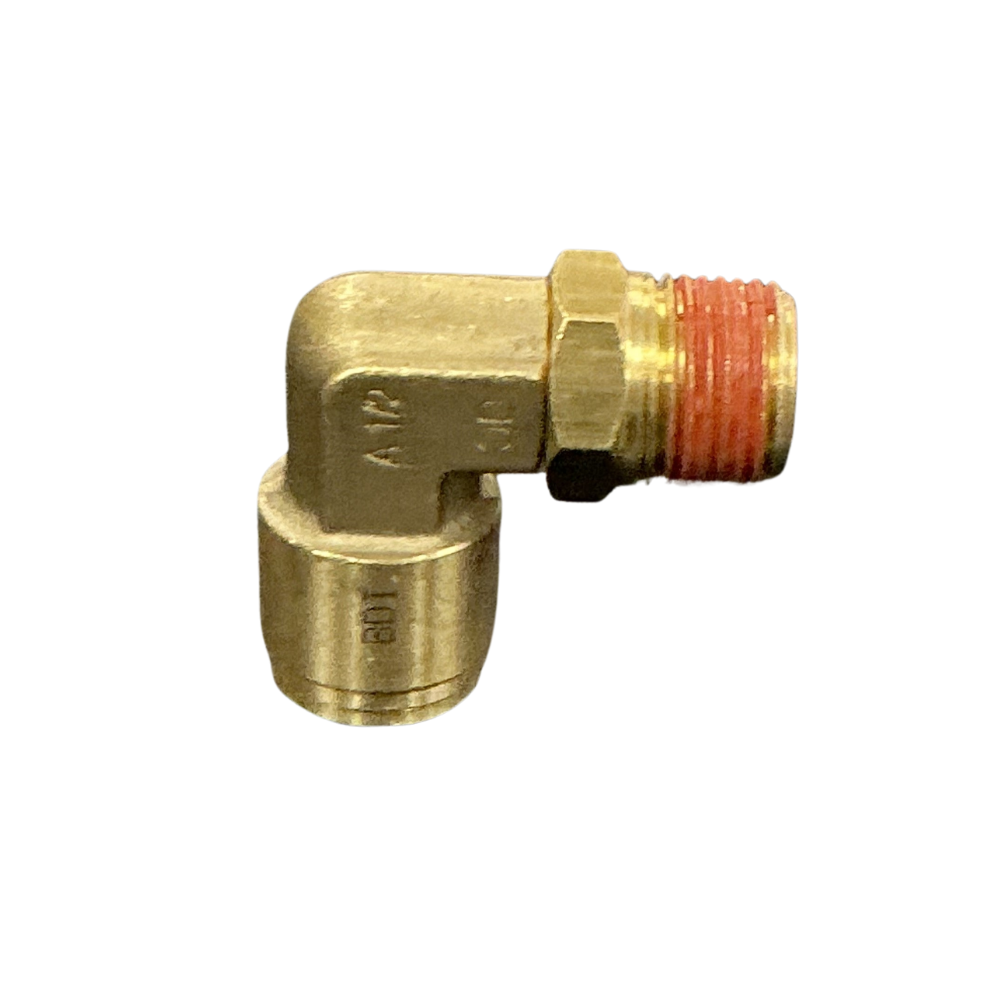

This brass 90° push-in elbow connects 1/2in nylon air brake tube to a 3/8in NPTF female port, with a swivel base for secure line alignment, reusable release collet and pre-applied thread sealant.
Part number 88-005S-0806.
Description
Overview
This swivel male elbow turns 1/2in SAE J844 air brake tube through 90° into a 3/8in NPTF female port. The rotating base sets outlet direction after tightening, so it prevents tube twist at valves, reservoirs and manifolds.
Features
- Push-to-connect collet accepts 1/2in outside-diameter nylon air brake tube.
- 3/8in NPTF male thread carries pre-applied sealant.
- Brass 90° body rotates at the threaded base.
- Working pressure reaches 150 psi from -40°C to 104°C.
Specifications and Materials
The brass body uses an NBR tube seal and reusable release collet. Overall length is 1.70in, while the thread hex is 11/16in. Part number: 88-005S-0806.
Compare size details in the manufacturer fitting dimensions before ordering.
Compatibility and Fitment
Match 1/2in OD tube to a 3/8in NPTF port, not BSP. Use this swivel male elbow with imperial tube; 12mm tube is close but does not seal correctly in the collet.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ69DOTS0806, 35-S690806, 35S690806, AQ69-DOTS-8X6, AQ69DOTS8X6, 1869X8S, 3109 56 18DOT, 31095618DOT, 169PTC-8-6, 169PTC86, PL1369-8C, PL13698C, S269PMT-8-6, S269PMT86, 95411421M
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Alternate style | 88-005-0806 | Fixed 90° elbow, 1/2in x 3/8in |
| Alternate angle | 88-005DS-0806 | 45° swivel elbow, 1/2in x 3/8in |
| Alternate thread | 88-005S-0804 | 90° swivel elbow, 1/2in x 1/4in |
| Alternate thread | 88-005S-0808 | 90° swivel elbow, 1/2in x 1/2in |
Compliance and Safety
Cut the tube square, remove burrs and insert it to the internal stop. Then pull back gently to confirm the teeth grip. Keep added sealant out of the air passage because the male thread already carries sealant. Depressurise before releasing the collet, then leak-test both connections.
Trailer Applications
This fitting suits air brake, air suspension and auxiliary pneumatic circuits where a 1/2in line enters a 3/8in valve, reservoir or manifold port. Its right-angle outlet also routes tubing around chassis rails, brackets and tank mounts without a tight bend.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| DQ69DOTS0806 | 35-S690806 | 35S690806 |
| AQ69-DOTS-8X6 | AQ69DOTS8X6 | 1869X8S |
| 3109 56 18DOT | 31095618DOT | 169PTC-8-6 |
| 169PTC86 | PL1369-8C | PL13698C |
| S269PMT-8-6 | S269PMT86 | 95411421M |
Why Choose ICS Trailers
ICS Trailers can help match imperial air line and pneumatic fittings for truck and trailer repairs. If the old connection is difficult to identify, send the tube outside diameter, thread measurement and a clear photo of the port before ordering.
