Description

Overview

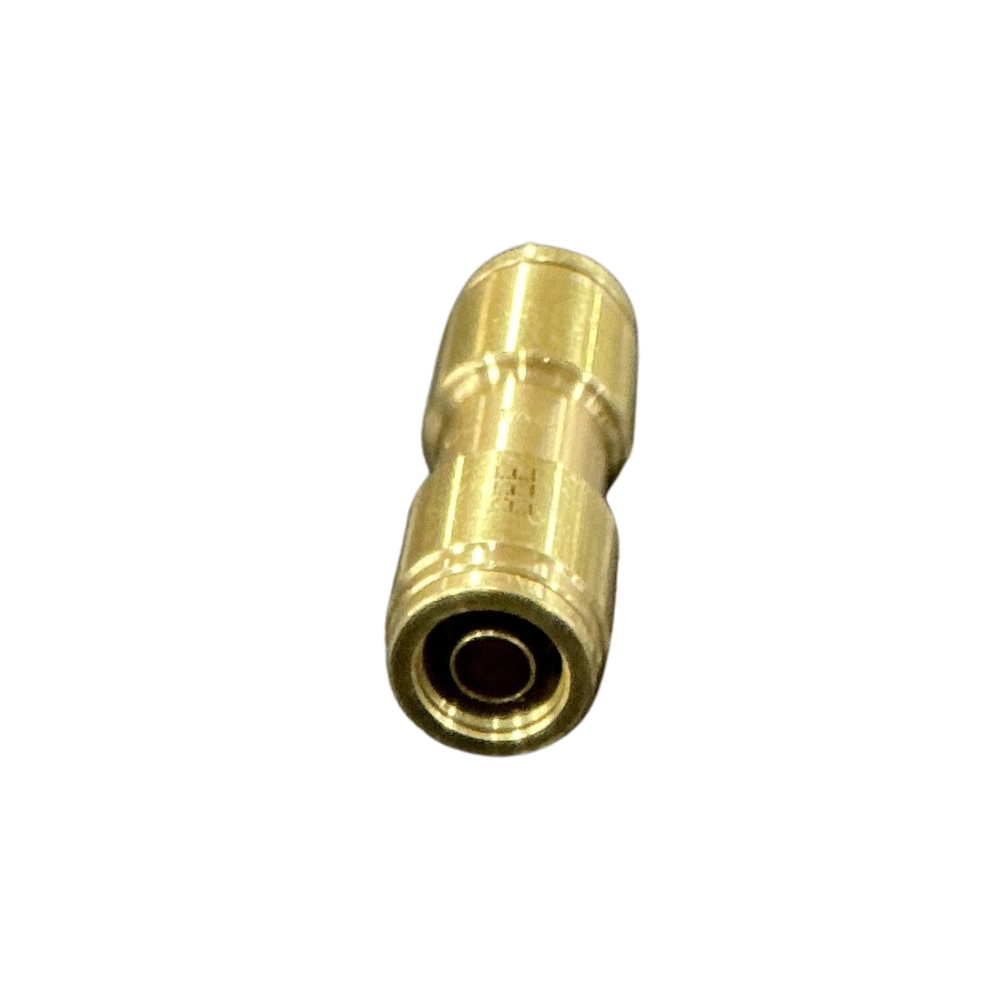

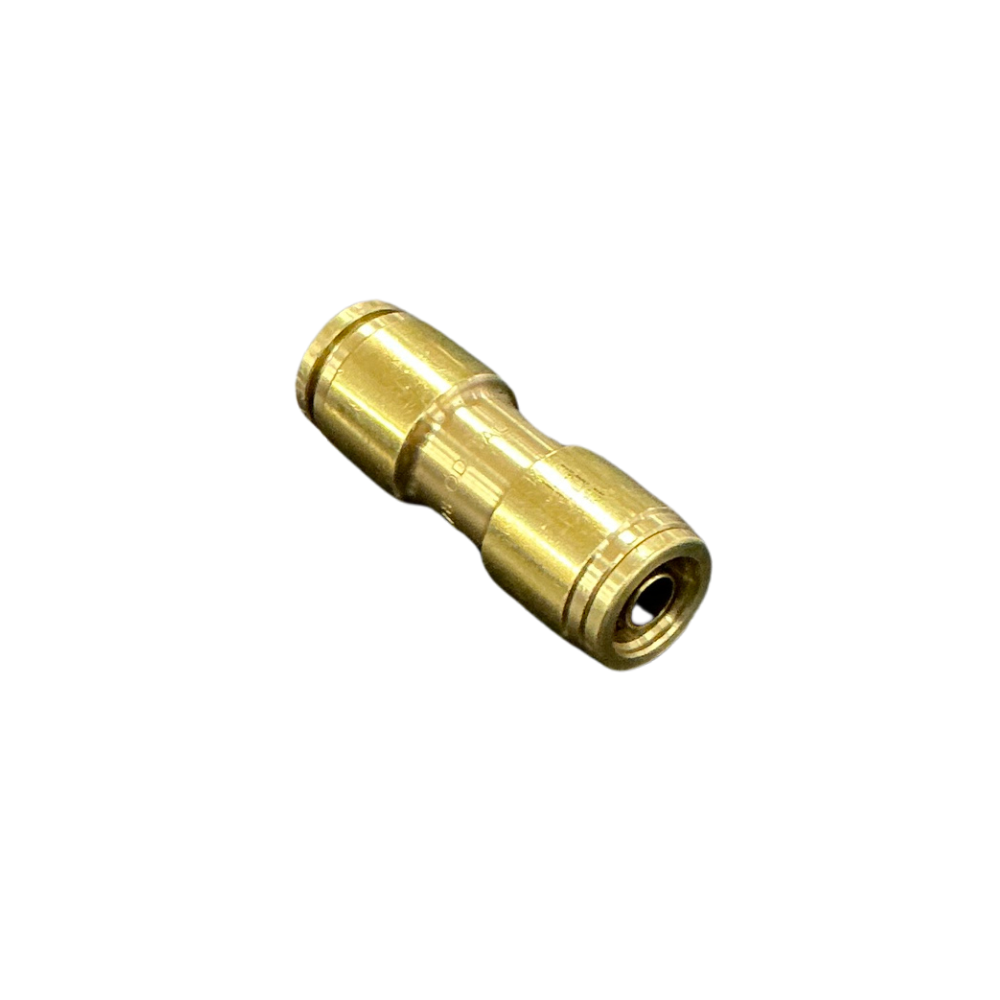

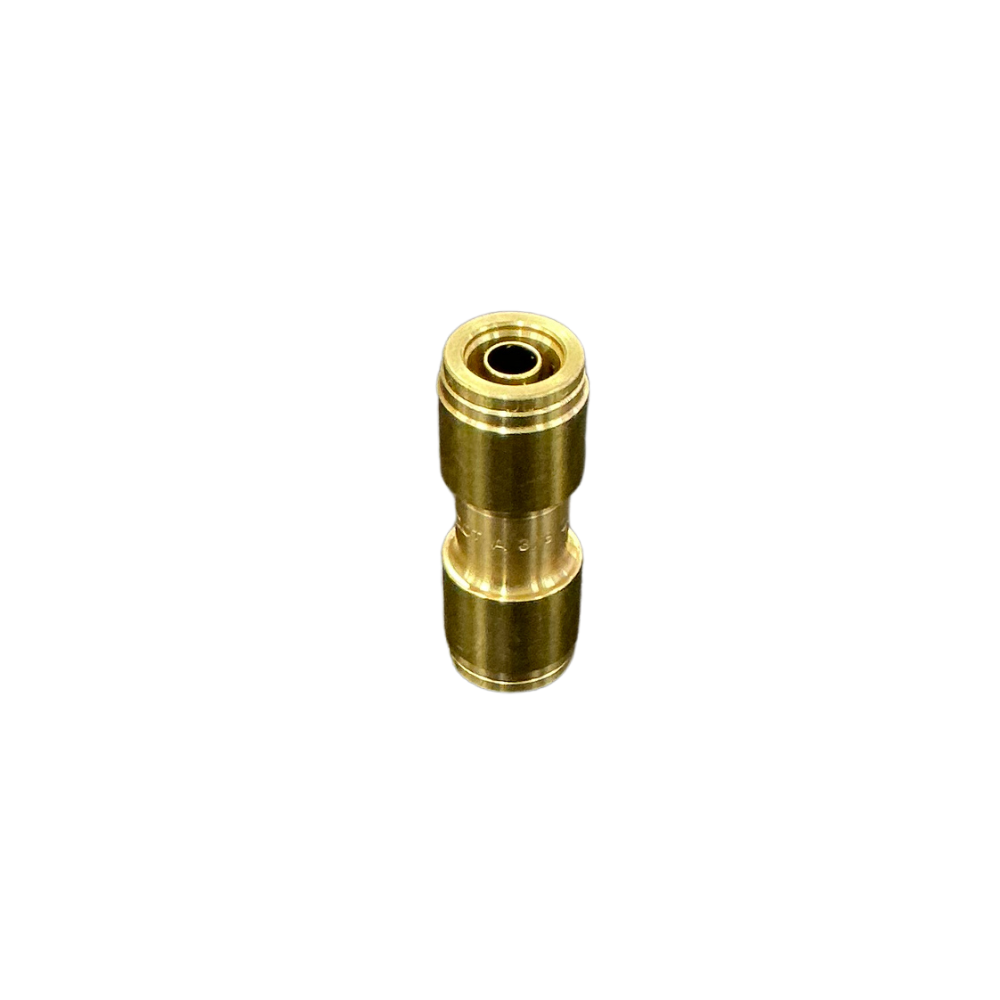

The 3/8 air brake push-in double union connects two matching sections of 3/8″ nylon tube in a straight run. It provides a compact tube-to-tube repair point without adding threads, changing the tube size or redirecting the air line.

Features

• Equal push-in connections for 3/8″ outside-diameter nylon tube
• Straight union configuration maintains the existing air-line direction
• Brass body with an integrated release collet at each end
• No separate compression nuts, olives or tube inserts required

Specifications and Materials

This double union has two matching 3/8″ push-in ports and a one-piece brass body. Each end grips and seals compatible nylon air-brake tube after the tube reaches the internal stop. The fitting can be released for servicing after the pneumatic system has been fully depressurised. Part number: 88-004-06.

See the official brass air-brake fittings catalogue

Compatibility and Fitment

Measure the outside diameter of both tube sections before ordering. Each connection requires 3/8″ imperial tube. Do not substitute 10mm metric tube, a reducing union, a bulkhead union or a threaded coupling, as these use different dimensions or installation methods.

Cut each tube end square, remove burrs and push the tube fully into the fitting. Pull back lightly to confirm both collets have engaged. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ62DOT06, 35-6206, 356206, AQ62-DOT-6, AQ62DOT6, 1862X6, 3106 60 00DOT, 31066000DOT

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the complete air circuit before cutting the tube or releasing either end of the fitting. Inspect the sealing areas for scoring, flattening, contamination and heat damage. Damaged tube may leak despite reaching the internal stop and should be cut back or replaced.

Support the repaired line so it is not pulled sideways through the union. Keep the tube clear of sharp edges, moving components and heat sources, then pressurise the circuit gradually and leak-test both connections.

Trailer Applications

Workshops use this 3/8″ straight union to repair or extend air-brake, air-suspension and auxiliary pneumatic lines on trucks and trailers. The equal tube connections suit an existing straight run where no branch, threaded port or change in line size is needed.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies imperial push-in unions, elbows, tees and connectors for heavy vehicle air-line repairs. Send a clear photo and the measured tube outside diameter when the existing fitting size is difficult to identify.
