Bulkhead Fitting 3/8 NPT Female x 1/2 NPT Male
Bulkhead Fitting 3/8 NPT Female x 1/2 NPT Male
$14.00
Threaded pass-through air fitting with a 3/8″ NPT female port, 1/2″ NPT male end and 1″-14 NF mounting thread for fixed trailer and workshop pneumatic connections where the thread type and panel fit must match.
Part number AB0905.
Description
Overview

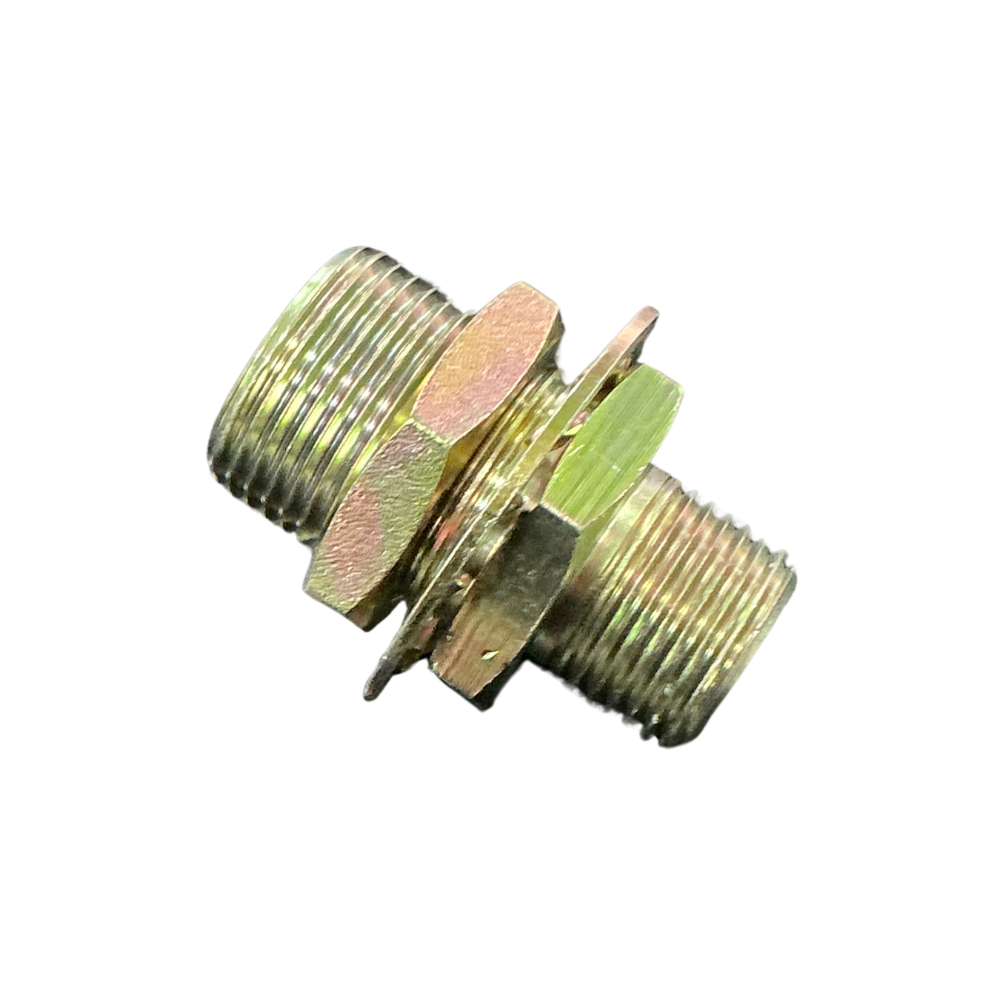

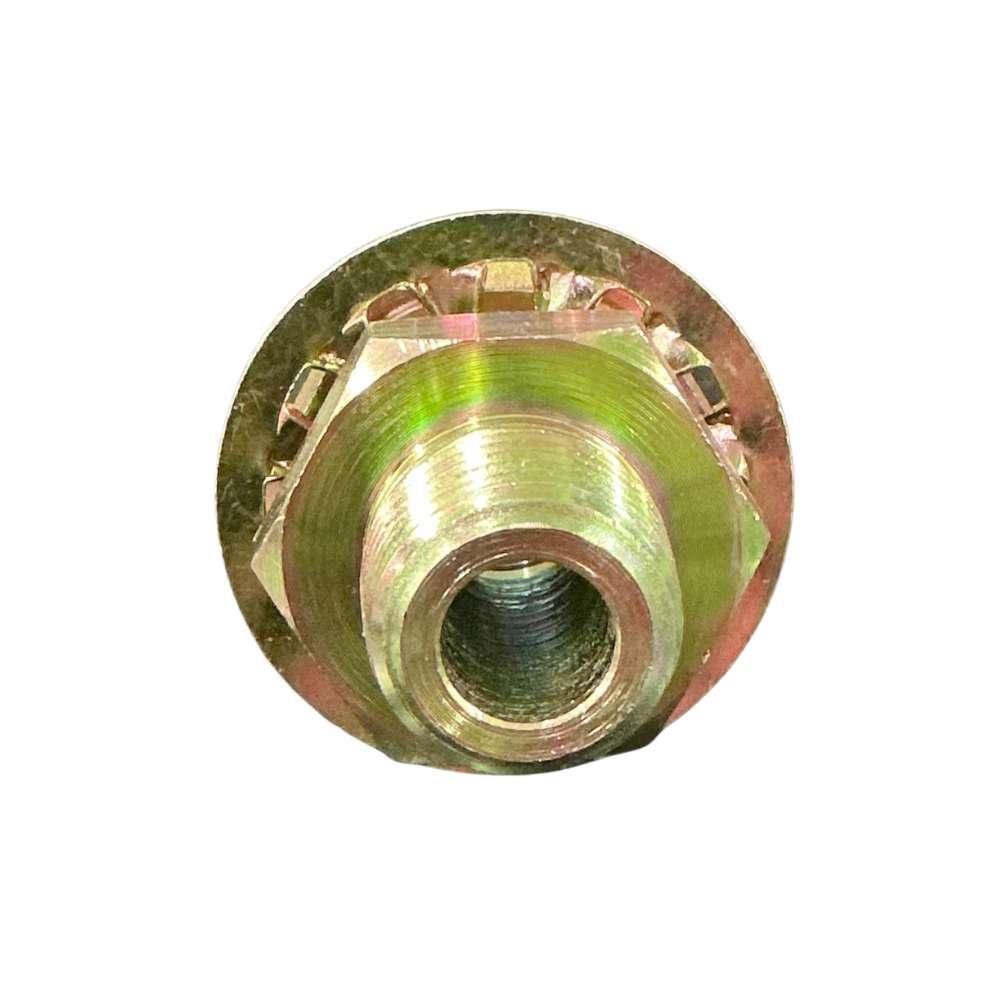

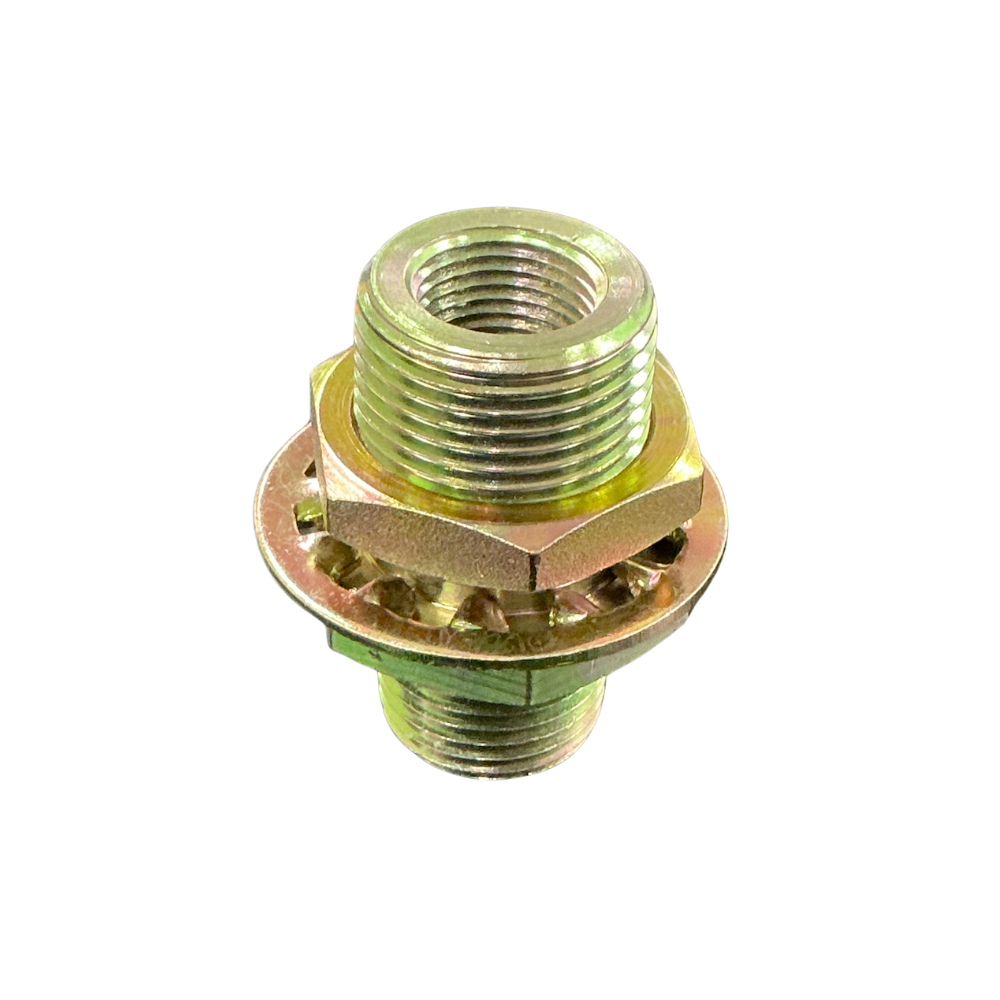

This bulkhead fitting creates a fixed threaded pass-through where an air line crosses a trailer frame, bracket or panel. It combines a 3/8″ NPT female port, a 1/2″ NPT male end and a 1″-14 NF external mounting thread in a straight configuration.
Features
- 3/8″ NPT female connection.
- 1/2″ NPT male connection.
- 1″-14 NF thread for frame or panel mounting.
- Straight female-to-male air line connection.
Specifications and Materials
Product type: threaded bulkhead frame nipple.
Connection sizes: 3/8″ NPT female and 1/2″ NPT male.
Mounting thread: 1″-14 NF.
Part number: AB0905.
See the Swagelok pipe thread guide for practical guidance on identifying and sealing tapered NPT connections.
Compatibility and Fitment
Match all three thread details before ordering. NPT, BSP and parallel threads can appear similar but use different thread forms and sealing methods. Check the female port, male end, panel opening, panel thickness, lock nut clearance and wrench access. Use a compatible thread sealant on the tapered NPT joints while keeping sealant clear of the air passage.
Related Parts
Check the related parts against the required mounting and connection arrangement.
| Use | Part number | Part type |
|---|---|---|
| Lock nut to suit | AB0908 | 1/2″ air fitting lock nut |
| Related version | AB1401 | 1/2″ BSP non-sealing bulkhead coupling |
| Related version | AB1405 | 1/2″ BSP self-sealing bulkhead coupling |
Compliance and Safety
Depressurise the circuit before removal. Clean and inspect the threads, then tighten the fitting on its hex with a backup wrench so the panel and connected line do not twist. Repressurise the system and check both threaded joints for leakage.
Trailer Applications
This bulkhead fitting suits truck and trailer pneumatic repairs requiring a fixed connection through a frame member or mounting plate. It may be used within air brake, air suspension or auxiliary air plumbing when the port sizes, thread standards and mounting arrangement match the existing circuit.
Why Choose ICS Trailers
ICS Trailers supplies threaded air fittings, adaptors, couplings and sealing items for trailer pneumatic repairs. For help identifying an old fitting, send clear photos, thread measurements and the panel opening size before ordering.
