Description

Overview

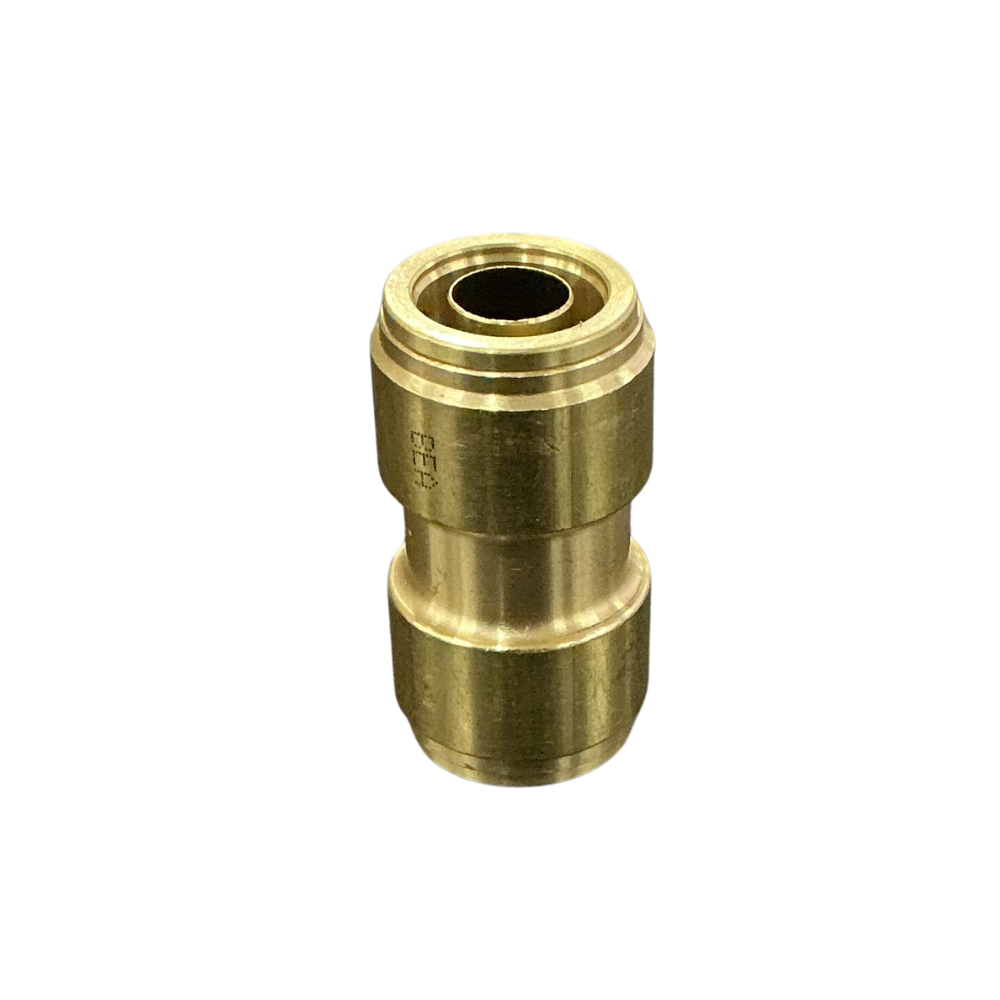

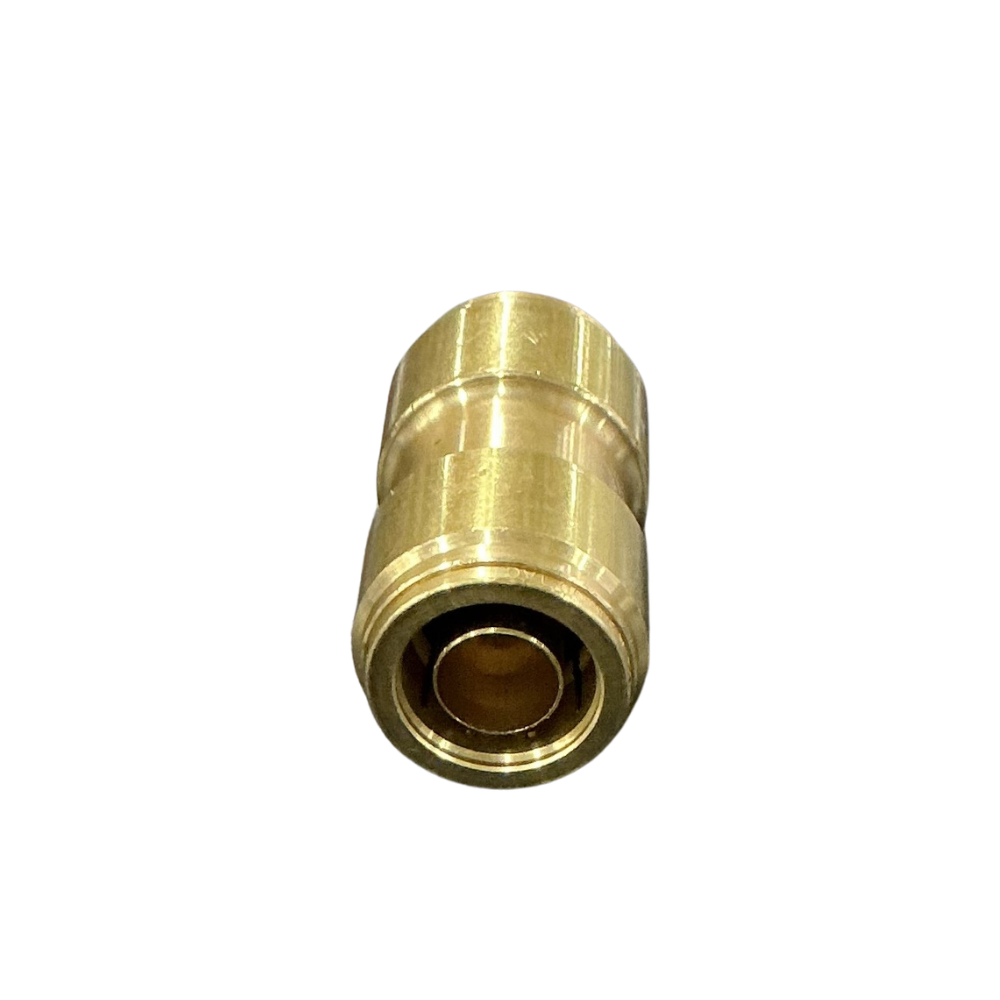

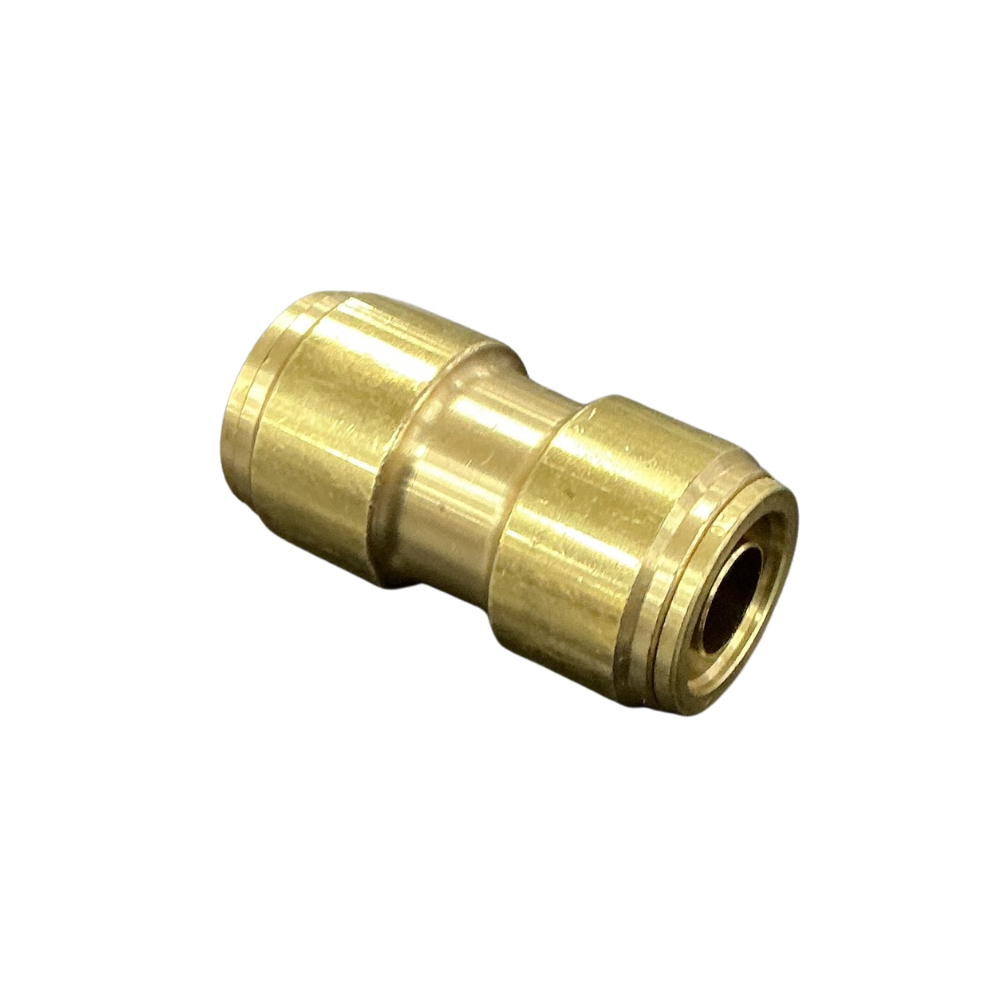

The 5/8 air brake push-in double union joins two matching sections of 5/8″ nylon tube in a straight pneumatic line. This larger union suits repairs or extensions where the existing tube size and direction must remain unchanged without adding a threaded connection.

Features

• Equal push-in connections for 5/8″ outside-diameter imperial tube
• Straight tube-to-tube layout maintains the existing air-line direction
• Brass one-piece body with a release collet and seal at each end
• Connects without separate compression nuts, olives or tube inserts

Specifications and Materials

This double union carries two equal 5/8″ push-in ports through a brass body. Each end grips and seals compatible air-brake tube after it reaches the internal stop. The fitting may be disconnected for servicing once the complete pneumatic circuit has been depressurised. Part number: 88-004-10.

Review the manufacturer brass air-brake fittings guide

Compatibility and Fitment

Measure both tube sections across their outside diameter before ordering. Each connection requires 5/8″ imperial tube. Do not substitute 16mm metric tube, a reducing union, a bulkhead fitting or a threaded coupling, as these use different dimensions or installation arrangements.

Cut each tube end square, remove burrs and push the tube fully into the internal stop. Pull back lightly to confirm both collets have engaged. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ62DOT10, 35-6210, 356210, AQ62-DOT-10, AQ62DOT10, 1862X10

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the air system before cutting the tube or releasing either connection. Inspect each sealing area for scoring, flattening, contamination and heat damage. Trim back or replace damaged tube rather than attempting to seal over a worn surface.

Support the repaired line so its weight does not pull sideways through the union. Keep the tube away from sharp edges, moving parts, heat sources and battery acid, then restore pressure gradually and leak-test both ends.

Trailer Applications

Workshops fit this 5/8″ union when repairing or extending larger air-brake supply lines and auxiliary pneumatic circuits on trucks and trailers. The equal ports suit a straight tube run where no branch, bend, thread or reduction is required.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The small difference between 5/8″ imperial tube and 16mm metric tube makes these unions easy to misidentify. Send a clear photo and the measured tube outside diameter when the existing fitting size is uncertain.
