Description

Overview

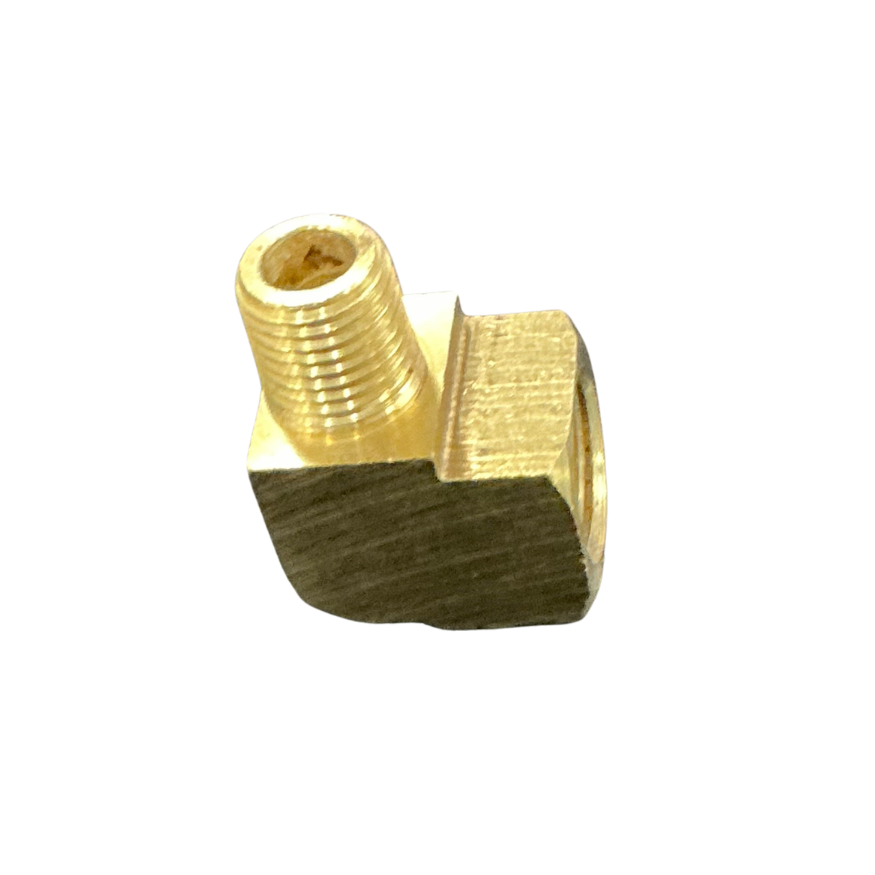

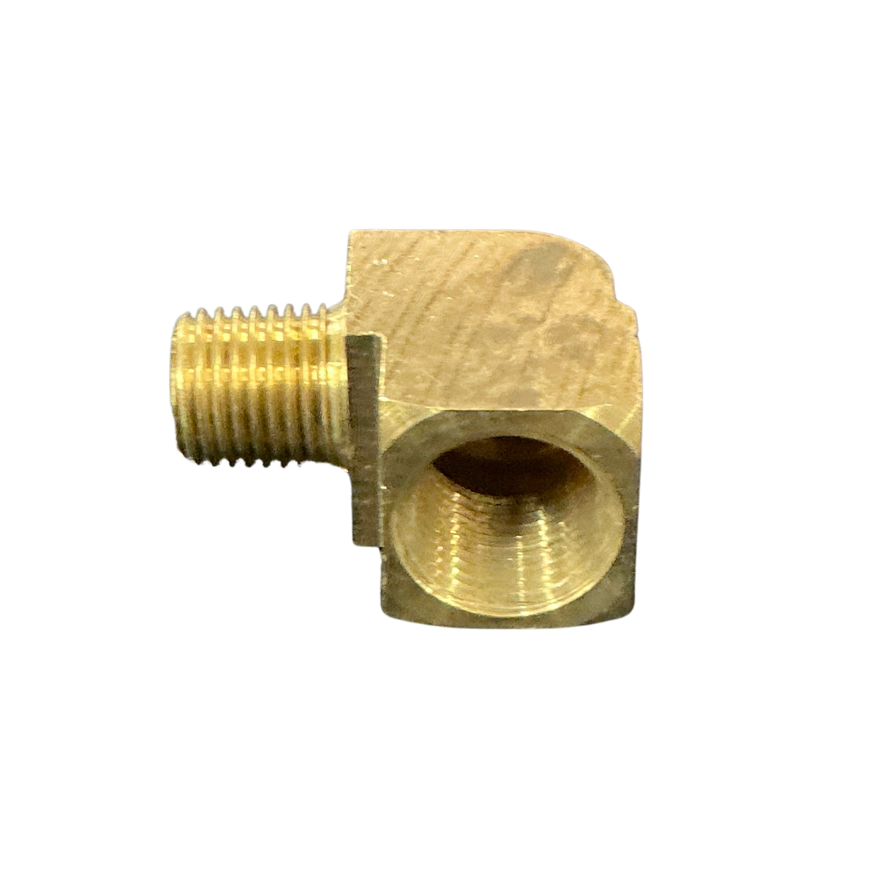

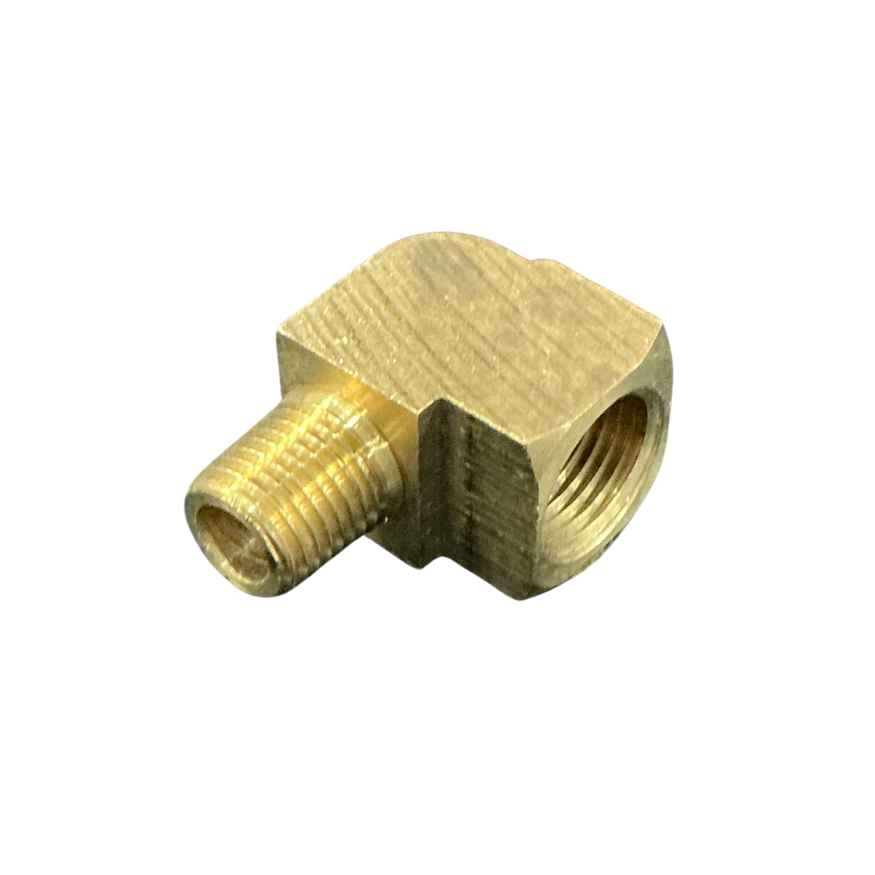

The 1/2 NPT brass elbow redirects a threaded pneumatic connection through 90 degrees while keeping both ports at the same nominal size. Its male-to-female street-elbow layout removes the need for a separate nipple, which helps when pipework must turn inside a confined installation.

Features

• Standard 90-degree elbow configuration
• 1/2 NPT male and female connections
• Solid brass threaded body
• Same-size inlet and outlet ports

Specifications and Materials

This fitting has one external 1/2 NPT thread and one internal 1/2 NPT port. NPT connections use tapered pipe threads, so install the fitting with a sealing method suitable for the system medium. Part number: 02N25EL-08.

See the manufacturer 1/2 NPT brass street elbow specification

Compatibility and Fitment

Confirm both mating ports use 1/2 NPT threads before ordering. BSP, BSPT and NPS threads can look similar but use different thread forms, so check the old fitting markings or measure the thread. Also allow enough clearance to rotate the body during installation. This 1/2 NPT brass elbow suits a male-to-female turn and will not replace a male-to-male or female-to-female elbow.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 02-N2507E, 02N2507E

Related Parts

Check the related size versions below against the required port size before ordering.

Compliance and Safety

Depressurise the pneumatic system before removal. Clean the mating threads, apply suitable sealant, then tighten without overstressing the brass body. Restore pressure gradually and check both threaded joints for leakage before returning the equipment to service.

Trailer Applications

Workshops fit this elbow where air brake plumbing, suspension controls or auxiliary pneumatic lines need a compact right-angle turn and both adjoining components use 1/2 NPT ports. It also suits general compressed-air assemblies that accept brass threaded fittings.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies threaded air fittings for trailer repairs and workshop pneumatic work. If the thread form is unclear, send a photo of the old fitting and port measurements so the team can help narrow down the replacement.

Browse more Air Fittings
