Description

Overview

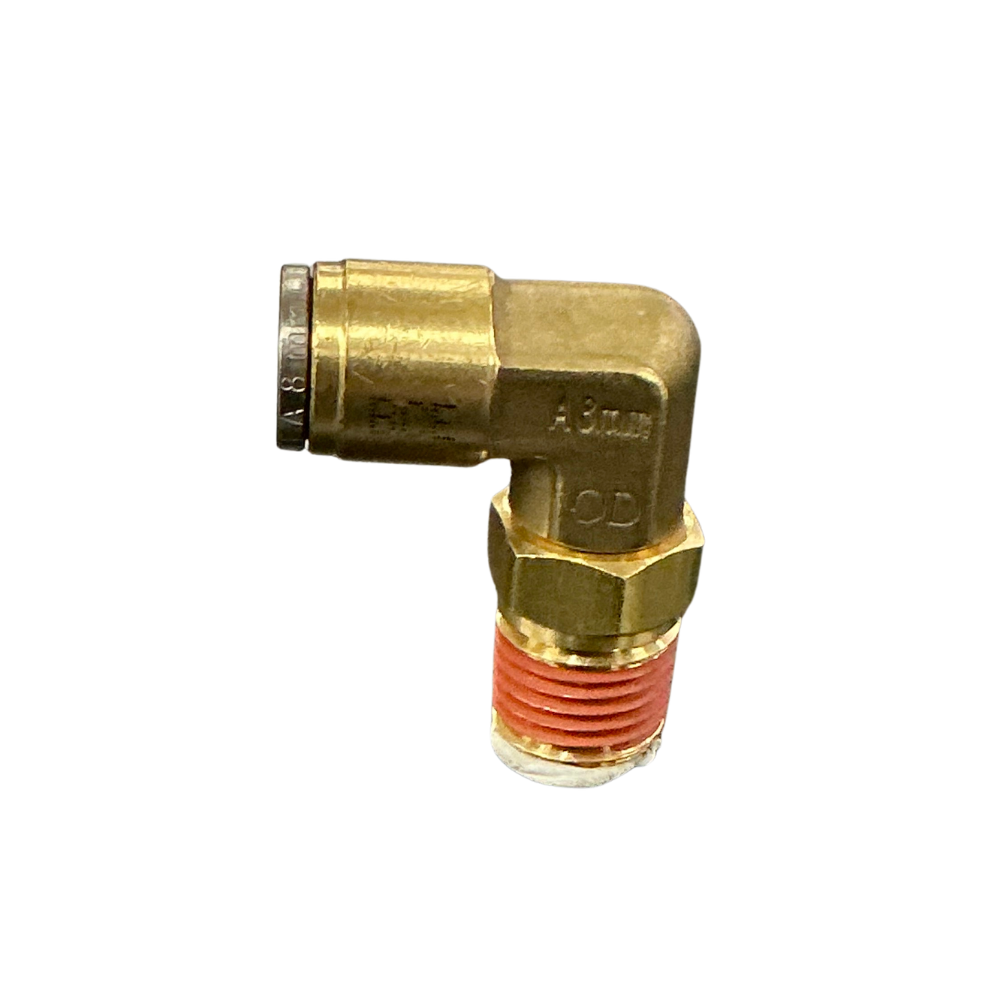

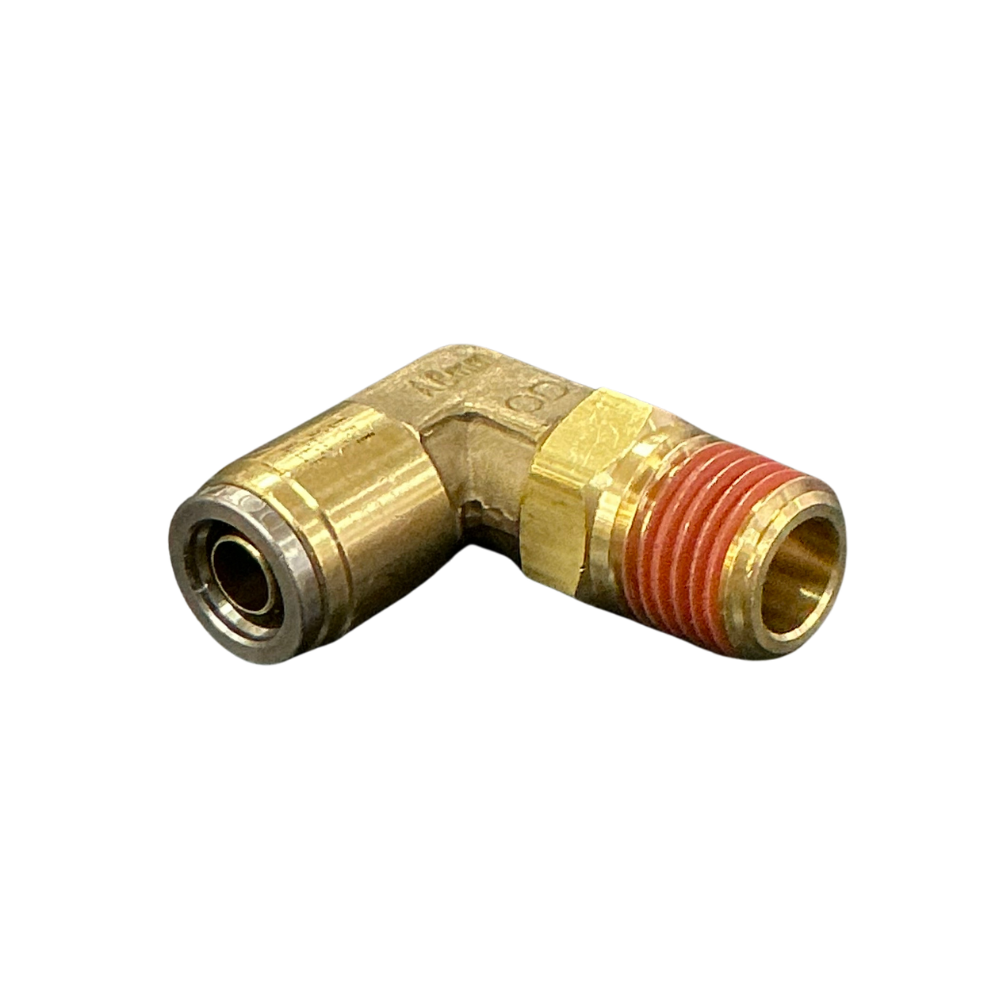

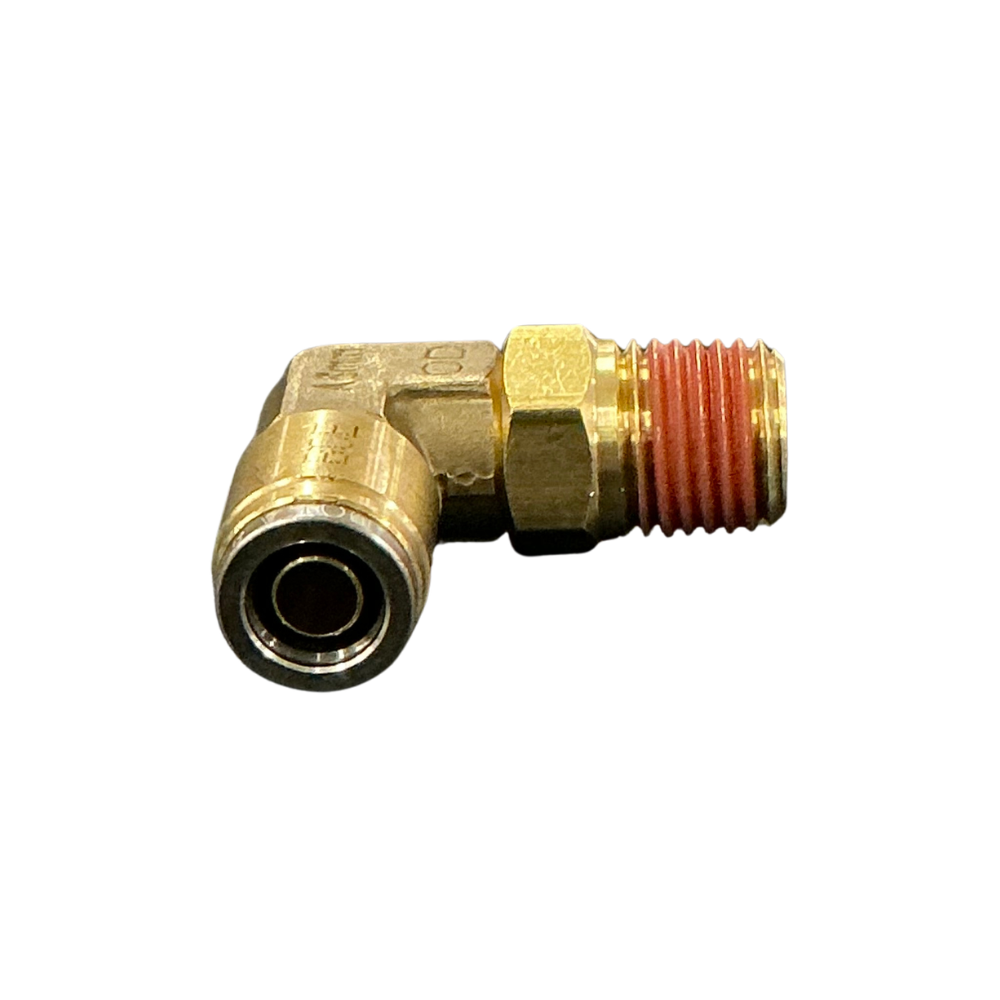

The 8mm x 1/4 NPT swivel male elbow connects 8mm outside-diameter nylon air brake tube to a female 1/4 NPTF port while turning the line through 90 degrees. Its threaded stem tightens independently from the elbow body, allowing the push-in outlet to be aimed toward the required tube route.

Features

• Push-in connection for 8mm tube outside diameter
• 1/4 NPTF male thread with pre-applied thread sealant
• Swivel 90-degree body for final outlet orientation
• Depressible collet allows tube removal during servicing

Specifications and Materials

Configuration: 90-degree swivel male elbow. Tube connection: 8mm push-in. Thread connection: 1/4 NPTF male. The brass fitting uses an internal elastomer O-ring, carries a maximum working pressure of 150 psi and operates from -40°C to 93°C. It meets DOT FMVSS 571.106 and SAE J2494 requirements and suits SAE J844 non-metallic air brake tubing.

Part number: 88-M005S-08N04.

Review the manufacturer fitting specifications

Compatibility and Fitment

Confirm the tube measures 8mm across its outside diameter and the receiving port has a 1/4 NPTF female thread. Imperial tube sizes can appear similar, while BSP or metric threads will not provide the correct engagement or seal.

Cut the tube square, remove damage or contamination from the insertion area, then push it fully through the collet to the internal stop.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. MDQ69DOTS804, M1869X8X4S, 35-MS690804, 35MS690804, MAQ69-DOTS-8X4, MAQ69DOTS8X4

Compliance and Safety

Depressurise the air system before removing the fitting or releasing the collet. Tighten the stem using its hex section, orient the swivel without loading the tube connection, then pull back gently on the inserted tube and leak-test the joint before service.

Trailer Applications

Workshops fit the 8mm x 1/4 NPT swivel male elbow at valves, manifolds and pneumatic control components where an 8mm line must leave an imperial threaded port at a right angle. The swivel body helps route tubing around brackets and nearby hardware without forcing a sharp bend beside the connection.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Metric tube and imperial pipe combinations are easy to misidentify. Send the old fitting markings, a clear photo, the tube outside diameter and the receiving port details if you need help narrowing down the connection.
