Description

Overview

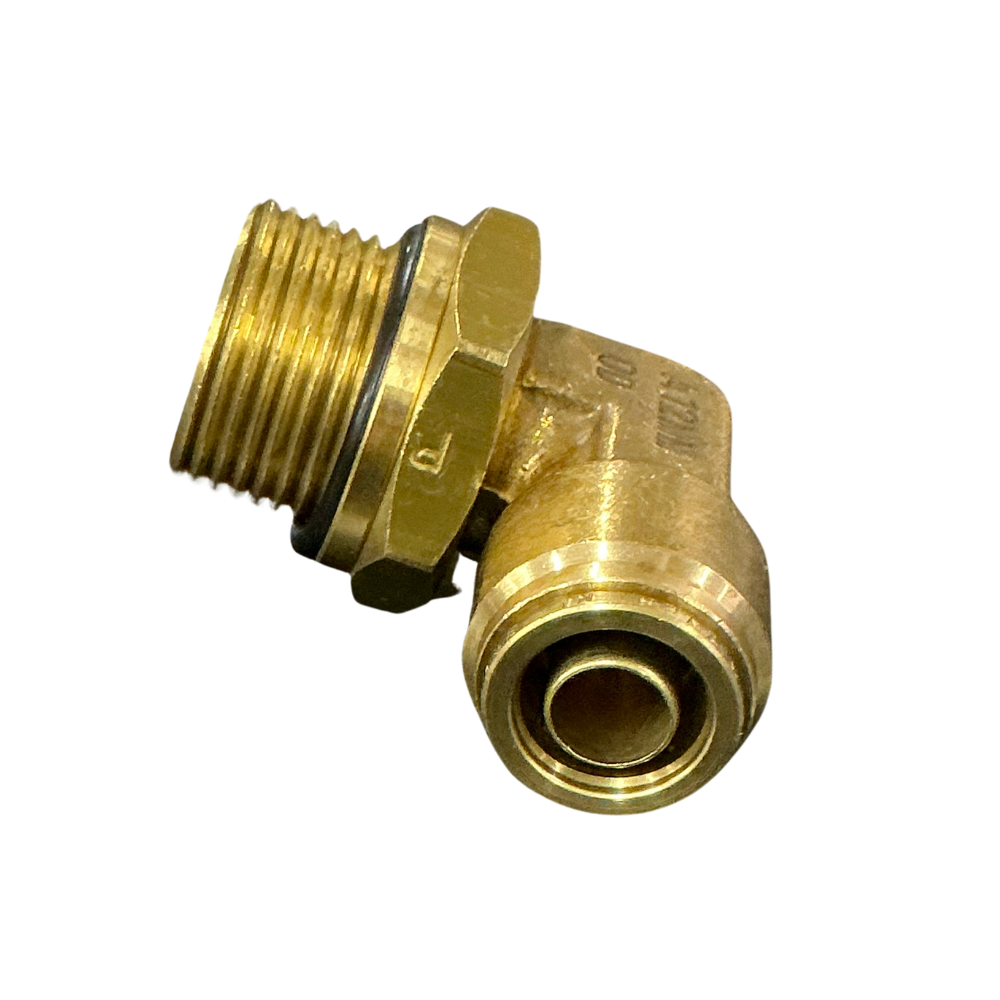

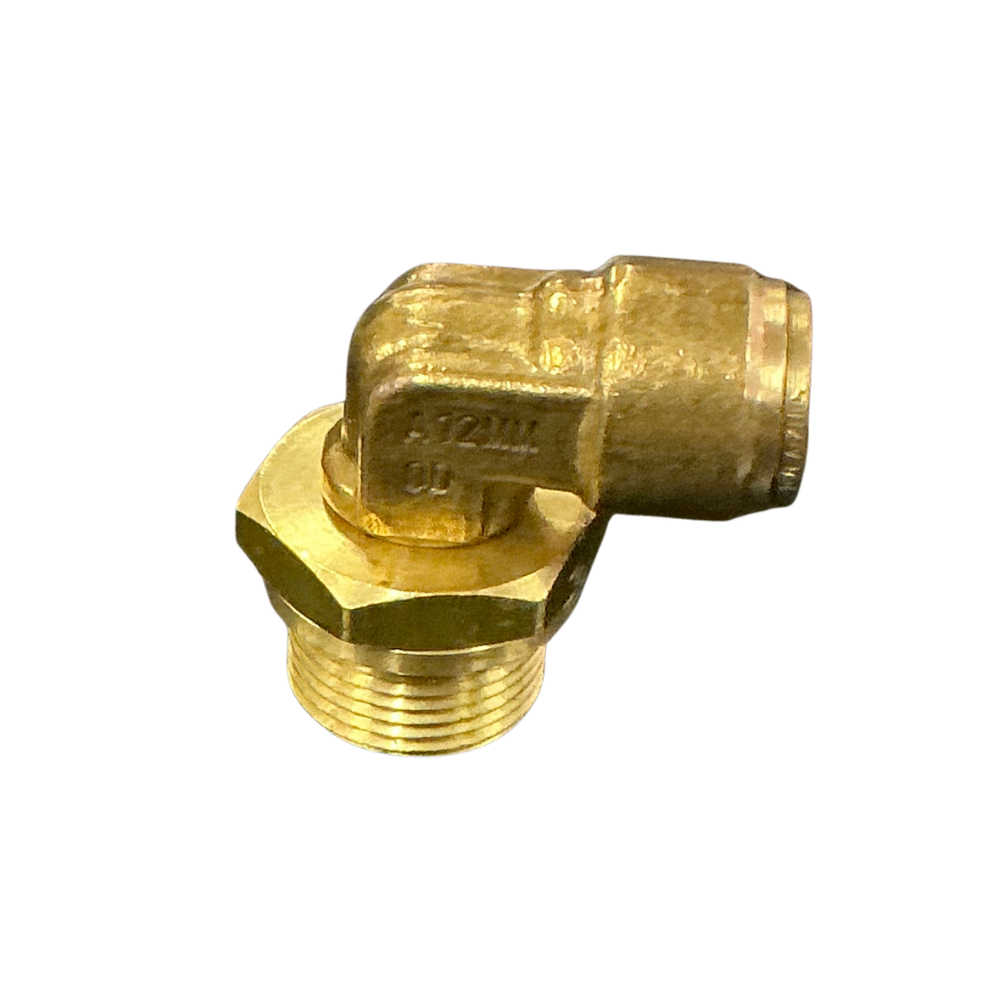

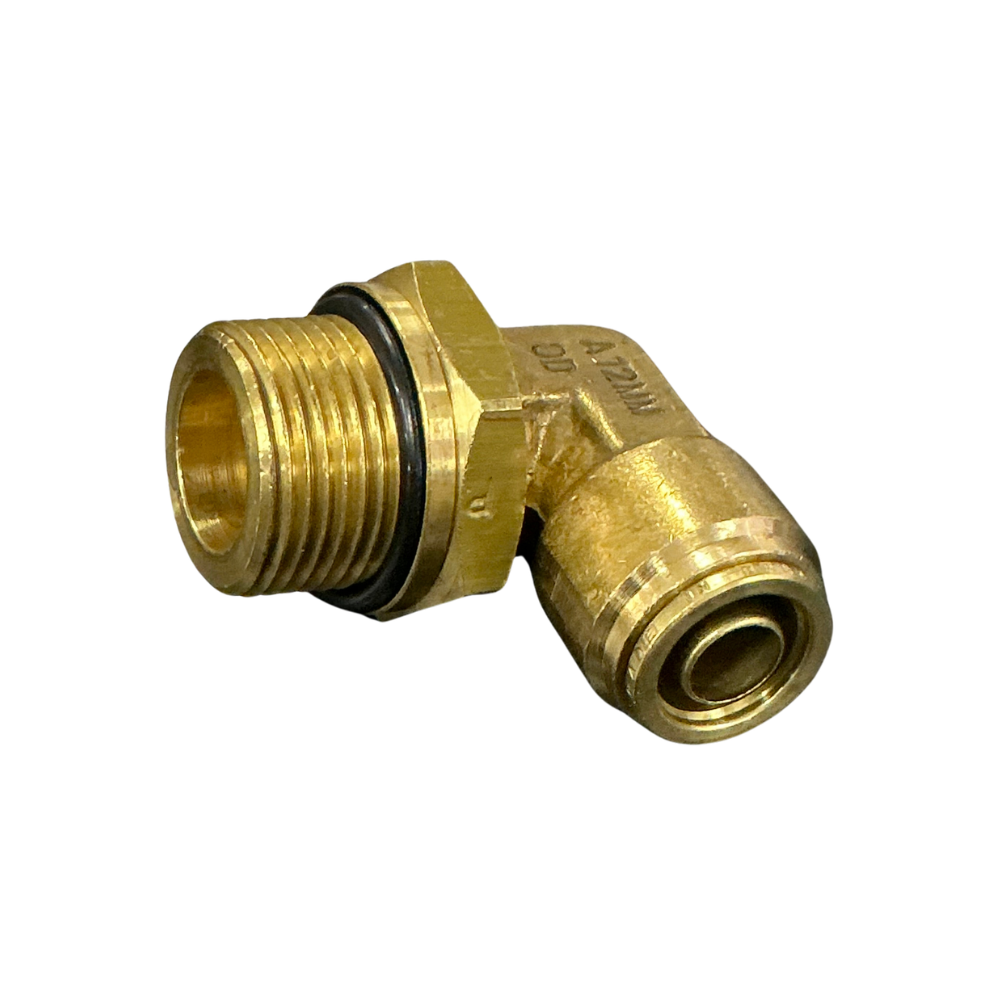

The 12mm x M22 swivel male elbow connects 12mm metric air brake tube to an M22x1.5 female port and turns the line through 90 degrees. Its swivel base lets the elbow face the required direction after tightening, which helps when tanks, valves or brackets restrict the tube route.

Features

• Push-in collet accepts 12mm outside-diameter nylon air brake tube.
• Swivel body directs the tube without twisting or forcing a tight bend.
• Brass construction carries the tube connection and rotating joint.
• Integral NBR O-ring seals the M22x1.5 connection at the port face.

Specifications and Materials

This fitting combines a 12mm push-to-connect end with an M22x1.5 parallel male thread. It carries a maximum working pressure of 150 PSI and operates from -40°C to 104°C. It suits SAE J844 nylon air brake tubing.

Part number: 88-M005S-12M22.

The manufacturer technical specifications cover the matching tube size, thread, materials and operating limits.

Compatibility and Fitment

Confirm the tube measures 12mm across its outside diameter and the receiving port uses an M22x1.5 thread with a suitable sealing face. The main ordering risk is choosing another M22 pitch or a fitting for imperial tube. Also check that the 12mm x M22 swivel male elbow can rotate into position without contacting surrounding hardware.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. MDQ69DOTS12M22, 35-MMS691222, 35MMS691222, MAQ69-DOTS-12XM22, MAQ69DOTS12XM22, M1869X12XM22S, C8UPMTB12-M22, C8UPMTB12M22, 97452168

Compliance and Safety

Depressurise the circuit before removal or installation. Cut the tube square, remove burrs and inspect the sealing surface for scoring. Then push the tube fully home, seat the threaded connection against its O-ring and leak-test both joints after restoring pressure. Replace the fitting if the collet, O-ring or swivel joint shows damage.

Trailer Applications

Workshops fit this elbow where a 12mm air line must turn directly from an M22 port. Typical service points include air reservoirs, brake valves, suspension controls and auxiliary pneumatic manifolds. This combination suits higher-flow connections where a straight connector would crowd the line or create an unsuitable bend.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies metric push-in fittings, nylon air line, unions and adaptors for trailer pneumatic repairs. If the old connection is difficult to identify, send a clear photo and confirm the tube diameter, thread pitch, sealing face and available rotation space.
