Description

Overview

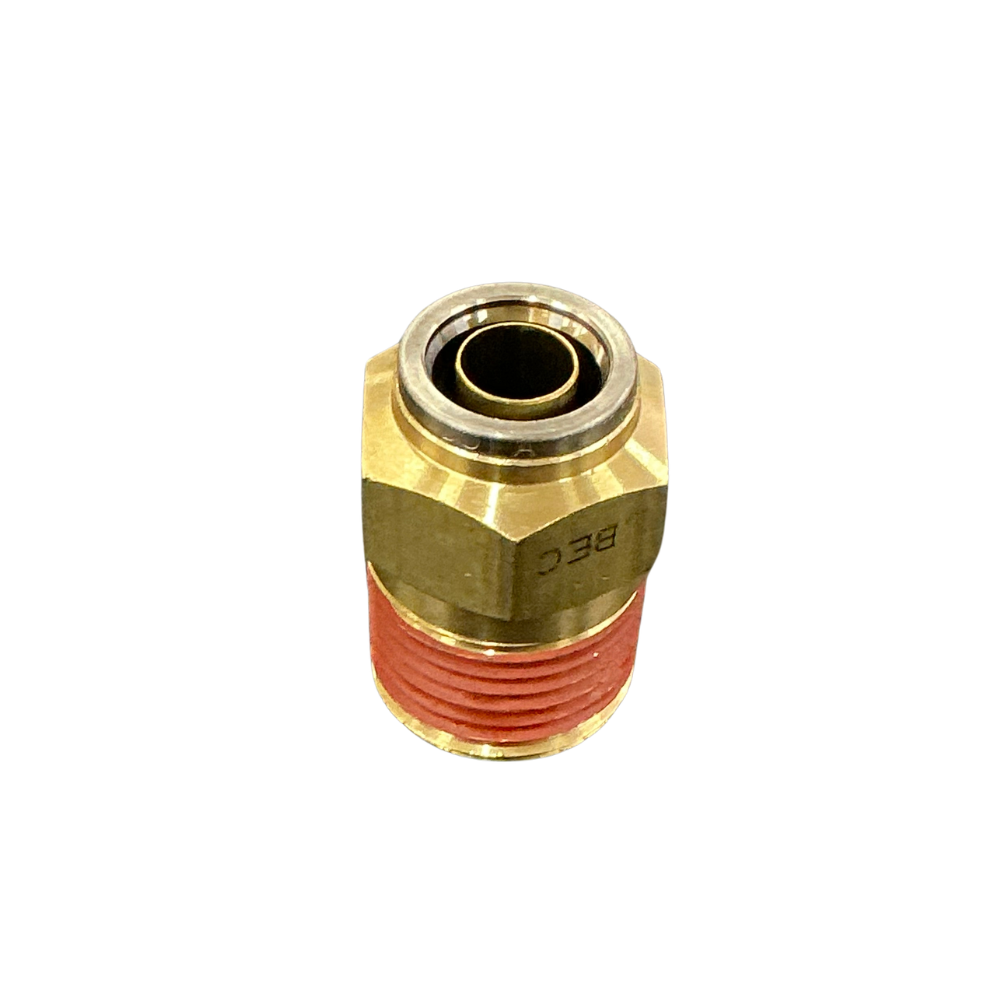

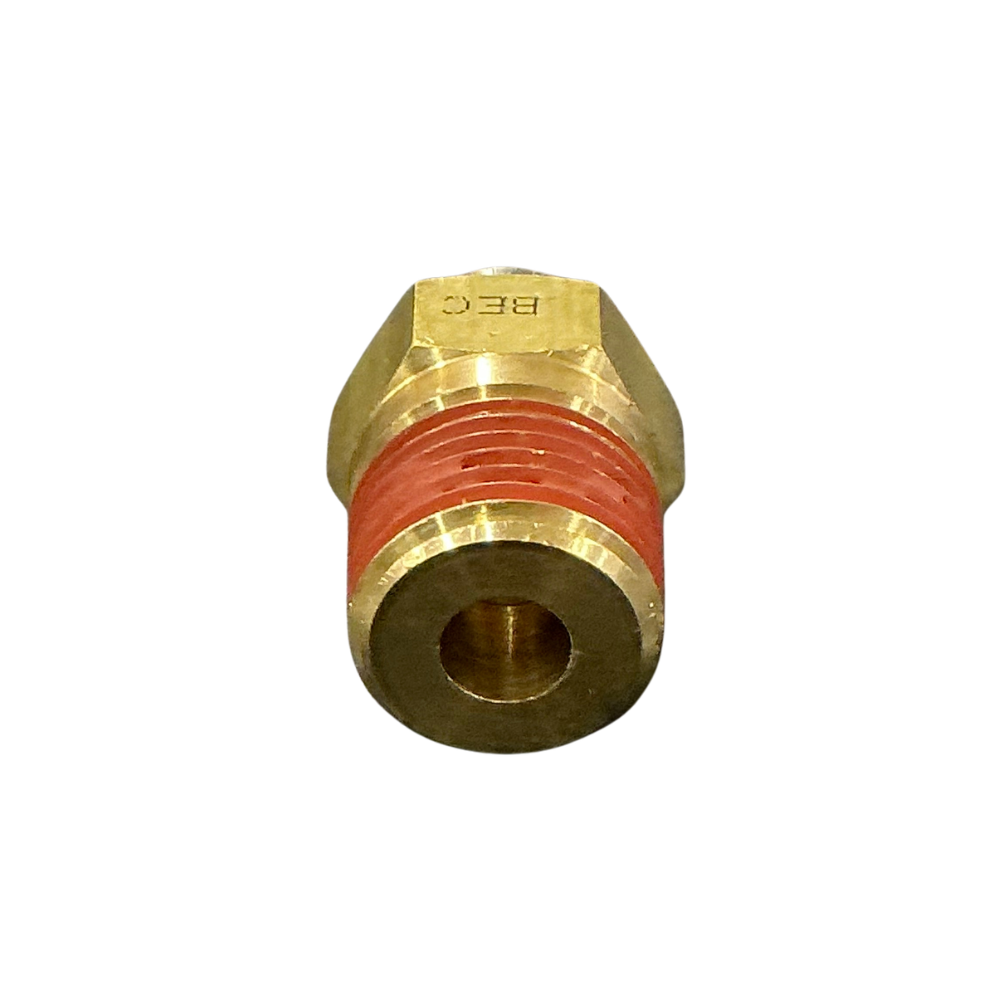

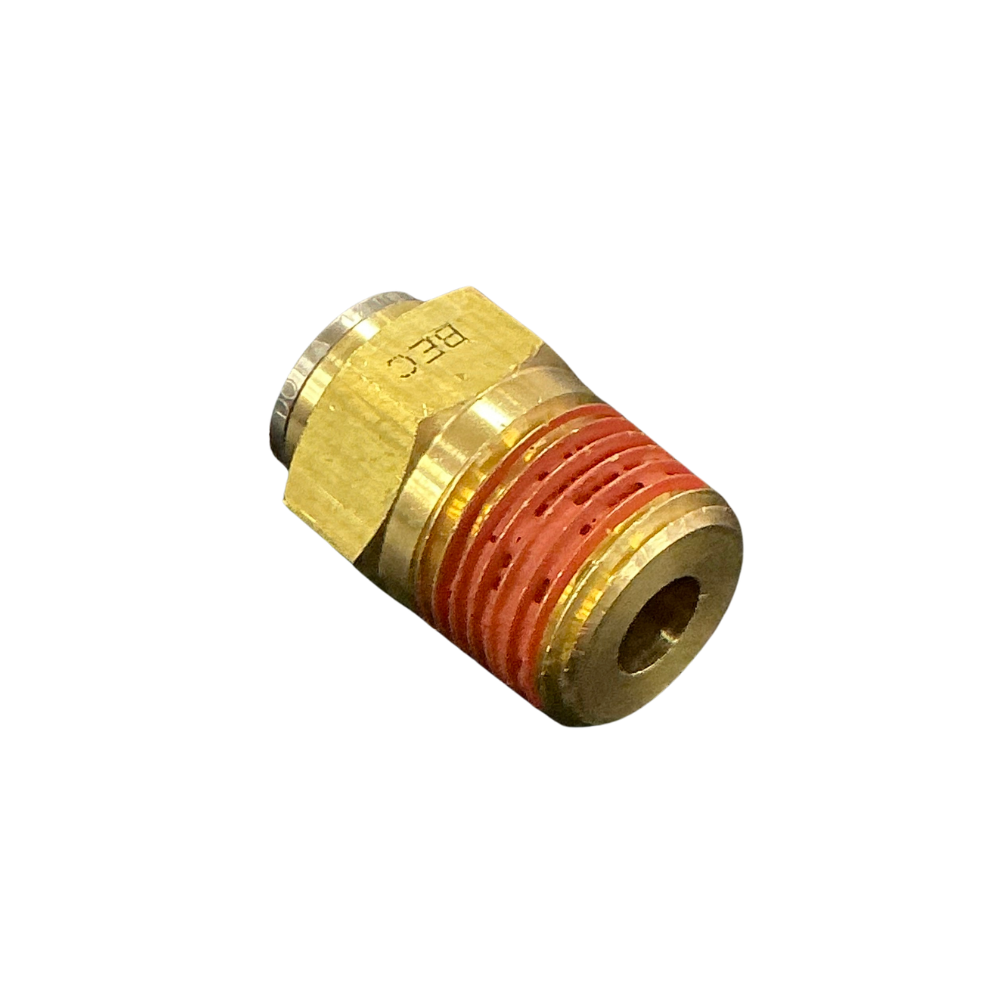

The 12mm air brake male connector joins 12mm metric nylon tube to a 1/2 NPT female port in a trailer or heavy-vehicle pneumatic circuit. This straight version provides the larger 1/2in threaded connection while keeping the tube side at 12mm.

Features

• Push-to-connect port suits 12mm outside-diameter air brake tube.
• 1/2 NPT tapered male thread suits a matching female pipe port.
• Factory-applied red thread sealant covers the male connection.
• Release collet allows the air tube to be disconnected for servicing.

Specifications and Materials

The fitting combines a brass hex body, internal tube support, gripping collet and pneumatic seal in one straight connector. The push-in end accepts the tube without a separate nut, olive, ferrule or compression sleeve.

Part number: 88-M003-12N08.

See the manufacturer technical guide for the 12mm x 1/2 NPT configuration

Compatibility and Fitment

Confirm the tube measures 12mm across its outside diameter and the receiving component has a 1/2 NPT female port. Do not substitute 1/2in tube, which measures 12.7mm, and do not install the fitting into a 1/2 BSP or straight metric thread. Similar-looking pipe threads can bind or leak when mismatched. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. MDQ68DOT1208, 35-M681208, 35M681208, MAQ68-DOT-12X8, MAQ68DOT12X8, M1868X12X8, F2PMTB12-1/2, F2PMTB1212, 98453030

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the air circuit before removing or installing the connector. Cut the tube square, discard any scored or oval section and push the tube fully through the collet to the internal stop. Tighten through the brass hex without forcing the tapered thread, then restore pressure gradually and leak-test the tube and threaded connections.

Trailer Applications

Workshops fit this connector where a 12mm metric air line terminates at a larger 1/2 NPT port. Typical locations include air reservoirs, pneumatic manifolds, brake-system components, suspension controls and auxiliary trailer air equipment.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies matching metric tube fittings and imperial threaded connectors for trailer pneumatic repairs. If the existing fitting is difficult to identify, send a clear photo and confirm the tube outside diameter, thread diameter and whether the port uses NPT, BSP or metric thread.
