Description

Overview

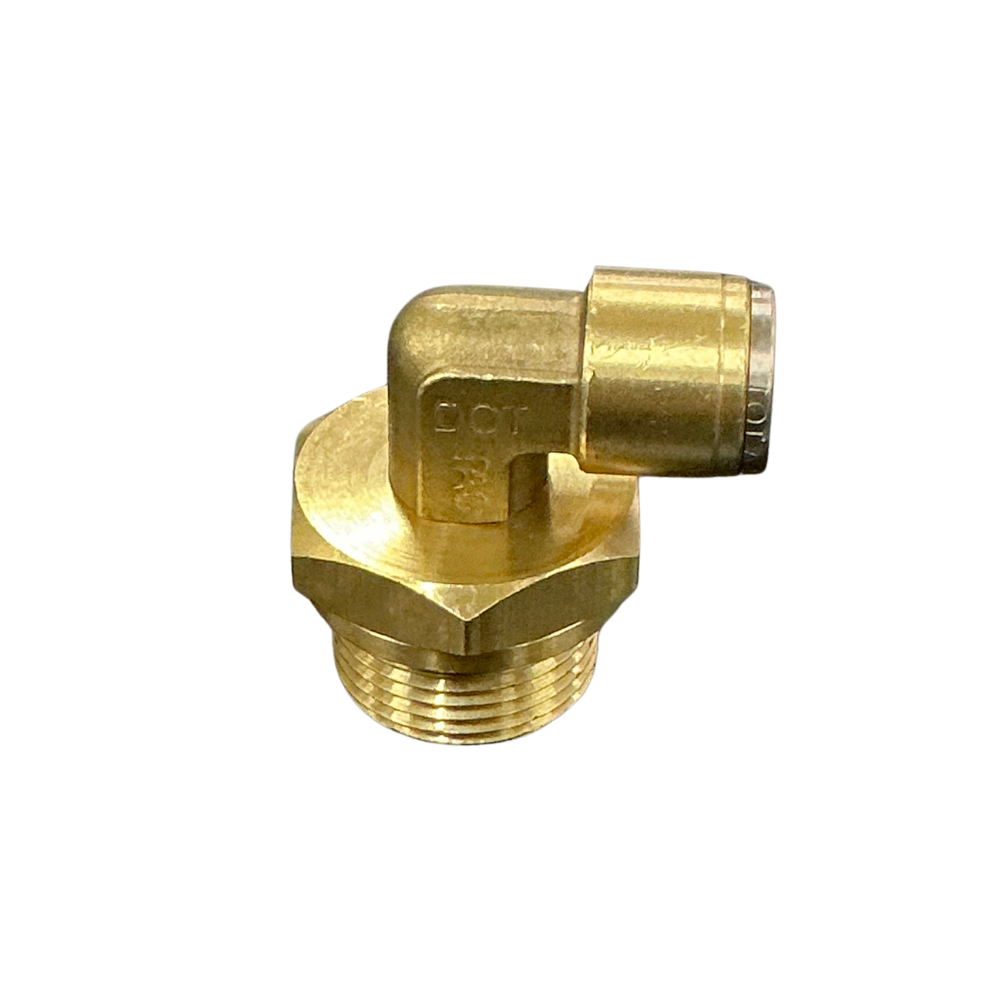

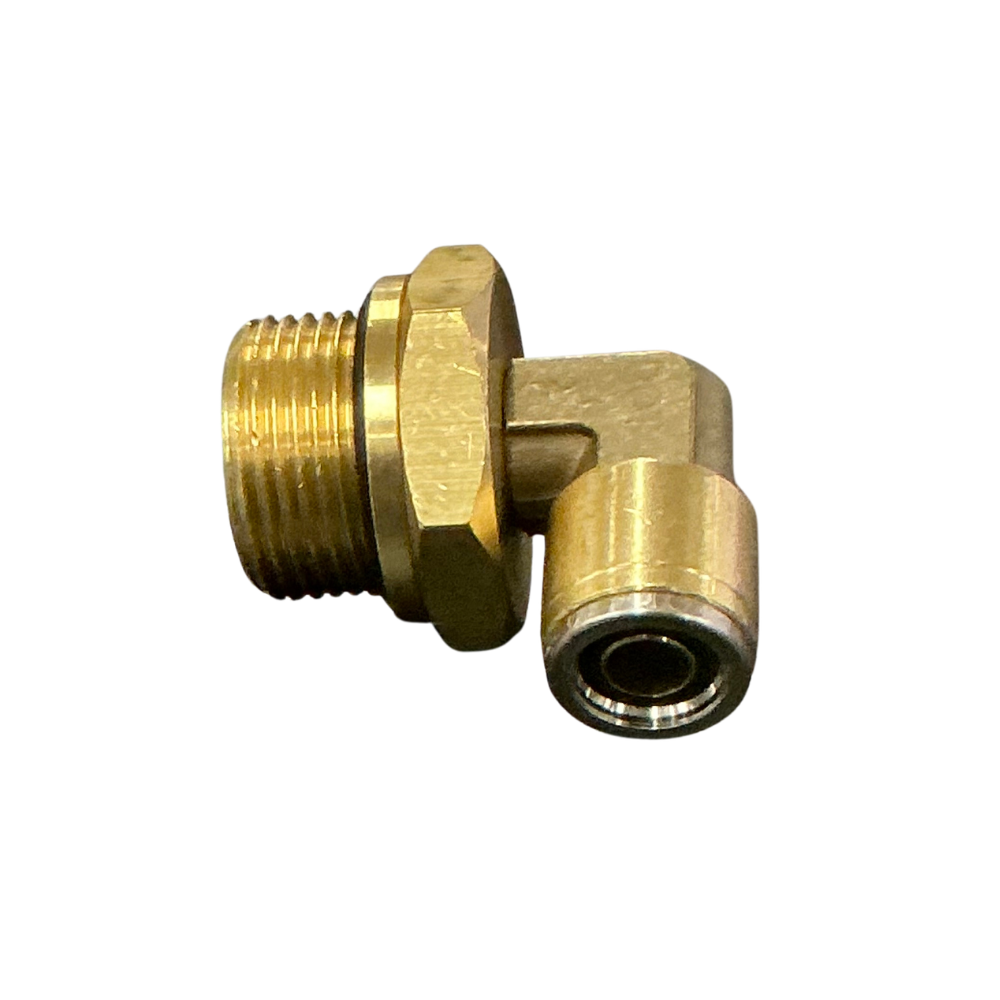

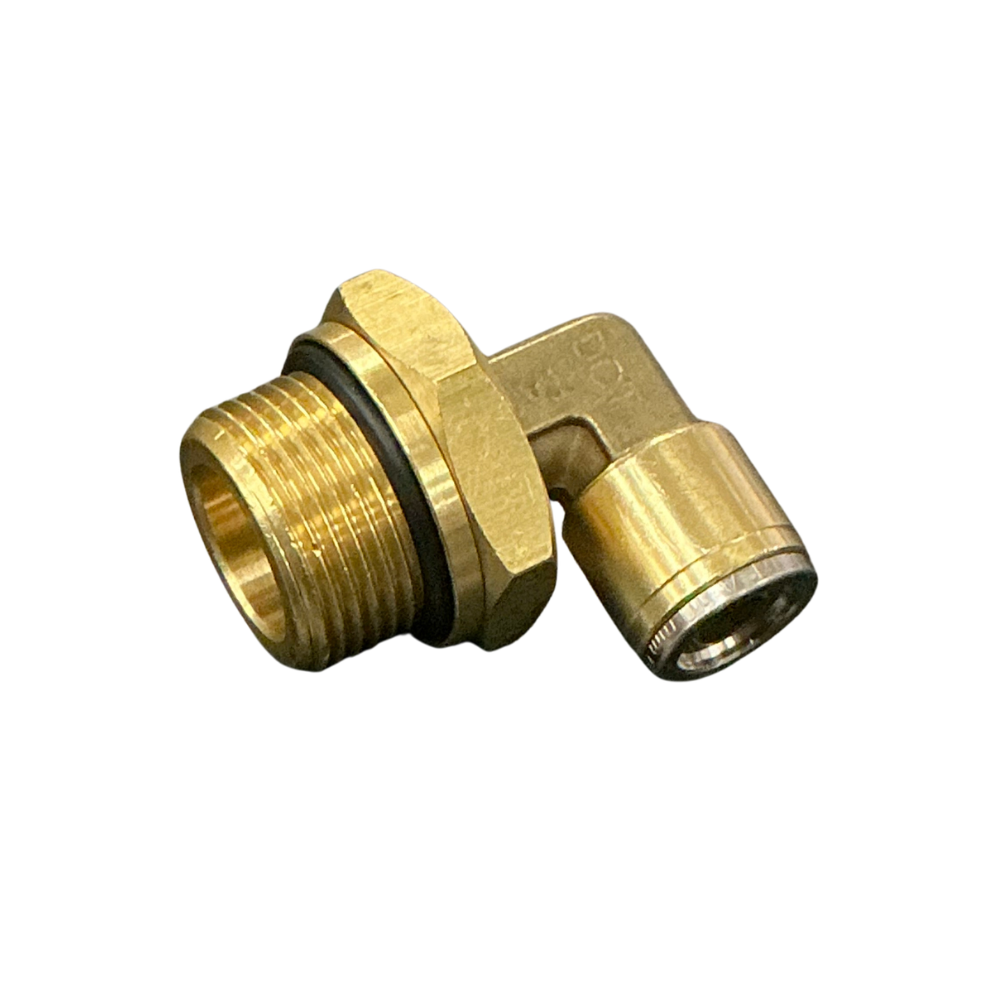

The 10mm x M22 swivel male elbow joins 10mm metric nylon tube to an M22x1.5 female port and turns the air line through 90 degrees. Its swivel body lets the tube face the required direction after tightening, which helps around valves, reservoirs and manifolds with limited clearance.

Features

• Push-to-connect collet accepts 10mm outside-diameter air brake tube.
• M22x1.5 male thread suits a matching metric female port.
• Swivel body avoids forcing a tight bend into the tube.
• Includes the sealing washer and O-ring on the metric thread.

Specifications and Materials

The brass body uses an NBR O-ring seal. The equivalent fitting family carries a maximum working pressure of 150 PSI and a temperature range of -40°F to 220°F. Depress the collet to release the tube during servicing.

Part number: 88-M005S-10M22.

Manufacturer technical specifications

Compatibility and Fitment

Confirm the tube measures 10mm outside diameter and the receiving port has an M22x1.5 metric thread. Do not substitute another M22 thread type or pitch. Also allow clearance for the elbow and tube route. The 10mm x M22 swivel male elbow needs clean tube cut square and pushed fully through the collet seal.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. MDQ69DOTS10M22, 35-MMS691022, 35MMS691022, MAQ69-DOTS-10XM22, MAQ69DOTS10XM22, M1869X10XM22S, 97452158

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the circuit before removal. Inspect the tube, collet, washer, O-ring and female port for damage. Then leak-test the joint after restoring pressure. Keep dirt and excess sealant away from the air passage and gripping components.

Trailer Applications

Trailer workshops fit this elbow where a 10mm air brake, air suspension or auxiliary pneumatic line must turn directly from an M22 port. Typical connection points include air tanks, control valves and compact manifolds.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies metric air fittings, nylon tube, unions and adaptors for trailer pneumatic repairs. If the old elbow is difficult to identify, send a photo and confirm the tube diameter, thread pitch and available clearance.

Browse more Air Fittings
